COP8SGE7 Series

Catalog

MCU 8-BIT COP8 CISC 8KB EPROM 3.3V/5V 28-PIN SOIC TUBE

Part	Program Memory Type	Number of I/O	Core Size	Core Processor	Package / Case	Package / Case [x]	Package / Case [y]	Peripherals	Speed	Oscillator Type	RAM Size	Connectivity	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Package / Case	Package / Case	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments COP8SGE728M8	OTP	24	8-Bit	COP8	28-SOIC	0.295 in	7.5 mm	POR PWM WDT	15 MHz	Internal	256 x 8	Microwire/Plus (SPI) UART/USART	2.7 V	5.5 V	85 °C	-40 °C	28-SOIC	Surface Mount
Texas Instruments COP8SGE728M8/NOPB	OTP	24	8-Bit	COP8	28-SOIC	0.295 in	7.5 mm	POR PWM WDT	15 MHz	Internal	256 x 8	Microwire/Plus (SPI) UART/USART	2.7 V	5.5 V	85 °C	-40 °C	28-SOIC	Surface Mount
Texas Instruments COP8SGE728N8/NOPB	OTP	24	8-Bit	COP8	28-DIP			POR PWM WDT	15 MHz	Internal	256 x 8	Microwire/Plus (SPI) UART/USART	2.7 V	5.5 V	85 °C	-40 °C	28-PDIP	Through Hole	0.6 in	15.24 mm

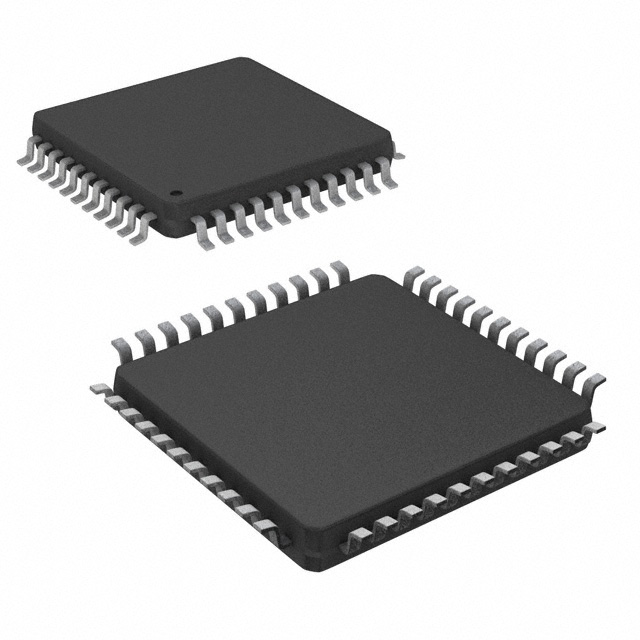

Texas Instruments COP8SGE7VEJ8/NOPB	OTP	40	8-Bit	COP8	44-LQFP			POR PWM WDT	15 MHz	Internal	256 x 8	Microwire/Plus (SPI) UART/USART	2.7 V	5.5 V	85 °C	-40 °C	44-TQFP (10x10)	Surface Mount

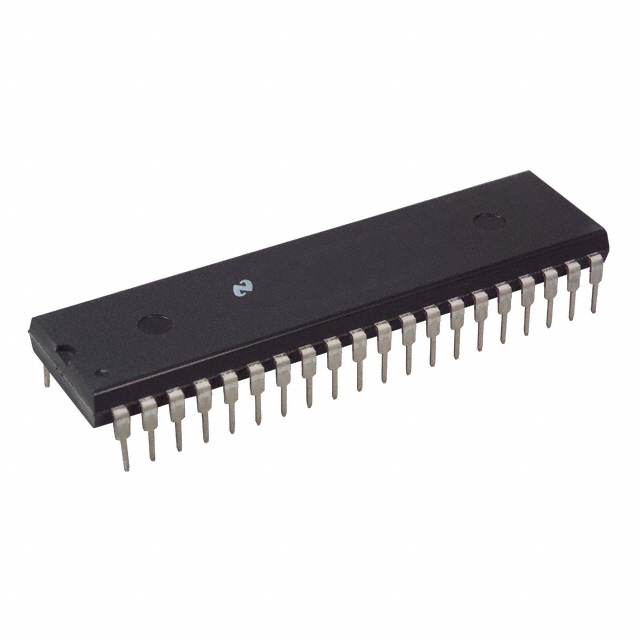

Texas Instruments COP8SGE740N8	OTP	36	8-Bit	COP8	40-DIP			POR PWM WDT	15 MHz	Internal	256 x 8	Microwire/Plus (SPI) UART/USART	2.7 V	5.5 V	85 °C	-40 °C	40-DIP	Through Hole	0.6 in	15.24 mm
Texas Instruments COP8SGE744V8/NOPB	OTP	40	8-Bit	COP8	44-LCC (J-Lead)			POR PWM WDT	15 MHz	Internal	256 x 8	Microwire/Plus (SPI) UART/USART	2.7 V	5.5 V	85 °C	-40 °C	44-PLCC	Surface Mount			16.58	16.58
Texas Instruments COP8SGE728N8	OTP	24	8-Bit	COP8	28-DIP			POR PWM WDT	15 MHz	Internal	256 x 8	Microwire/Plus (SPI) UART/USART	2.7 V	5.5 V	85 °C	-40 °C	28-PDIP	Through Hole	0.6 in	15.24 mm
