110-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN IC SKT DBL
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material - Post | Type [custom] | Type [custom] | Type | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Mating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Housing Material | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) | Features | Type | Type | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | 15.24 mm | 0.6 in | DIP | Surface Mount | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 32 | Open Frame | |||||
Mill-Max Manufacturing Corp. | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | DIP | Through Hole | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 20 | Decoupling Capacitor Open Frame | 7.62 mm | 0.3 in | |||||

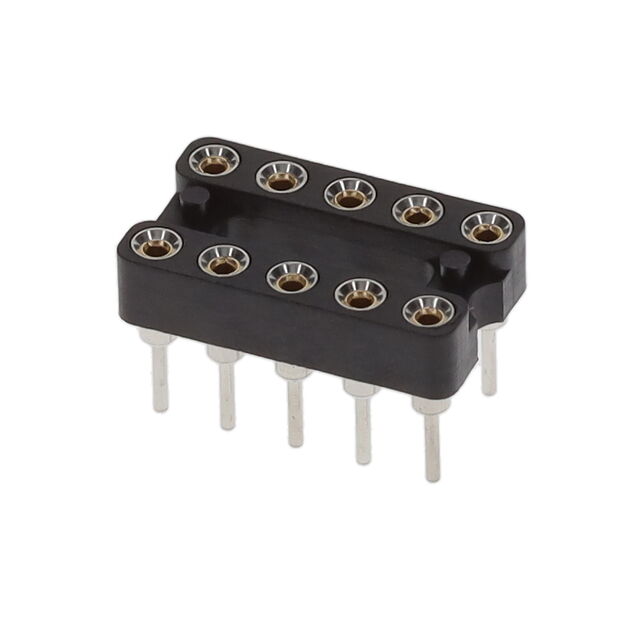

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | DIP | Through Hole | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 10 | Open Frame | 5.08 mm | 5 | 2 | ||||||
Mill-Max Manufacturing Corp. | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | DIP | Surface Mount | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | Open Frame | 22.86 mm | 0.9 in | 25 | 2 | 50 | |||

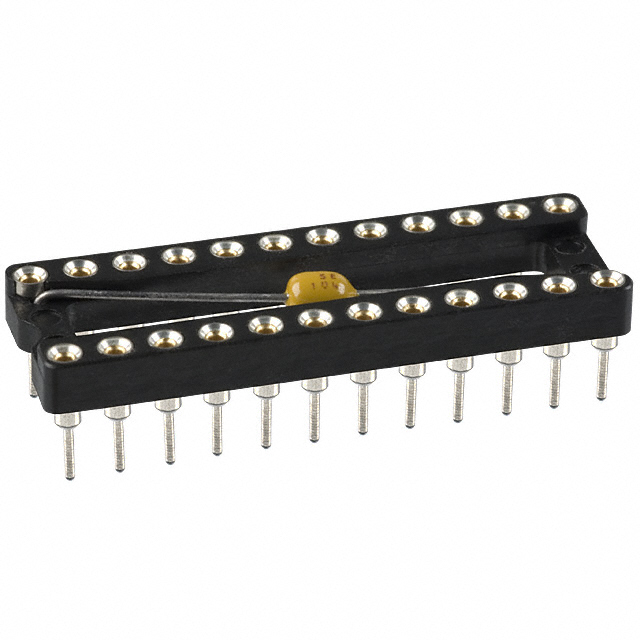

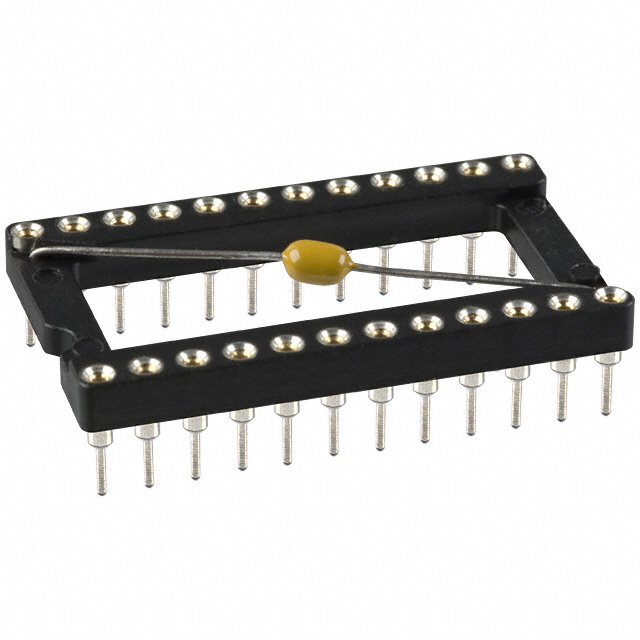

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | 15.24 mm | 0.6 in | DIP | Through Hole | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 24 | Decoupling Capacitor Open Frame | 2 | 12 | |||||
Mill-Max Manufacturing Corp. | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | 15.24 mm | 0.6 in | DIP | Through Hole | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 40 | ||||||
Mill-Max Manufacturing Corp. | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | 15.24 mm | 0.6 in | DIP | Through Hole | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 32 | ||||||

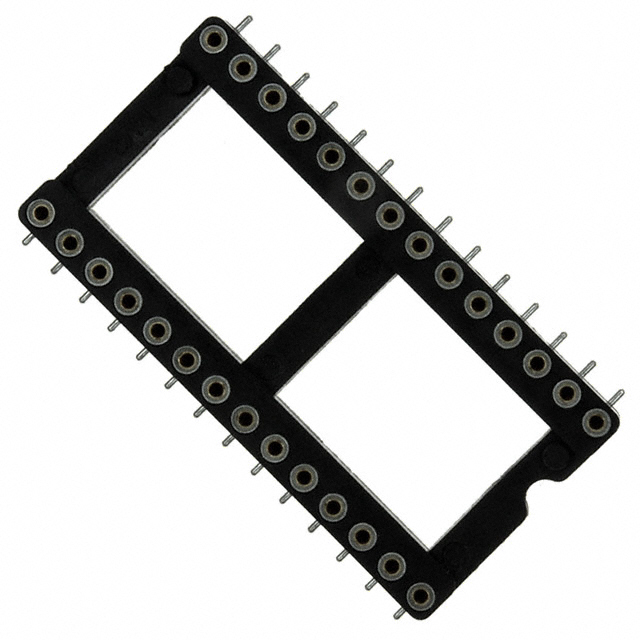

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | DIP | Surface Mount | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 28 | Open Frame | 0.4 in | ||||||||
Mill-Max Manufacturing Corp. | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | DIP | Through Hole | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 6 | Open Frame | 7.62 mm | 0.3 in | 3 positions or pins | 2 | |||
Mill-Max Manufacturing Corp. | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | -55 C | 125 °C | Solder | Brass Alloy | DIP | Through Hole | 0.76 Ám | 30 Áin | Tin-Lead | 200 µin | 5.08 µm | Beryllium Copper | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 in | 2.54 mm | 22 | 0.4 in | 11 | 2 |
