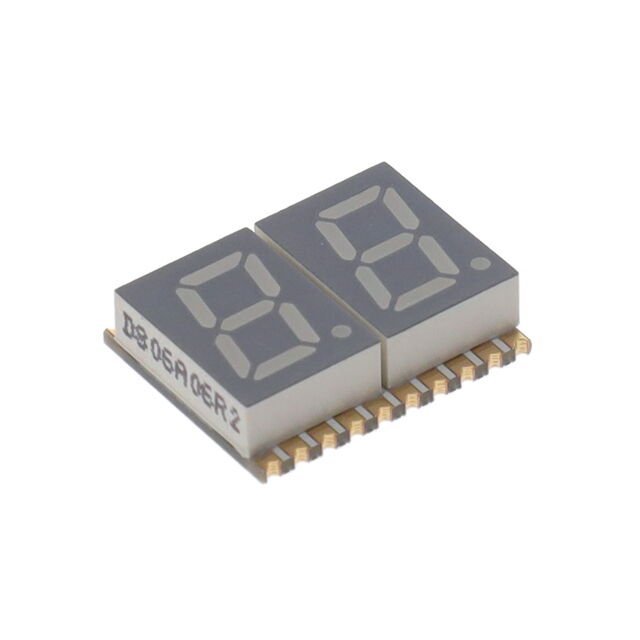

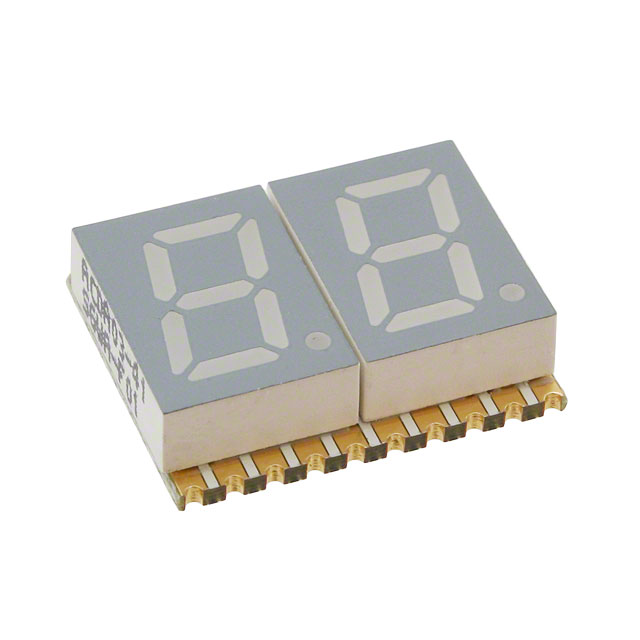

ACDA03 Series
Manufacturer: Kingbright
Beta
⌘K
DISPLAY 7-SEG 0.3" DBL ORG 20SMD
| Part | Display Type | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Current - Test | Wavelength - Peak | Power Dissipation (Max) [Max] | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Package / Case | Common Pin | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Color | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 7-Segment | 2.1 V | 46 mcd | 20 mA | 610 nm | 75 mw | 7.62 mm | 0.3 in | 2 | 20-SMD No Lead | Common Anode | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | ||
 Kingbright | 7-Segment | 2.1 V | 12 mcd | 20 mA | 75 mw | 7.62 mm | 0.3 in | 2 | 20-SMD No Lead | Common Anode | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | Green | ||
Kingbright | 7-Segment | 2.2 V | 3.5 mcd | 20 mA | 565 nm | 62.5 mW | 7.62 mm | 0.3 in | 2 | 20-SMD No Lead | Common Anode | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | Green | |
 Kingbright | 7-Segment | 3.2 V | 6 mcd | 20 mA | 468 nm | 7.62 mm | 0.3 in | 2 | 20-SMD No Lead | Common Anode | 3.75 mm | 0.472 in | 14.8 mm | 0.583 in | 12 mm | 0.148 in | Blue | 120 mW | |
Kingbright | 7-Segment | 1.85 V | 9.8 mcd | 20 mA | 660 nm | 75 mw | 7.62 mm | 0.3 in | 2 | 20-SMD No Lead | Common Anode | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | Red |
