123I Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 4.1"L X 2.6"W

Part	Weight	Weight	Area (L x W)	Area (L x W)	Material	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Color	Features	Material Flammability Rating	Ratings	Thickness	Thickness	Height [z]	Height [z]

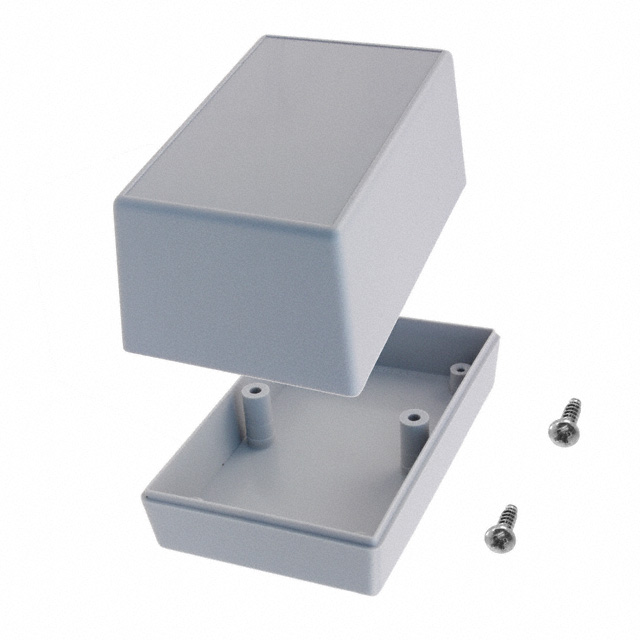

Serpac 123I,GY	0.173 lb	78.47 g	69 cm²	10.7 in²	ABS Plastic	Hand Held Split Sides	2.6 in	104.14 mm	4.1 "	66.04 mm	Box	Gray	PCB Supports	UL94 HB	IP40 NEMA 1	2.54 mm	0.1 in	2.5 in	63.5 mm

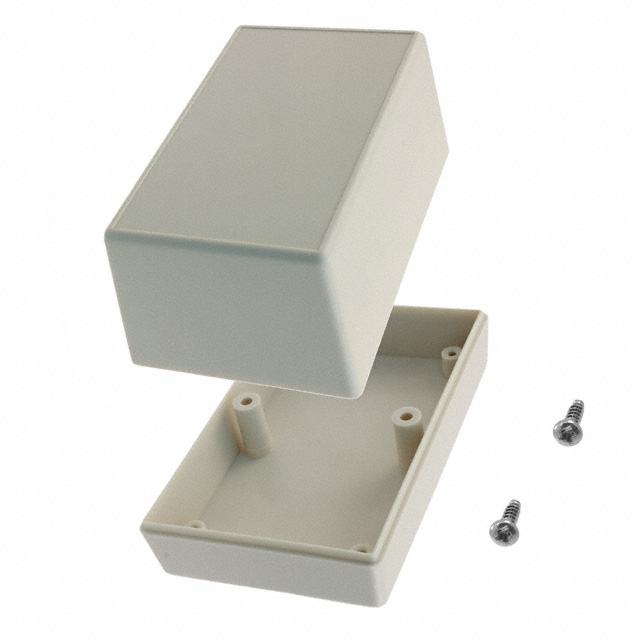

Serpac 123I,AL	0.173 lb	78.47 g	69 cm²	10.7 in²	ABS Plastic	Hand Held Split Sides	2.6 in	104.14 mm	4.1 "	66.04 mm	Box	Almond	PCB Supports	UL94 HB	IP40 NEMA 1	2.54 mm	0.1 in	2.5 in	63.5 mm

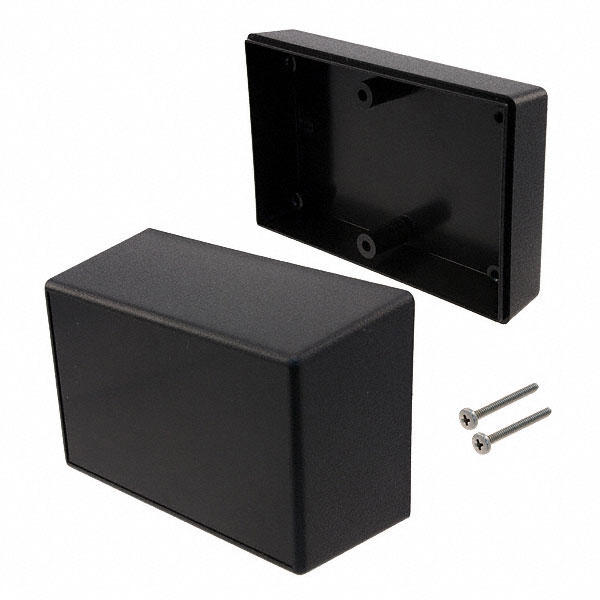

Serpac 123I,BK	0.173 lb	78.47 g	69 cm²	10.7 in²	ABS Plastic	Hand Held Split Sides	2.6 in	104.14 mm	4.1 "	66.04 mm	Box	Black	PCB Supports	UL94 HB	IP40 NEMA 1	2.54 mm	0.1 in	2.5 in	63.5 mm
