M2022SS Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Actuator Material	Electrical Life	Circuit	Features	Mounting Type	Bushing Thread	Illumination	Termination Style	Voltage Rating - DC	Actuator Length [x]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Bushing Thread
NKK Switches M2022SS2W13-BC	Brass Chrome Plated	25000 Steps	DPDT	Red Cap	Through Hole	Unthreaded	Non-Illuminated	PC Pin	30 V	13.5 mm	On-On	85 °C	-30 ░C	125 V	4 A 6 A	Standard Round with Cap
NKK Switches M2022SS1W01-CB	Brass Chrome Plated	25000 Steps	DPDT	White Cap	Panel Mount	1/4-40	Non-Illuminated	Solder Lug	30 V	13.1 mm	On-On	85 °C	-30 ░C	125 V	4 A 6 A	Standard Round with Cap	6.5 mm

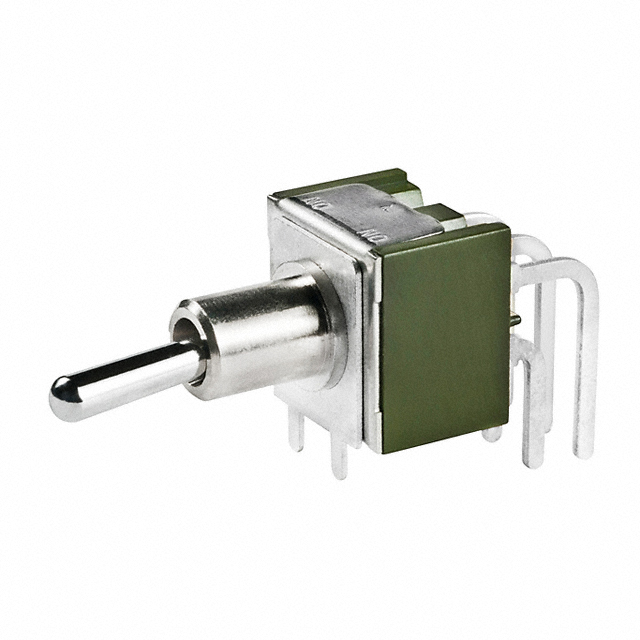

NKK Switches M2022SS2W30	Brass Chrome Plated	25000 Steps	DPDT	Epoxy Sealed Terminals	Right Angle Through Hole	Unthreaded	Non-Illuminated	PC Pin	30 V		On-On	85 °C	-30 ░C	125 V	4 A 6 A	Standard Round	6.5 mm
NKK Switches M2022SS2G13-BA	Brass Chrome Plated	50000 Cycles	DPDT	Black Cap	Through Hole	Unthreaded	Non-Illuminated	PC Pin	28 V	13.5 mm	On-On	85 °C	-30 ░C	28 V	0.4 VA	Standard Round with Cap	6.5 mm
NKK Switches M2022SS1W40-CA	Brass Chrome Plated	25000 Steps	DPDT	Black Cap	Panel Mount Right Angle Vertical	1/4-40	Non-Illuminated	PC Pin	30 V	13.1 mm	On-On	85 °C	-30 ░C	125 V	4 A 6 A	Standard Round with Cap	6.5 mm
NKK Switches M2022SS4G01	Brass Chrome Plated	25000 Steps	DPDT	Epoxy Sealed Terminals	Panel Mount	M6	Non-Illuminated	Solder Lug	28 V		On-On	85 °C	-30 ░C	28 V	0.4 VA	Standard Round	6.5 mm	0.75
NKK Switches M2022SS1G03	Brass Chrome Plated	50000 Cycles	DPDT	Epoxy Sealed Terminals	Panel Mount	1/4-40	Non-Illuminated	PC Pin	28 V		On-On	85 °C	-30 ░C	28 V	0.4 VA	Standard Round	6.5 mm
NKK Switches M2022SS1G01-BC	Brass Chrome Plated	50000 Cycles	DPDT	Red Cap	Panel Mount	1/4-40	Non-Illuminated	Solder Lug	28 V	13.5 mm	On-On	85 °C	-30 ░C	28 V	0.4 VA	Standard Round with Cap	6.5 mm
NKK Switches M2022SS2W13	Brass Chrome Plated	25000 Steps	DPDT	Epoxy Sealed Terminals	Through Hole	Unthreaded	Non-Illuminated	PC Pin	30 V		On-On	85 °C	-30 ░C	125 V	4 A 6 A	Standard Round	6.5 mm
NKK Switches M2022SS1W03/C	Brass Chrome Plated	25000 Steps	DPDT	Epoxy Sealed Terminals	Panel Mount	1/4-40	Non-Illuminated	PC Pin	30 V		On-On	85 °C	-30 ░C	125 V	4 A 6 A	Standard Round	6.5 mm
