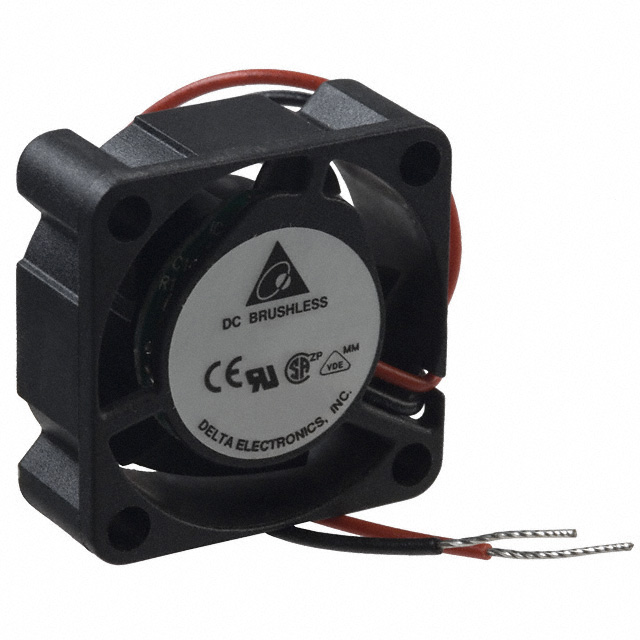

AFB02512 Series

Catalog

FAN AXIAL 25X10MM 12VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Material - Frame	Fan Type	Static Pressure	Static Pressure	Power (Watts)	Width [y]	Weight	Weight	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Termination	Noise	RPM	Voltage - Rated	Air Flow	Air Flow	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Features
Delta Electronics AFB02512HA-A	30000 Hrs	7 V	13.2 VDC	60 mA	Plastic	Plastic	Tubeaxial	0.176 in H2O	43.8 Pa	720 mW	10 mm	10.89 g	0.024 lb	CE CSA UL VDE	25 mm	25 mm	2 Wire Leads	23.5 dB(A)	10000 RPM	12 VDC	0.05 mł/min	1.8 CFM	Ball	70 °C	-10 °C
Delta Electronics AFB02512HHA-AF00	30000 Hrs	7 V	13.2 VDC		Plastic	Plastic	Tubeaxial	0.3 in H2O	74.7 Pa	960 mW	10 mm	10.89 g	0.024 lb	CE CSA UL VDE	25 mm	25 mm	3 Wire Leads	28 dB	13000 RPM	12 VDC	0.067 m³/min	2.4 CFM	Ball	70 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB02512HHA-A	30000 Hrs	7 V	13.2 VDC		Plastic	Plastic	Tubeaxial	0.3 in H2O	74.7 Pa	960 mW	10 mm	10.89 g	0.024 lb	CE CSA UL VDE	25 mm	25 mm	2 Wire Leads	28 dB	13000 RPM	12 VDC	0.067 m³/min	2.4 CFM	Ball	70 °C	-10 °C
