R12317 Series

Catalog

QMA / RIGHT ANGLE PLUG CRIMP TYP

Part	Body Material	Body Finish	Dielectric Material	Center Contact Plating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Impedance	Fastening Type	Center Contact Material	Shield Termination	Cable Group	Connector Type	Contact Termination	Mounting Type	Housing Color	Frequency - Max [Max]	Cable Group	Insertion Loss	Includes
Radiall USA, Inc. R123172000W	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 C	105 ░C	1	50 Ohms	Snap-On	Brass	Crimp	316 RG-188	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz

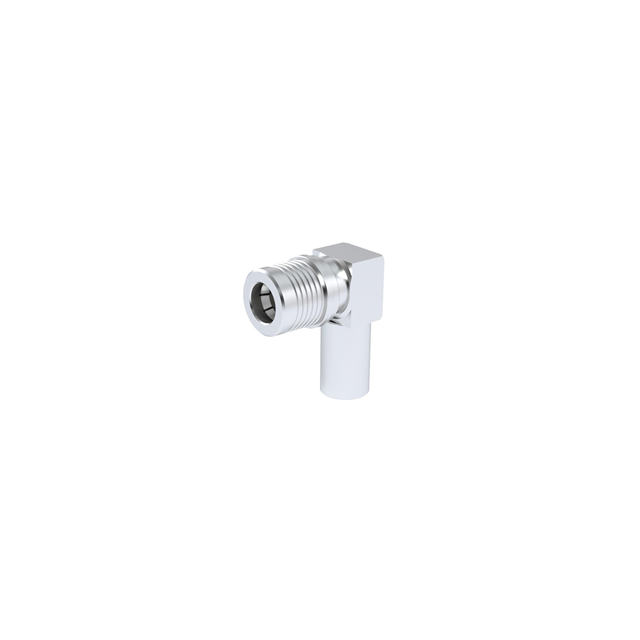

Radiall USA, Inc. R123177100	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 C	105 ░C	1	50 Ohms	Snap-On	Brass	Crimp	LMR-240	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123175000	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 C	105 ░C	1	50 Ohms	Snap-On	Brass	Crimp	RG-58	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz	141
Radiall USA, Inc. R123176000W	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 C	105 ░C	1	50 Ohms	Snap-On	Brass	Crimp	223 400 RG-142	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz		0.25 dB
Radiall USA, Inc. R123175000W	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 C	105 ░C	1	50 Ohms	Snap-On	Brass	Crimp	RG-58	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz	141
Radiall USA, Inc. R123179305
Radiall USA, Inc. R123174000	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 C	105 ░C	1	50 Ohms	Snap-On	Brass	Crimp	RG-316 Double Braid	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123174000W	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 C	105 ░C	1	50 Ohms	Snap-On	Brass	Crimp	RG-316 Double Braid	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123179305W

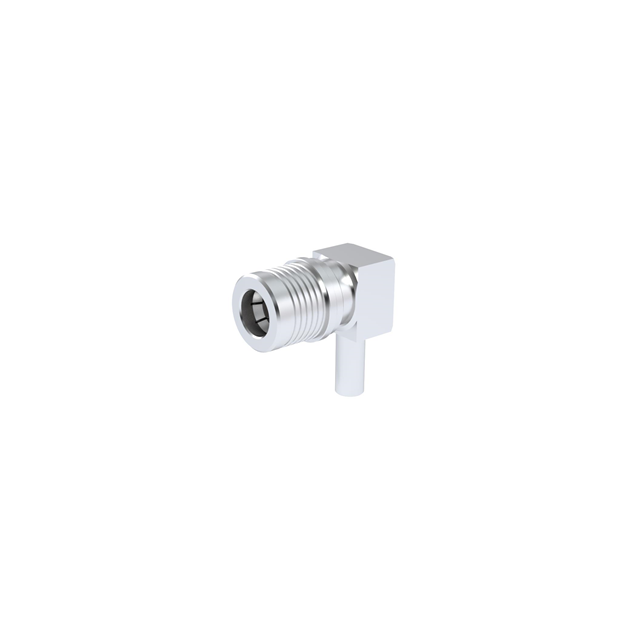

Radiall USA, Inc. R123172000	Brass		Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 C	105 ░C	1	50 Ohms	Threaded	Brass	Crimp	RG-174	Plug Male Pin	Crimp	Free Hanging (In-Line) Right Angle		6000 MHz	316		1 Connector 1 End Cap
