MAX5805 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

ULTRA-SMALL, SINGLE-CHANNEL, 8-/10-/12-BIT BUFFERED OUTPUT VOLTAGE DACS WITH INTERNAL REFERENCE AND I2C INTERFACE

Part	Number of D/A Converters	Reference Type	Package / Case	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Bits	Settling Time	Mounting Type	Architecture	INL/DNL (LSB)	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Digital [Max] [custom]	Voltage - Supply, Digital [Min] [custom]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Data Interface
Analog Devices Inc./Maxim Integrated MAX5805BATB+T	1	External Internal	10-WFDFN Exposed Pad	Voltage - Buffered	125 °C	-40 C	12	6.3 µs	Surface Mount	R-2R	0.2 LSB 0.5 LSB	5.5 V	2.7 V	5.5 V	2.7 V	2	3	10-TDFN	I2C
Analog Devices Inc./Maxim Integrated MAX5805AAUB+	1	External Internal	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	Voltage - Buffered	125 °C	-40 C	12	6.3 µs	Surface Mount	R-2R	0.2 LSB 0.5 LSB	5.5 V	2.7 V	5.5 V	2.7 V			10-uMAX/uSOP	I2C

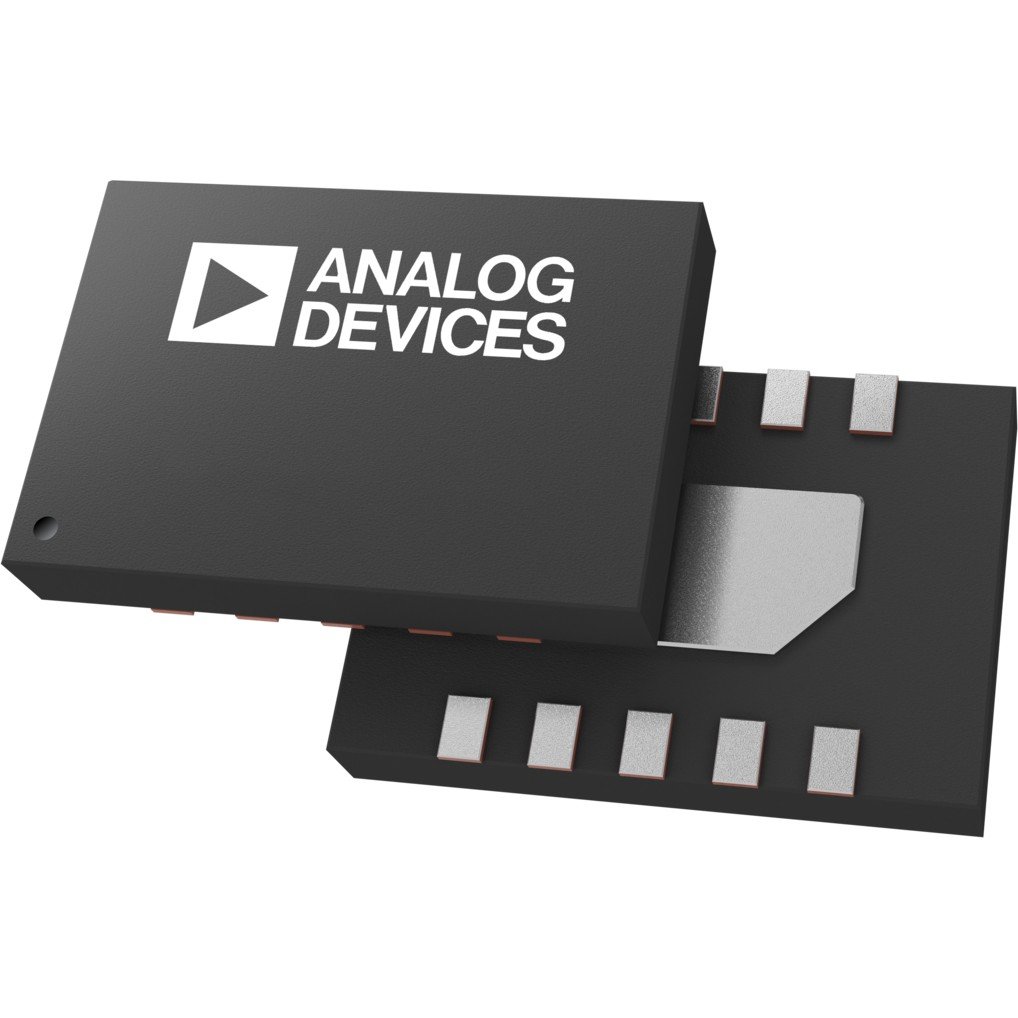

Analog Devices Inc./Maxim Integrated MAX5805BATB+	1	External Internal	10-WFDFN Exposed Pad	Voltage - Buffered	125 °C	-40 C	12	6.3 µs	Surface Mount	R-2R	0.2 LSB 0.5 LSB	5.5 V	2.7 V	5.5 V	2.7 V	2	3	10-TDFN	I2C
Analog Devices Inc./Maxim Integrated MAX5805BAUB+	1	External Internal	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	Voltage - Buffered	125 °C	-40 C	12	6.3 µs	Surface Mount	R-2R	0.2 LSB 0.5 LSB	5.5 V	2.7 V	5.5 V	2.7 V			10-uMAX/uSOP	I2C
Analog Devices Inc./Maxim Integrated MAX5805BAUB+T	1	External Internal	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	Voltage - Buffered	125 °C	-40 C	12	6.3 µs	Surface Mount	R-2R	0.2 LSB 0.5 LSB	5.5 V	2.7 V	5.5 V	2.7 V			10-uMAX/uSOP	I2C
Analog Devices Inc./Maxim Integrated MAX5805AAUB+T	1	External Internal	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	Voltage - Buffered	125 °C	-40 C	12	6.3 µs	Surface Mount	R-2R	0.2 LSB 0.5 LSB	5.5 V	2.7 V	5.5 V	2.7 V			10-uMAX/uSOP	I2C
