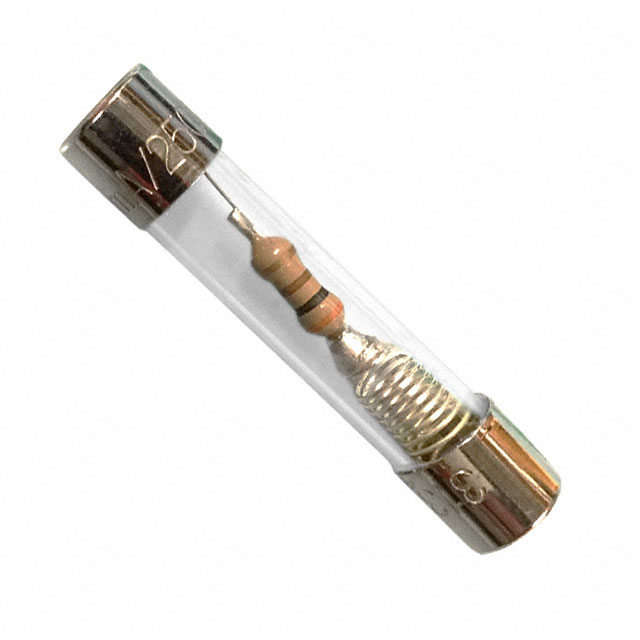

FUSE 250V SB 3AG PB-FREE .500A
Description
AI
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V SB 3AG PB-FREE .500A
FUSE 250V SB 3AG PB-FREE .500A
| Part | DC Cold Resistance | Melting I˛t | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case [y] | Package / Case [x] | Package / Case | Breaking Capacity @ Rated Voltage | Approval Agency | Mounting Type | Current Rating (Amps) | Voltage Rating - AC | Fuse Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1.26 Ohms | 2.55 | 2.55 | -55 C | 125 °C | 0.25 in | 3AB 3AG | 35 A | CE CSA UL | Requires Holder | 0.5 A | 250 V | Cartridge Glass | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Slow Blow | |
 LITTELFUSE | 1.26 Ohms | 2.55 | -55 C | 125 °C | 0.25 in | 3AB 3AG | 35 A | CE CSA UL | Requires Holder | 0.5 A | 250 V | Cartridge Glass | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Slow Blow | ||
LITTELFUSE | 2.55 | -55 C | 125 °C | 0.25 in | 3AB 3AG | 35 A | CE CSA UL | Requires Holder | 0.5 A | 250 V | Cartridge Glass | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Slow Blow |
