305-014 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 14POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Read Out	Card Thickness [Max]	Card Thickness [Min]	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Number of Rows [custom]	Card Type	Color	Contact Material	Contact Type	Number of Positions/Bay/Row	Pitch	Pitch

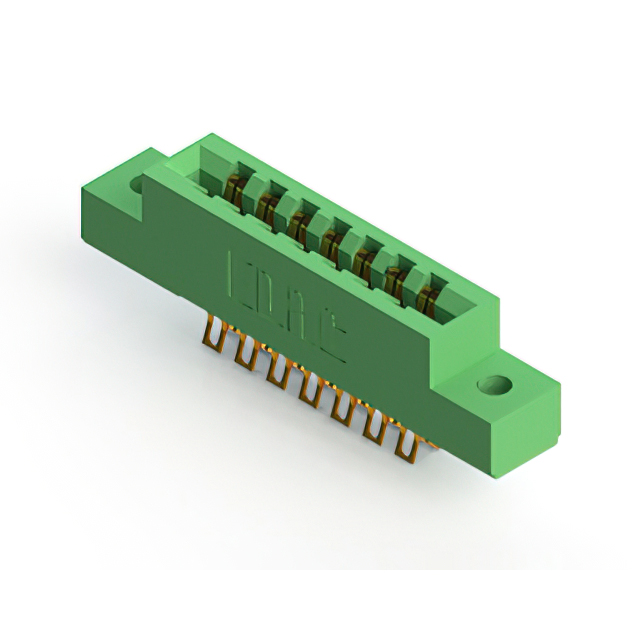

EDAC Inc. 305-014-555-202	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Female	Gold	-40 C	105 ░C	Card Extender	0.25 Ám	10 Áin	Board Edge Straddle Mount	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in

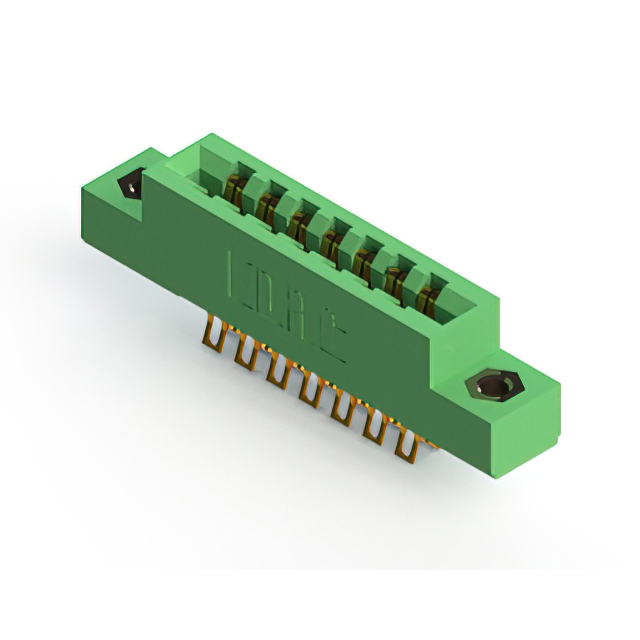

EDAC Inc. 305-014-555-207	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Flush Mount M3 Threaded Insert Top Opening			Female	Gold	-40 C	105 ░C	Card Extender	0.25 Ám	10 Áin	Board Edge Straddle Mount	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in

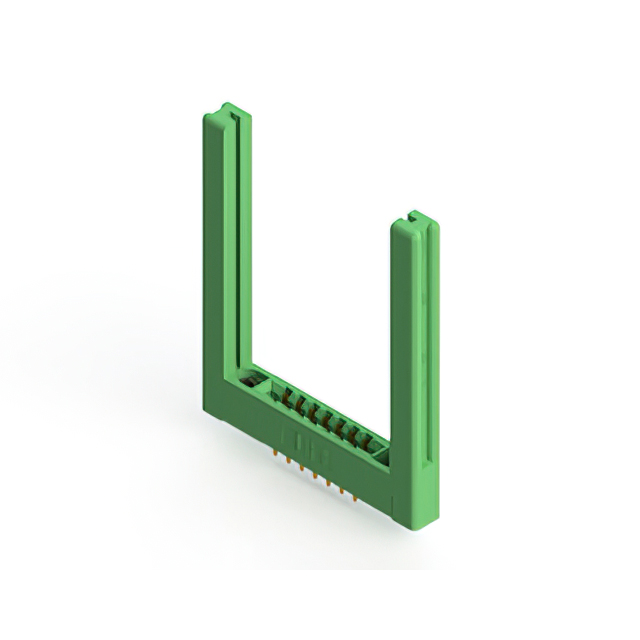

EDAC Inc. 305-014-521-558	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	4-40 Flush Mount Threaded Insert Top Opening			Female	Gold	-40 C	105 ░C		0.25 Ám	10 Áin	Panel Mount Through Hole	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in

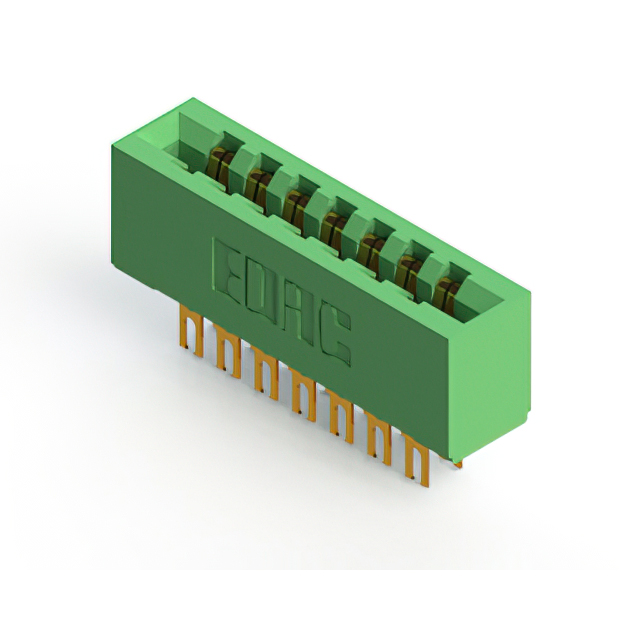

EDAC Inc. 305-014-500-501	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)				Female	Gold	-40 C	105 ░C		0.25 Ám	10 Áin	Free Hanging (In-Line)	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in
EDAC Inc. 305-014-555-502	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Female	Gold	-40 C	105 ░C	Card Extender	0.25 Ám	10 Áin	Board Edge Straddle Mount	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in
EDAC Inc. 305-014-520-503	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Female	Gold	-40 C	105 ░C		0.25 Ám	10 Áin	Panel Mount Through Hole	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in

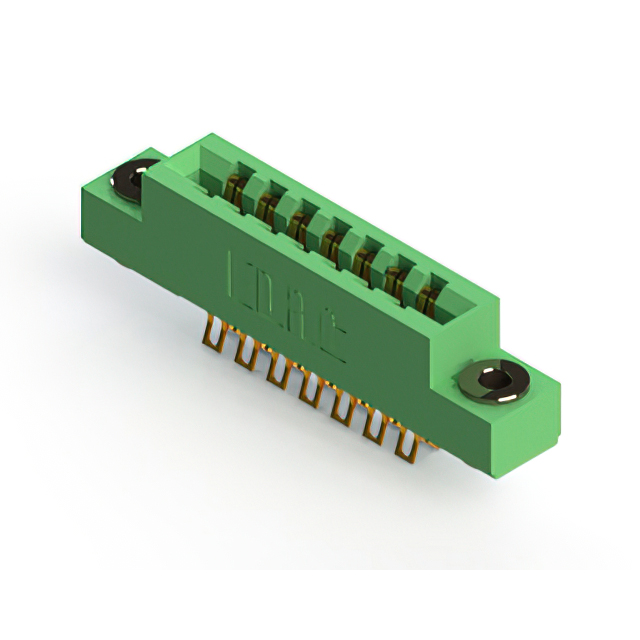

EDAC Inc. 305-014-555-203	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Female	Gold	-40 C	105 ░C	Card Extender	0.25 Ám	10 Áin	Board Edge Straddle Mount	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in

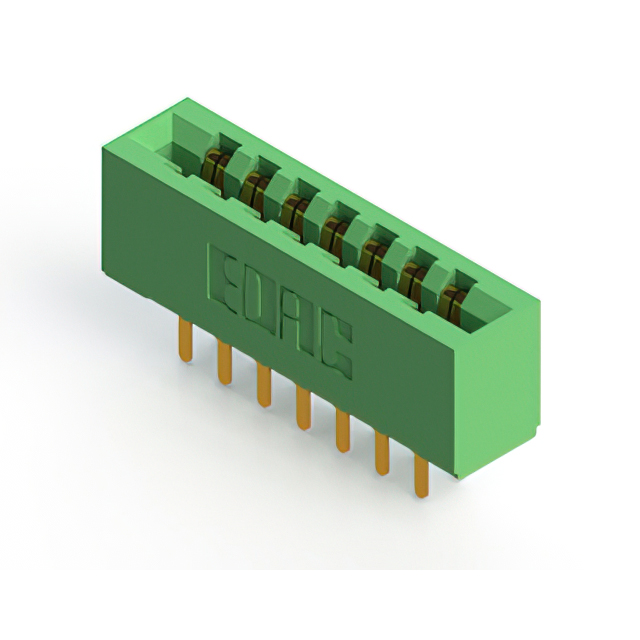

EDAC Inc. 305-014-520-201	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder				Female	Gold	-40 C	105 ░C		0.25 Ám	10 Áin	Through Hole	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in
EDAC Inc. 305-014-500-507	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening			Female	Gold	-40 C	105 ░C		0.25 Ám	10 Áin	Panel Mount	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in

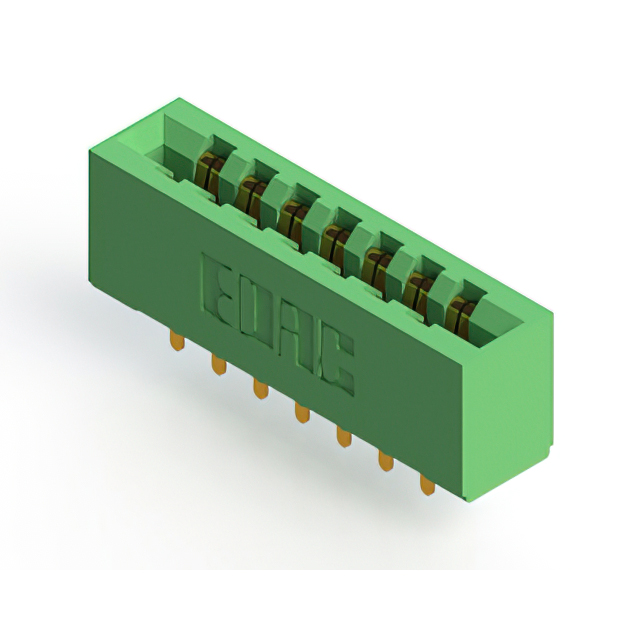

EDAC Inc. 305-014-521-501	2	Polyester Thermoplastic	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder				Female	Gold	-40 C	105 ░C		0.25 Ám	10 Áin	Through Hole	14	2	Non Specified - Dual Edge	Green	Copper Alloy	Semi Bellows	7	3.96 mm	0.156 in
