5120 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

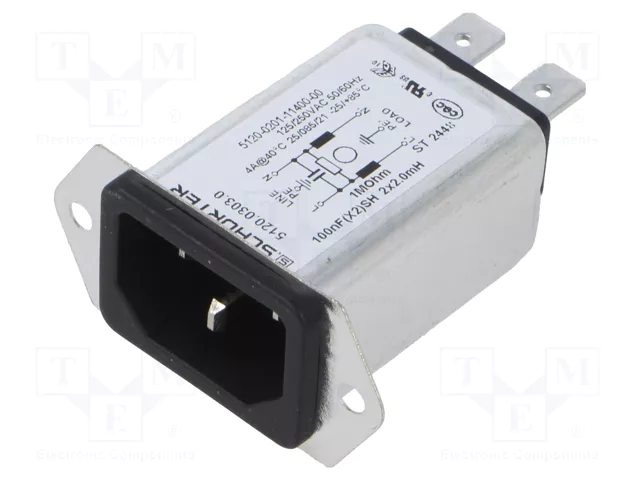

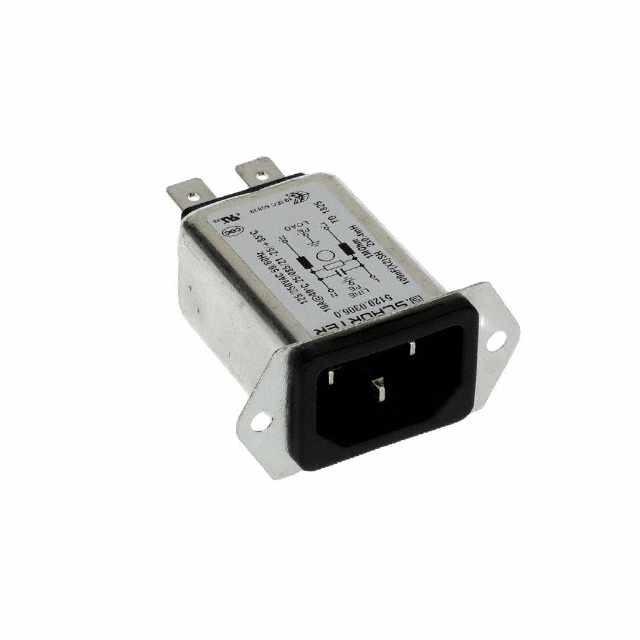

AC POWER ENTRY MODULES SCREW-ON QC 1A MED FRONT/REAR MNT.
| Part | Filter Type | Termination | Termination | Termination | Accomodates a Fuse | Features | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Mounting Type | Material Flammability Rating | Panel Cutout Dimensions | Current Rating - Filter | Ingress Protection | Connector Type | Connector Style | Approval Agency | Panel Thickness | Panel Thickness | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial Medical | 6.3 mm | Quick Connect | 0.25 " | Shielded | 250 VAC | 1 A | Flange Panel Mount | UL94 V-0 | Variable Size | 1 A | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | |||||||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial | 6.3 mm | Quick Connect | 0.25 " | Shielded | 250 VAC | 10 A | Flange Panel Mount | UL94 V-0 | 10 A | IP40 | Receptacle Male Blades | IEC 320-C14 | CQC cURus ENEC | 8 mm | 0.315 in | 21.5 mm | 40 mm | ||||||
 SCHURTER Inc. | Shielded | UL94 V-0 | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | ||||||||||||||||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial Medical | 6.3 mm | Quick Connect | 0.25 " | Shielded | Panel Mount Snap-In | UL94 V-0 | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | 21.5 mm | 29.4 mm | 0.79 mm | 0.079 " | 0.031 " | 2 mm | |||||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial Medical | 6.3 mm | Quick Connect | 0.25 " | Shielded | 250 VAC | 4 A | Flange Panel Mount | UL94 V-0 | Variable Size | 4 A | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | |||||||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial Medical | 6.3 mm | Quick Connect | 0.25 " | Shielded | 250 VAC | 1 A | Panel Mount Snap-In | UL94 V-0 | 1 A | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | 21.5 mm | 29.4 mm | 0.79 mm | 0.079 " | 0.031 " | 2 mm | ||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial Medical | 6.3 mm | Quick Connect | 0.25 " | Shielded | 250 VAC | 4 A | Flange Panel Mount | UL94 V-0 | Variable Size | 4 A | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | |||||||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial Medical | 6.3 mm | Quick Connect | 0.25 " | Shielded | Flange Panel Mount | UL94 V-0 | Variable Size | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | ||||||||||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial Medical | 6.3 mm | Quick Connect | 0.25 " | Shielded | 250 VAC | 2 A | Flange Panel Mount | UL94 V-0 | Variable Size | 2 A | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | |||||||||
 SCHURTER Inc. | Filtered (EMI RFI) - Commercial | 6.3 mm | Quick Connect | 0.25 " | Bleed Resistor Shielded | 250 VAC | 2 A | Panel Mount Snap-In | UL94 V-0 | 2 A | IP40 | Receptacle Male Blades | IEC 320-C14 | CCC cULus ENEC | 21.5 mm | 29.4 mm | 0.79 mm | 0.079 " | 0.031 " | 2 mm |
