OSTYK42 Series

Catalog

CONN BARRIER STRP 15CIRC 0.325"

Part	Terminal Screw Material	Material Flammability Rating	Terminal Screw Finish	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Barrier Type	Number of Circuits	Wire Gauge [Max]	Wire Gauge [Min]	Top Termination	Terminal Block Type	Voltage Rating	Pitch	Pitch	Number of Wire Entries	Number of Rows	Current Rating (Amps)	Color	Bottom Termination	Number of Circuits [custom]
On Shore Technology Inc. OSTYK42115030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	115 °C	-40 C	Through Hole	2 Wall (Dual)	15	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	15	1	20 A	Black	PC Pin
On Shore Technology Inc. OSTYK42123030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	115 °C	-40 C	Through Hole	2 Wall (Dual)		22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	23	1	20 A	Black	PC Pin	23

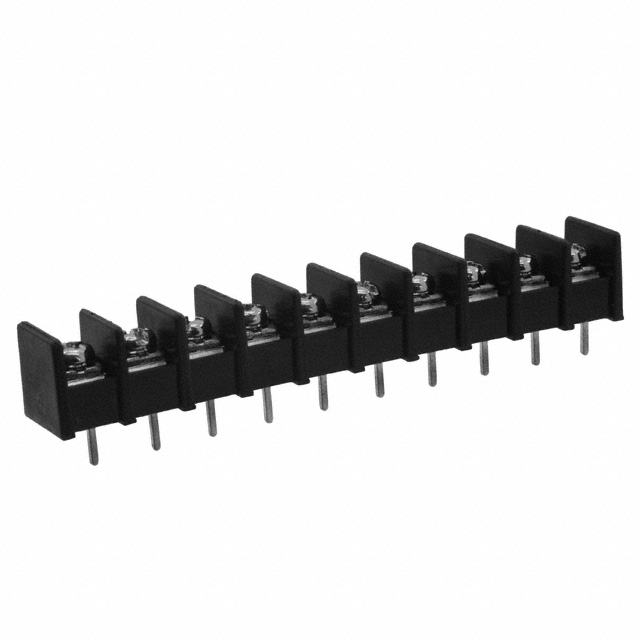

On Shore Technology Inc. OSTYK42110030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C	Through Hole	2 Wall (Dual)	10	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	10	1	20 A	Black	PC Pin

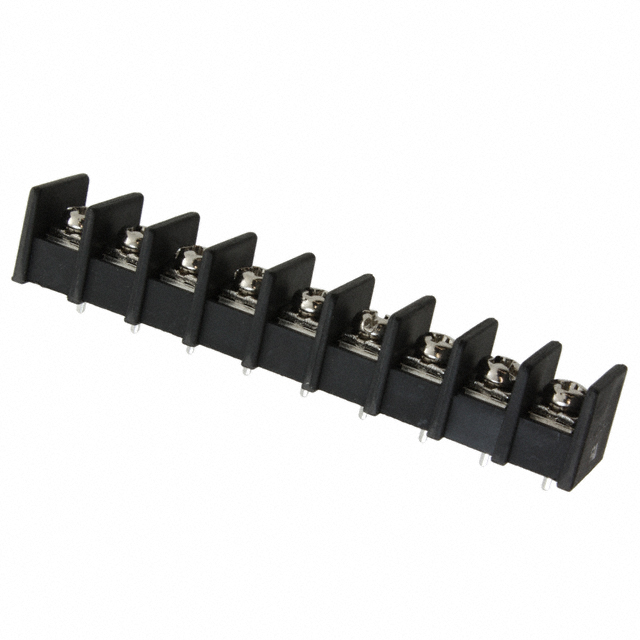

On Shore Technology Inc. OSTYK42109030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C	Through Hole	2 Wall (Dual)		22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	9	1	20 A	Black	PC Pin	9
On Shore Technology Inc. OSTYK42124030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	115 °C	-40 C	Through Hole	2 Wall (Dual)	24	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm		1	20 A	Black	PC Pin
On Shore Technology Inc. OSTYK42117030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	115 °C	-40 C	Through Hole	2 Wall (Dual)	17	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	17	1	20 A	Black	PC Pin

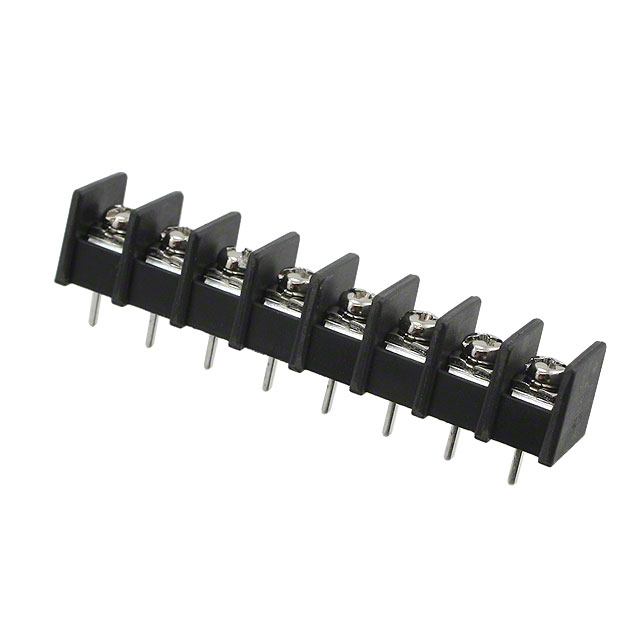

On Shore Technology Inc. OSTYK42108030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C	Through Hole	2 Wall (Dual)	8	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	8	1	20 A	Black	PC Pin
On Shore Technology Inc. OSTYK42114030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	115 °C	-40 C	Through Hole	2 Wall (Dual)	14	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	14	1	20 A	Black	PC Pin
On Shore Technology Inc. OSTYK42112030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	115 °C	-40 C	Through Hole	2 Wall (Dual)	12	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	12	1	20 A	Black	PC Pin
On Shore Technology Inc. OSTYK42111030	Steel	UL94 V-0	Nickel	Nylon 6/6 Polyamide (PA66)	115 °C	-40 C	Through Hole	2 Wall (Dual)	11	22 AWG	12 AWG	Screws with Captive Plate	Barrier Block	300 VDC	0.325 in	8.26 mm	11	1	20 A	Black	PC Pin
