172801 Series
Manufacturer: Molex
Beta
⌘K

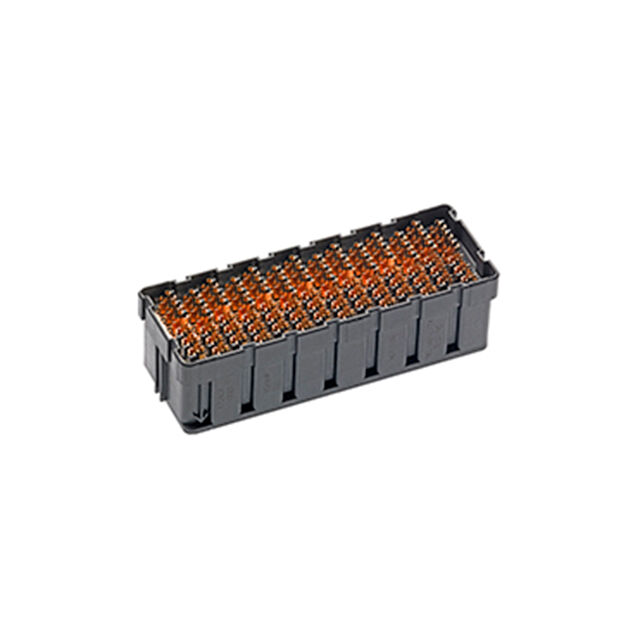

NEOPRESS HIGH-SPEED MEZZANINE PLUG, 3.50MM PITCH, 8X20, 160 TRIADS (480 CIRCUITS), 21.50MM CONNECTOR HEIGHT, 0.76ΜM GOLD (AU) PLATING
| Part | Features | Connector Type | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Mounting Type | Mated Stacking Heights | Contact Finish | Number of Rows | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Board Guide | Differential Pair Array Male | 3.5 mm | 0.138 " | 0.923 in | 23.45 mm | Through Hole | 21.5 mm | Gold | 8 | 480 | 30 Áin | 0.76 Ám | |
 Molex | ||||||||||||||
 Molex | Differential Pair Array Male | 3.5 mm | 0.138 " | 0.608 in | 15.44 mm | Through Hole | Gold | 6 | 30 Áin | 0.76 Ám | 84 | |||
 Molex | Board Guide | Differential Pair Array Male | 3.5 mm | 0.138 " | 0.608 in | 15.44 mm | Through Hole | 13.5 mm | Gold | 6 | 180 | 30 Áin | 0.76 Ám |
