502238 Series

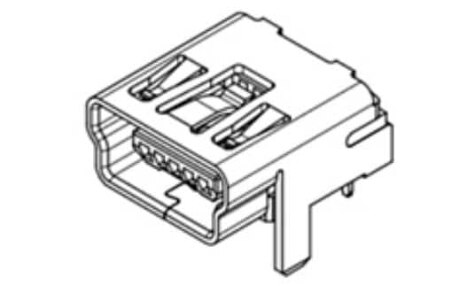

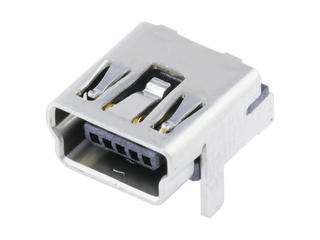

Mini-B Receptacle, Right-Angle, Through Hole, 2.60mm Solder Tabs, without Convex, Lead-Free
Manufacturer: Molex
Catalog
Mini-B Receptacle, Right-Angle, Through Hole, 2.60mm Solder Tabs, without Convex, Lead-Free
Beta
⌘K
Mini-B Receptacle, Right-Angle, Through Hole, 2.60mm Solder Tabs, without Convex, Lead-Free
Mini-B Receptacle, Right-Angle, Through Hole, 2.60mm Solder Tabs, without Convex, Lead-Free
Mini-B Receptacle, Right-Angle, Through Hole, 2.60mm Solder Tabs, without Convex, Lead-Free
| Part | Contact Finish | Insulation Color | Shell/Shielding Material | Material Flammability Rating | Voltage - Rated | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Shielding | Mounting Feature | Termination | Number of Contacts | Gender | Mating Cycles | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | ||||||||||||||||
 Molex | Gold | Black | Copper Alloy | UL94 V-0 | 30 V | USB - mini B | 50 °C | 0 °C | Right Angle Through Hole | Shielded | Horizontal | Solder | 5 | Receptacle | 5000 | 1 |
