R12841 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

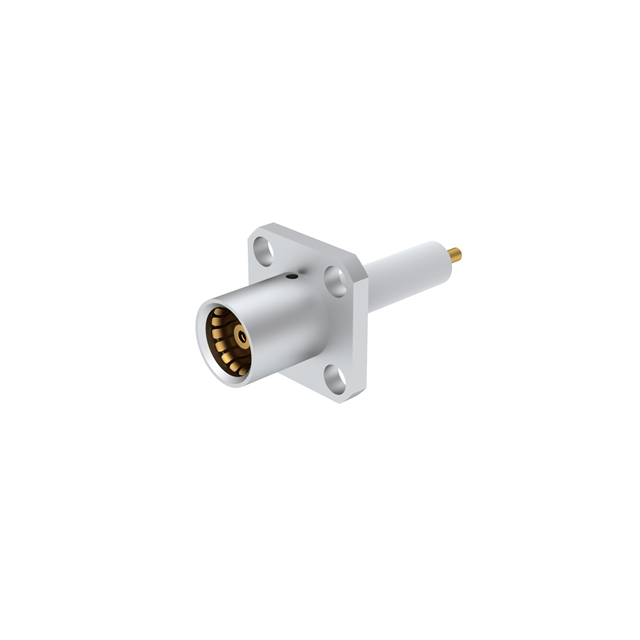

BMA / SQUARE FLANGE JACK RECEPTA
| Part | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Mating Cycles | Voltage Rating | Center Contact Material | Mounting Type | Connector Style | Mounting Feature | Shield Termination | Contact Termination | Connector Type | Frequency - Max [Max] | Impedance | Number of Ports | Fastening Type | Features | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Stainless Steel | Polytetrafluoroethylene (PTFE) | 1000 | 500 V | Beryllium Copper | Panel Mount Through Hole | BMA | Flange | Solder | Solder | Female Socket Jack | 22 GHz | 50 Ohms | 1 | Snap-On | Extended Insulation | Silver |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Stainless Steel | Polytetrafluoroethylene (PTFE) | 1000 | 500 V | Beryllium Copper | Panel Mount Through Hole | BMA | Flange | Solder | Solder | Female Socket Jack | 22 GHz | 50 Ohms | 1 | Snap-On | Extended Insulation | Silver |
