H7BX-A Series

Catalog

COUNTER LCD 6 CHAR 24V PANEL MT

Part	Display Characters - Height	Display Characters - Height	Operating Mode	Display Type	Termination Style	Output Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Input Type	Type	Ingress Protection	Reset	Count Rate	Number of Characters Per Row	Number of Characters Per Row	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply [Max]	Voltage - Supply	Voltage - Supply [Min]

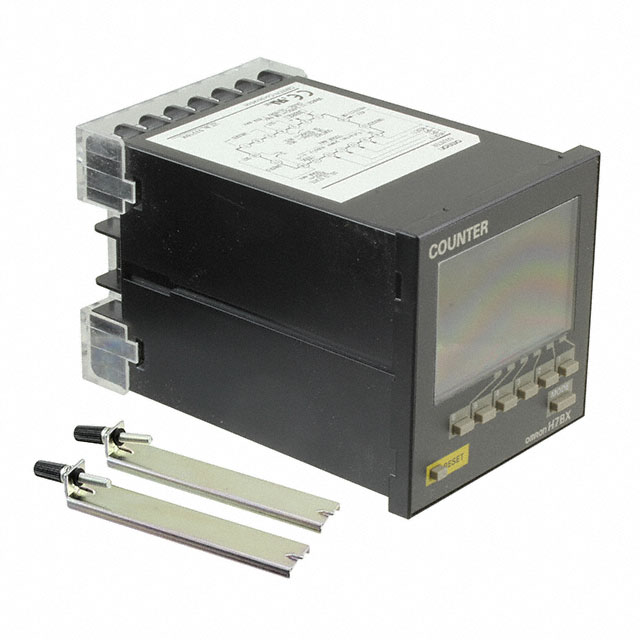

Omron Electronics Inc-EMC Div H7BX-AD1 AC24DC1224	9 mm 13.5 mm	0.354 in 0.531 in	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	Relay Solid State	55 °C	-10 °C	No Voltage Voltage	Preset Totalizer	IP54 - Dust Protected Water Resistant	External Front Panel Programmable	5 kHz 30 Hz	6	6	68 mm	68 mm	24 V	24 VAC	12 V

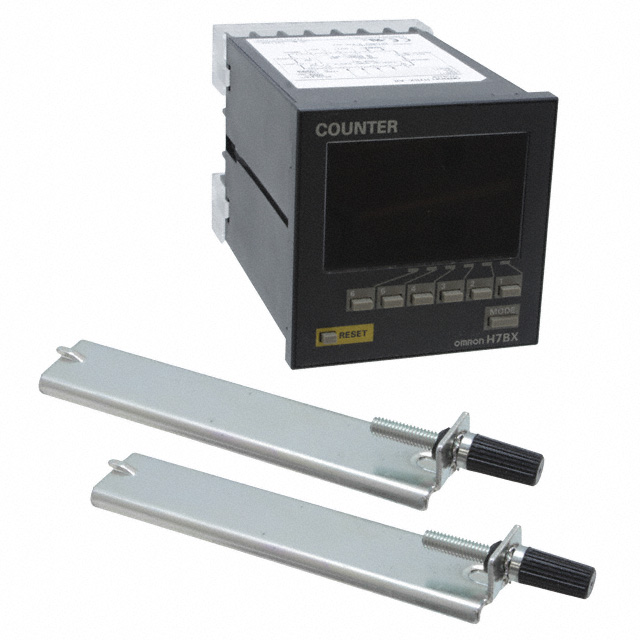

Omron Electronics Inc-EMC Div H7BX-AW AC100-240	9 mm 13.5 mm	0.354 in 0.531 in	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	Relay Solid State	55 °C	-10 °C	No Voltage Voltage	Preset Tachometer Totalizer	IP54 - Dust Protected Water Resistant	External Front Panel Programmable	10 kHz 30 Hz	6	6	68 mm	68 mm	240 VAC		100 VAC

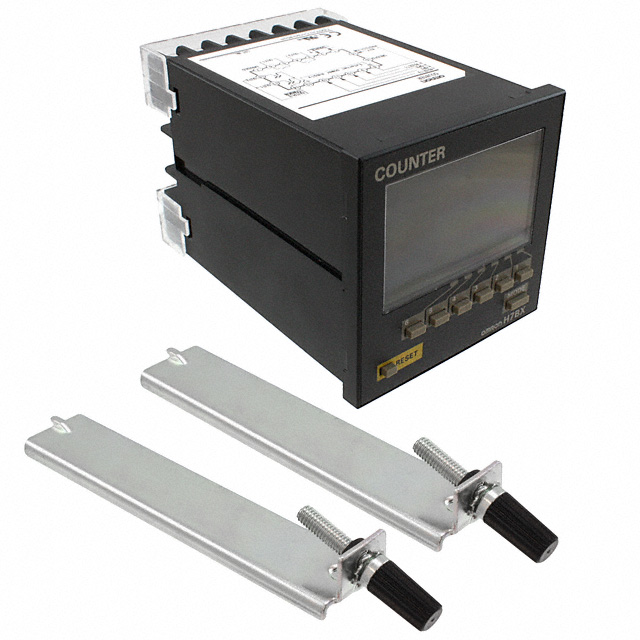

Omron Electronics Inc-EMC Div H7BX-AWD1 AC24/DC12-24	9 mm 13.5 mm	0.354 in 0.531 in	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	Relay Solid State	55 °C	-10 °C	No Voltage Voltage	Preset Tachometer Totalizer	IP54 - Dust Protected Water Resistant	External Front Panel Programmable	10 kHz 30 Hz	6	6	68 mm	68 mm	24 V	24 VAC	12 V
