SDS101 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN D-SUB PLUG 25POS VERT SLDR
| Part | Dielectric Material | Contact Form | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Positions | Contact Finish Thickness | Number of Rows [custom] | Connector Style | Flange Feature | Material Flammability Rating | Mounting Type | Connector Type | Contact Finish | Features | Termination | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

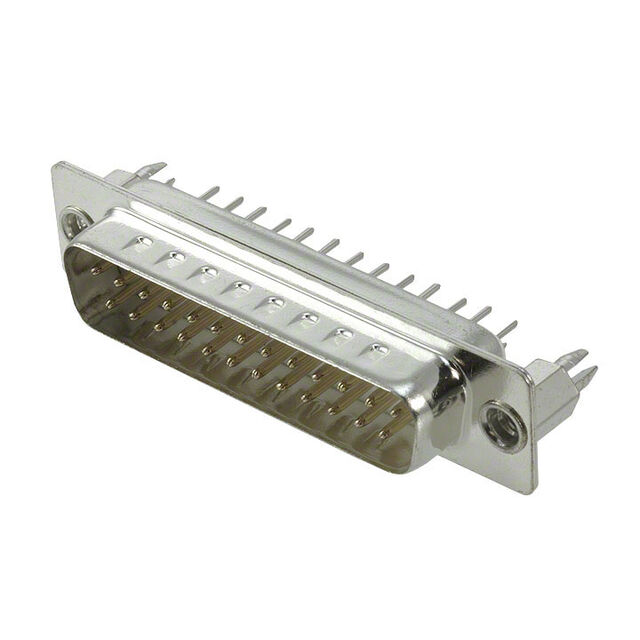

 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | White | Brass | 3 A | B DB | 3 | 25 | Flash | 2 | D-Sub | Board Side (4-40) | UL94 V-0 | Through Hole | Plug Male Pins | Gold | Board Lock Grounding Indents | Solder | Signal | |||||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | Black | Brass | 3 A | 15 | Flash | 2 | D-Sub | Housing/Shell (Unthreaded) | UL94 V-0 | Through Hole | Receptacle Female Sockets | Gold | Solder | Signal | 2 | |||||||

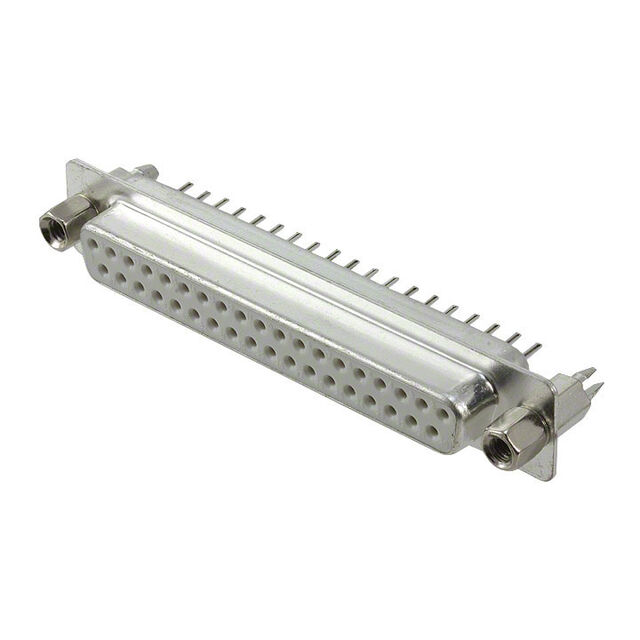

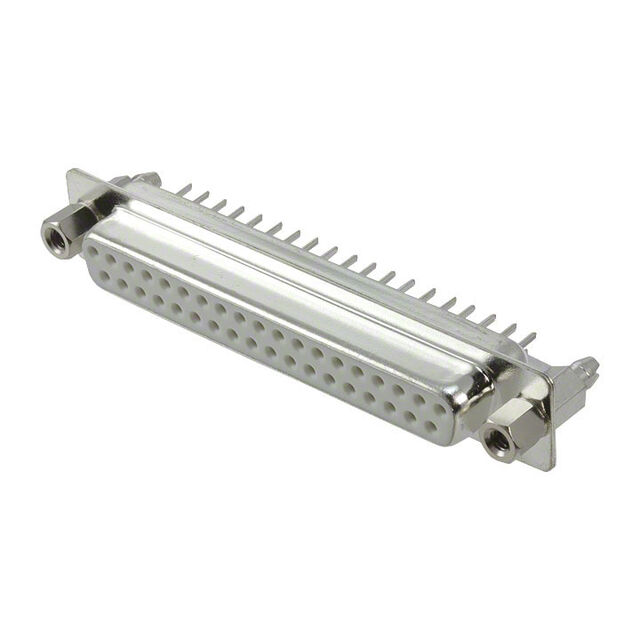

 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | White | Brass | 3 A | DC C | 37 | Flash | 2 | D-Sub | 4-40 Mating Side Female Screwlock | UL94 V-0 | Through Hole | Receptacle Female Sockets | Gold | Board Lock | Solder | Signal | 4 | |||||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | Black | Brass | 3 A | DC C | 37 | Flash | 2 | D-Sub | Housing/Shell (Unthreaded) | UL94 V-0 | Through Hole | Receptacle Female Sockets | Gold | Solder | Signal | 4 | ||||||

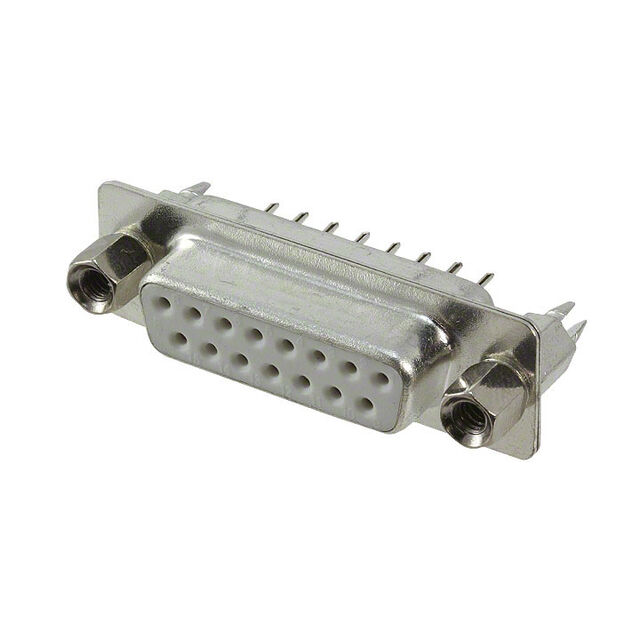

 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | White | Brass | 3 A | 15 | Flash | 2 | D-Sub | 4-40 Mating Side Female Screwlock | UL94 V-0 | Through Hole | Receptacle Female Sockets | Gold | Board Lock | Solder | Signal | 2 | ||||||

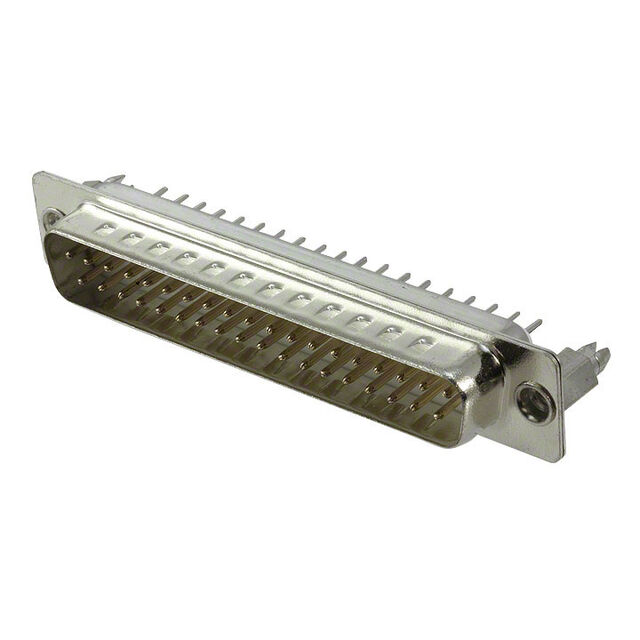

 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | White | Brass | 3 A | DC C | 37 | Flash | 2 | D-Sub | Board Side (4-40) | UL94 V-0 | Through Hole | Plug Male Pins | Gold | Board Lock Grounding Indents | Solder | Signal | 4 | |||||

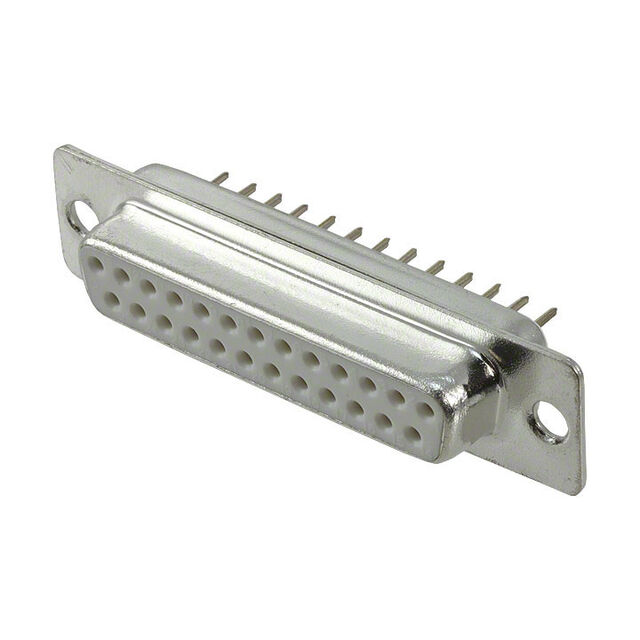

 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | White | Brass | 3 A | B DB | 3 | 25 | Flash | 2 | D-Sub | Housing/Shell (Unthreaded) | UL94 V-0 | Through Hole | Receptacle Female Sockets | Gold | Solder | Signal | ||||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | Black | Brass | 3 A | 50 | Flash | 3 | D-Sub | Housing/Shell (Unthreaded) | UL94 V-0 | Through Hole | Plug Male Pins | Gold | Grounding Indents | Solder | Signal | 5 | D DD | |||||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | White | Brass | 3 A | DC C | 37 | 2 | D-Sub | 4-40 Mating Side Female Screwlock | UL94 V-0 | Through Hole | Receptacle Female Sockets | Gold | Board Lock | Solder | Signal | 4 | 0.38 µm | 15 µin | ||||

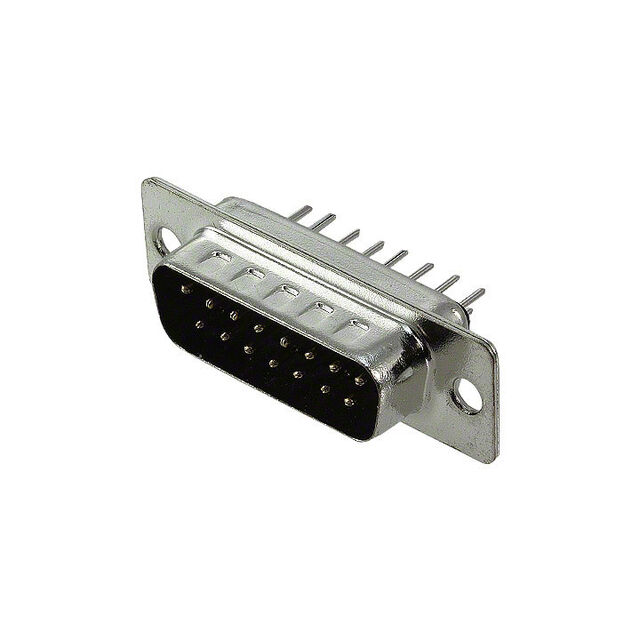

 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | 250 V | -55 C | 105 ░C | Black | Brass | 3 A | 15 | Flash | 2 | D-Sub | Housing/Shell (Unthreaded) | UL94 V-0 | Through Hole | Plug Male Pins | Gold | Grounding Indents | Solder | Signal | 2 |
