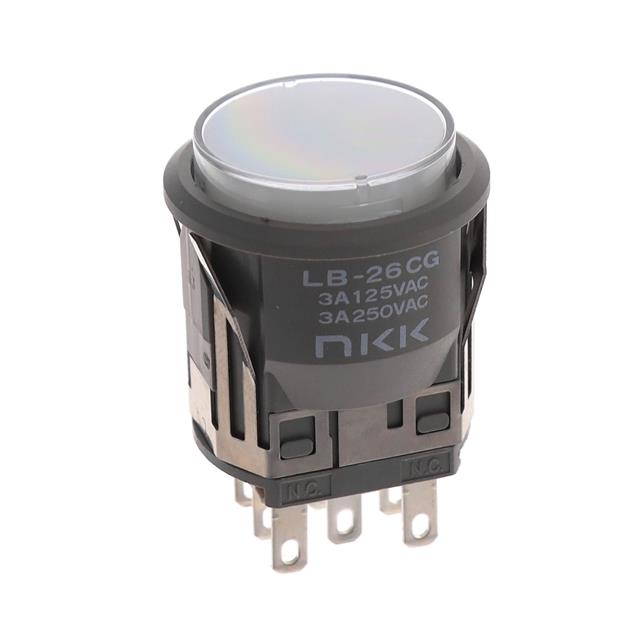

LB26CGW01 Series
Manufacturer: NKK Switches
Beta
⌘K
STANDARD SIZE PANEL SEAL PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Termination Style | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Color - Actuator/Cap | Mounting Type | Actuator Marking | Switch Function | Actuator Type | Voltage Rating - AC | Illumination Voltage (Nominal) | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 200000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | 22 mm | 30 V | Clear | Panel Mount Snap-In | No Marking | On-On | Button Round | 125 V | 2 VDC | 3 A | 50 °C | -25 °C | Amber LED | Illuminated Standard | DPDT |
NKK Switches | 100000 Cycles | 200000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | 22 mm | 30 V | Green | Panel Mount Snap-In | No Marking | On-On | Button Round | 125 V | 3 A | 70 °C | -25 °C | Standard | DPDT | ||
 NKK Switches | 100000 Cycles | 200000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | 22 mm | 30 V | Clear | Panel Mount Snap-In | No Marking | On-On | Button Round | 125 V | 24 V | 3 A | 50 °C | -25 °C | Green LED | Illuminated Standard | DPDT |
