M38910 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

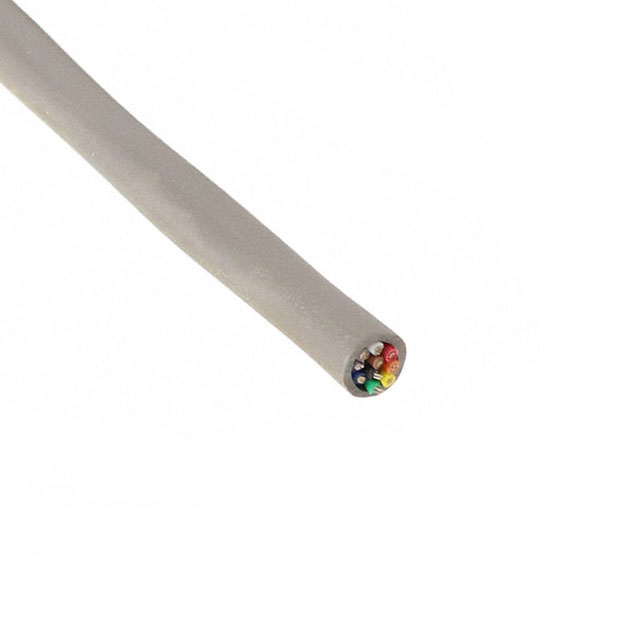

CABLE 10COND 24AWG SLATE
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Voltage | Jacket Color | Length | Length | Wire Gauge | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors [custom] | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 0.243 in | 6.17 mm | 7 | 32 AWG | Multi-Conductor | 300 VDC | Slate | 304.8 m | 1000 ft | 24 AWG | Copper Tinned | 80 °C | -20 ░C | 10 | Poly-Vinyl Chloride (PVC) |
