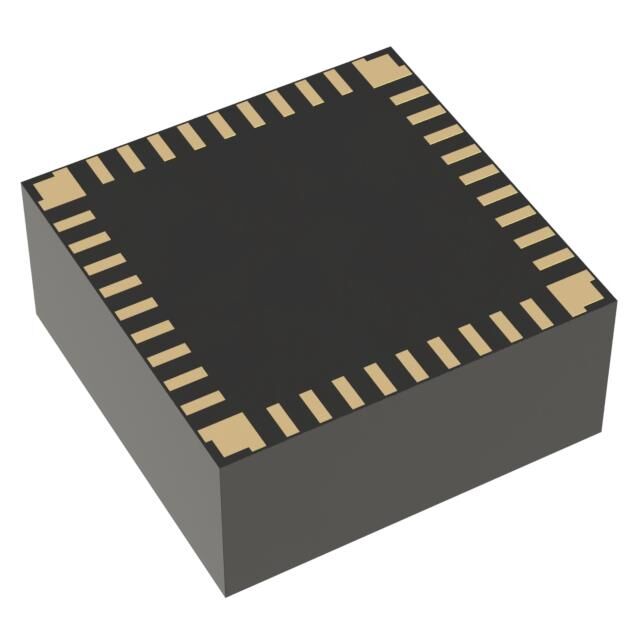

MEZDPD4506 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

DC DC CONVERTER 5V

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Package / Case	Supplier Device Package	Applications	Voltage - Output 1	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features
Monolithic Power Systems Inc. MEZDPD4506AS-84D9	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	9 V	Non-Isolated PoL Module	6 A	1	15 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	5 V
Monolithic Power Systems Inc. MEZDPD4506AS-84EF	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	40 V	Non-Isolated PoL Module	4 A	1	32 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	5 V
Monolithic Power Systems Inc. MEZDPD4506AS-84DD	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	20 V	Non-Isolated PoL Module	6 A	1	28 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	3.3 V
Monolithic Power Systems Inc. MEZDPD4506AS-84D4	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	4 V	Non-Isolated PoL Module	6 A	1	12 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	3.3 V
Monolithic Power Systems Inc. MEZDPD4506AS-84D8	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	9 V	Non-Isolated PoL Module	6 A	1	15 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	3.3 V
Monolithic Power Systems Inc. MEZDPD4506AS-84DC	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	20 V	Non-Isolated PoL Module	6 A	1	28 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	12 V
Monolithic Power Systems Inc. MEZDPD4506AS-84F8	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	4 V	Non-Isolated PoL Module	6 A	1	45 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)		22 V	0.6 V	OCP OTP OVP UVLO
Monolithic Power Systems Inc. MEZDPD4506AS-84D1	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	4 V	Non-Isolated PoL Module	6 A	1	12 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	1.2 V
Monolithic Power Systems Inc. MEZDPD4506AS-84DE	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	40 V	Non-Isolated PoL Module	6 A	1	32 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)	5 V
Monolithic Power Systems Inc. MEZDPD4506AS-84F9	Surface Mount	0.39 in	0.39 "	10 mm	10 mm	4.4 mm	0.17 in	4 V	Non-Isolated PoL Module	6 A	1	45 V	45-PowerBFLGA Module	45-LGA (10x10)	ITE (Commercial)		22 V	0.6 V	OCP OTP OVP UVLO
