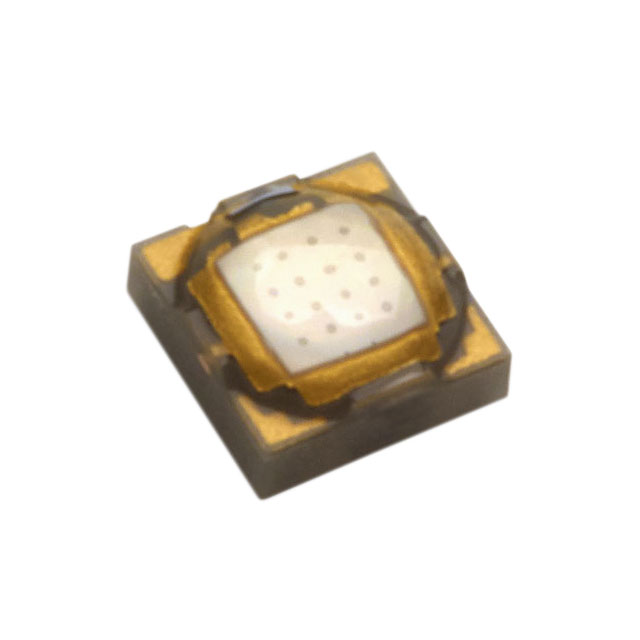

L1C1 Series

Manufacturer: Lumileds

Catalog

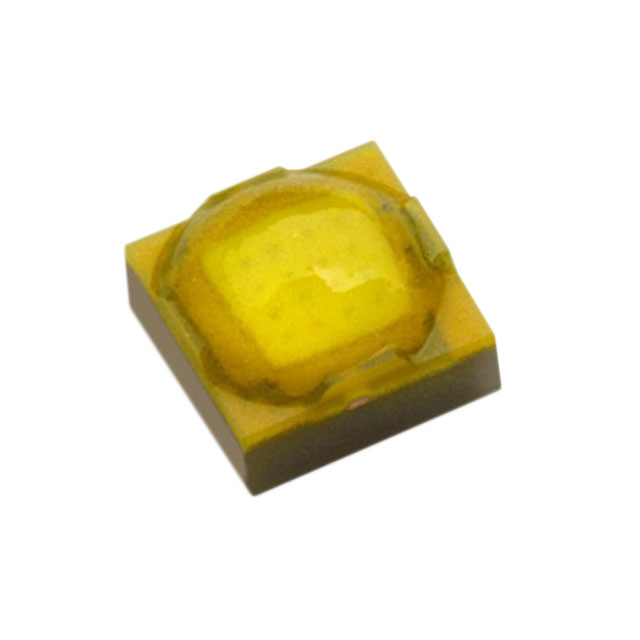

LED UNI-COLOR WHITE 113LM 4000K CHIP LED 3-PIN SMD T/R

Part	Thermal Resistance of Package	CRI (Color Rendering Index)	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Forward (Vf) (Typ)	Package / Case	Flux @ 85°C, Current - Test	Supplier Device Package	Mounting Type	CCT (K)	Current - Test	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Wavelength [Max]	Wavelength [Min]	Wavelength	Luminous Flux @ Current/Temperature	Temperature - Test
Lumileds L1C1-4080000000000	2.8 °C/W	80	150 °	0.059 "	1.5 mm	2.75 V	0707 (1919 Metric)	116 lm	SMD	Surface Mount	4000 K	350 mA	Neutral White	1.225 A	121 lm/W	2 mm	0.079 in	0.079 in	2 mm
Lumileds L1C1-5070000000000	2.8 °C/W	70	150 °	0.059 "	1.5 mm	2.75 V	3-SMD No Lead	117 lm		Surface Mount	5000 K	350 mA	Cool White	1.225 A	122 lm/W	2 mm	0.079 in	0.079 in	2 mm
Lumileds L1C1-3090000000000	2.8 °C/W	90	150 °	0.059 "	1.5 mm	2.75 V	3-SMD No Lead	86 lm		Surface Mount	3000 K	350 mA	Warm White	1.225 A	89 lm/W	2 mm	0.079 in	0.079 in	2 mm
Lumileds L1C1-RYL1000000000	2.8 °C/W		165 °	0.059 "	1.5 mm	2.75 V	0707 (1919 Metric)		SMD	Surface Mount		350 mA	Blue	1.05 A		2 mm	0.079 in	0.079 in	2 mm	460 nm	440 nm	450 nm	506 mW	85 °C
Lumileds L1C1-2280000000000	2.8 °C/W	80	150 °	0.059 "	1.5 mm	2.75 V	3-SMD No Lead	85 lm		Surface Mount	2200 K	350 mA	Warm White	1.225 A	88 lm/W	2 mm	0.079 in	0.079 in	2 mm
Lumileds L1C1-6570000000000	2.8 °C/W	70	150 °	0.059 "	1.5 mm	2.75 V	2-SMD No Lead	119 lm		Surface Mount	6500 K	350 mA	Cool White	1.225 A		2 mm	0.079 in	0.079 in	2 mm
Lumileds L1C1-PCB1000000000			161 °	0.059 "	1.5 mm	3.08 V	2-SMD No Lead			Surface Mount		350 mA	Blue	1.05 A	48 lm/W	2 mm	0.079 in	0.079 in	2 mm				52 lm	85 °C
Lumileds L1C1-GRN1000000000	3.5 °C/W		170 °	0.059 "	1.5 mm	3.05 V	0707 (1919 Metric)		SMD	Surface Mount		350 mA	Green	1.05 A	108 lm/W	2 mm	0.079 in	0.079 in	2 mm	540 nm	520 nm	530 nm	115 lm	85 °C
Lumileds L1C1-3580000000000	2.8 °C/W	80	150 °	0.059 "	1.5 mm	2.75 V	3-SMD No Lead	108 lm		Surface Mount	3500 K	350 mA	Warm White	1.225 A	112 lm/W	2 mm	0.079 in	0.079 in	2 mm
Lumileds L1C1-2790000000000	2.8 °C/W	90	150 °	0.059 "	1.5 mm	2.75 V	3-SMD No Lead	82 lm		Surface Mount	2700 K	350 mA	Warm White	1.225 A	85 lm/W	2 mm	0.079 in	0.079 in	2 mm
