284051 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 12POS 10.16MM

Part	Torque - Screw	Torque - Screw	Mounting Type	Contact Material	Plug Wire Entry	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Color	Pitch [x]	Pitch [x]	Contact Mating Finish	Wire Strip Length [Max]	Wire Strip Length [Min]	Screw Size	Insulation Height	Insulation Height	Number of Levels	Positions Per Level	Material Flammability Rating	Features	Type	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity Raychem Cable Protection 1-284051-2	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	Phosphor Bronze	90 °	-40 °C	110 °C	Screw - Rising Cage Clamp	0.05 mm²	3 mm²	300 V	30 AWG	12 AWG	12	Green	10.16 mm	0.4 in	Tin	7.5 mm	6 mm	M3	25 mm	0.984 in	1	12	UL94 V-0	Retention Latches (Wire Side)	Plug Female Sockets
TE Connectivity Raychem Cable Protection 284051-6	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	Phosphor Bronze	90 °	-40 °C	110 °C	Screw - Rising Cage Clamp	0.05 mm²	3 mm²	300 V	30 AWG	12 AWG	6	Green	10.16 mm	0.4 in	Tin	7.5 mm	6 mm	M3	25 mm	0.984 in	1	6	UL94 V-0	Retention Latches (Wire Side)	Plug Female Sockets

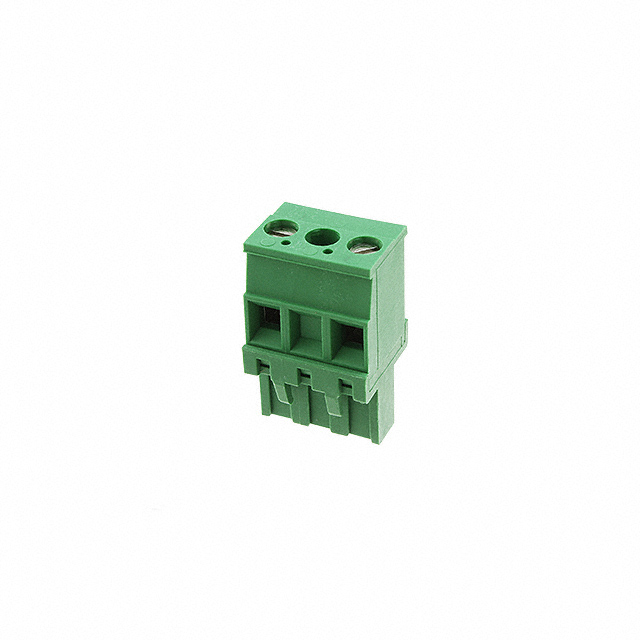

TE Connectivity Raychem Cable Protection 284051-2	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	Phosphor Bronze	90 °	-40 °C	110 °C	Screw - Rising Cage Clamp	0.05 mm²	3 mm²	300 V	30 AWG	12 AWG	2	Green	10.16 mm	0.4 in	Tin	7.5 mm	6 mm	M3	25 mm	0.984 in	1	2	UL94 V-0	Retention Latches (Wire Side)	Plug Female Sockets
TE Connectivity Raychem Cable Protection 284051-9	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	Phosphor Bronze	90 °	-40 °C	110 °C	Screw - Rising Cage Clamp	0.05 mm²	3 mm²	300 V	30 AWG	12 AWG	9	Green	10.16 mm	0.4 in	Tin	7.5 mm	6 mm	M3	25 mm	0.984 in	1	9	UL94 V-0	Retention Latches (Wire Side)	Plug Female Sockets
TE Connectivity Raychem Cable Protection 1-284051-3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	Phosphor Bronze	90 °	-40 °C	110 °C	Screw - Rising Cage Clamp	0.05 mm²	3 mm²	300 V	30 AWG	12 AWG	13	Green	10.16 mm	0.4 in	Tin	7.5 mm	6 mm	M3	25 mm	0.984 in	1	13	UL94 V-0	Retention Latches (Wire Side)	Plug Female Sockets
TE Connectivity Raychem Cable Protection 284051-8	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	Phosphor Bronze	90 °	-40 °C	110 °C	Screw - Rising Cage Clamp			300 V	30 AWG	12 AWG	8	Green	10.16 mm	0.4 in	Tin	7.5 mm	6 mm	M3	25 mm	0.984 in	1	8	UL94 V-0	Retention Latches (Wire Side)	Plug Female Sockets	3 mm˛	0.05 mm˛
