337-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K

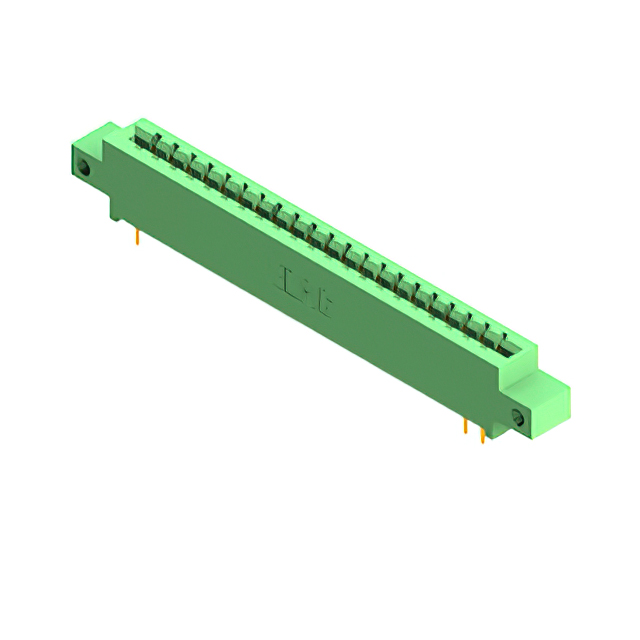

CONN EDGE SGL FMALE 42POS 0.156
| Part | Material - Insulation | Termination Rows | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Card Type | Mounting Type | Number of Rows | Contact Type | Termination | Number of Positions/Bay/Row | Contact Finish | Gender | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Color | Termination Rows [custom] | Number of Rows [custom] | Flange Feature | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | Through Hole | 1 | Cantilever | Solder | 42 | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | |||||||
 EDAC Inc. | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | Wire Wrap | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | 2 | 2 | M3 Threaded Insert Top Mount Opening | 21 | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | Right Angle Through Hole | 1 | Cantilever | Wire Wrap | 42 | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | 4-40 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | Wire Wrap | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | 2 | 2 | Side Mount Opening Unthreaded | 21 | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | Through Hole | 1 | Cantilever | Wire Wrap | 42 | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | 4-40 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Dual Edge | Through Hole | Cantilever | Solder | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | 2 | 2 | Flush Mount M3 Threaded Insert Top Opening | 21 | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | Right Angle Through Hole | 1 | Cantilever | Wire Wrap | 42 | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | Through Hole | 1 | Cantilever | Wire Wrap | 42 | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | M3 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | Through Hole | 1 | Cantilever | Wire Wrap | 42 | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | 4-40 Threaded Insert Top Mount Opening | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | Through Hole | 1 | Cantilever | Wire Wrap | 42 | Gold | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 42 | Green | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm |
