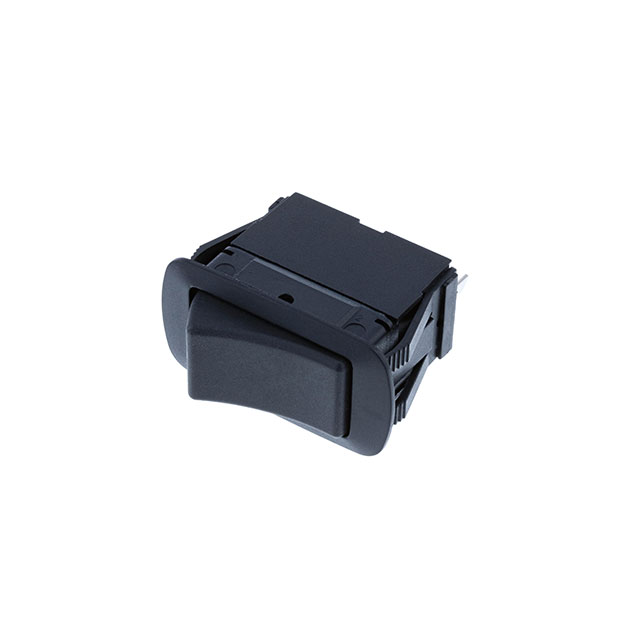

SRB1-1D Series
Manufacturer: Switch Components
Beta
⌘K
VAC SEALED IP56, SPDT ON-ON
| Part | Circuit | Actuator Type | Approval Agency | Operating Temperature (Max) | Operating Temperature (Min) | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Voltage Rating - AC | Actuator Marking | Current Rating | Ingress Protection IP Rating | Ingress Protection Description | Mounting Type | Quick Connect Size (0.250") | Termination Style | Color - Actuator/Cap | Switch Function | Mechanical Life (Cycles) | Electrical Life (Cycles) | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | SPDT | Concave (Curved) | CSA cURus ENEC | 85 °C | -20 °C | 21.2 mm | Rectangular | 36.6 mm | 125 V | No Marking | 16 A | IP56 | Dust Protected Water Resistant | Panel Mount Snap-In | 0.25 in | Quick Connect | Black | On-On | |||
Switch Components | SPDT | Concave (Curved) | CSA cURus ENEC | 85 °C | -20 °C | 21.2 mm | Rectangular | 36.6 mm | 125 V | No Marking | 20 A 21 A | IP56 | Dust Protected Water Resistant | Panel Mount Snap-In | 0.25 in | Quick Connect | Black | On-On | 10000 Cycles | 6000 Cycles | 14 V |
