865645 Series

Catalog

DSUB CRIMP CONTACT SOCK

Part	Contact Termination	Type	Contact Form	Contact Type	Termination Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Features	Contact Finish	Contact Material	Contact Finish Thickness
Amphenol ICC (FCI) 8656451067	Crimp	Signal	Stamped	Female Socket	Tin	16 µin	0.41 µm	24 AWG	28 AWG	Insulation Support	Gold or Gold GXT™	Phosphor Bronze

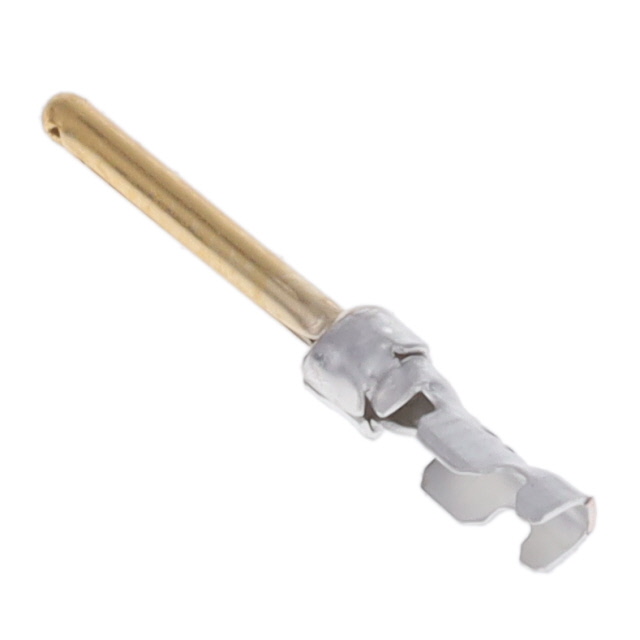

Amphenol ICC (FCI) 86564510064LF	Crimp	Signal	Stamped	Male Pin	Tin			24 AWG	28 AWG	Insulation Support	Gold	Phosphor Bronze	Flash
Amphenol ICC (FCI) 8656452067	Crimp	Signal	Stamped	Male Pin	Tin	16 µin	0.41 µm	20 AWG	24 AWG	Insulation Support	Gold or Gold GXT™	Phosphor Bronze

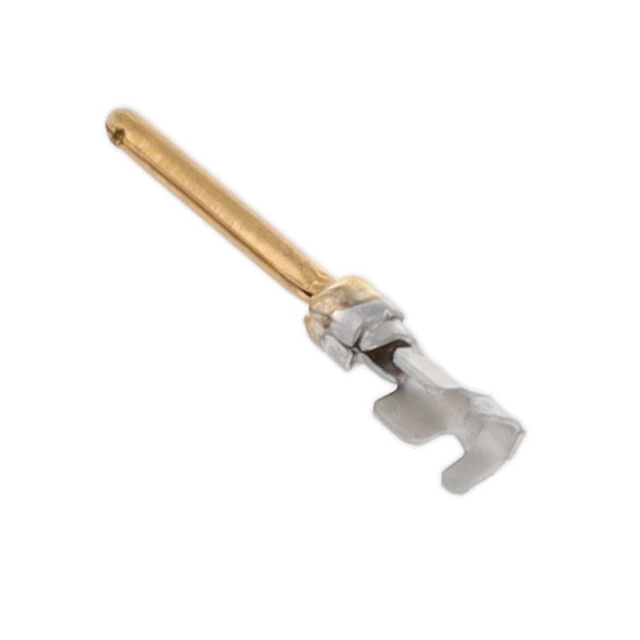

Amphenol ICC (FCI) 86564520065LF	Crimp	Signal	Stamped	Male Pin	Tin	30 Áin	0.76 Ám	20 AWG	24 AWG	Insulation Support	Gold	Phosphor Bronze
Amphenol ICC (FCI) 8656451067LF	Crimp	Signal	Stamped	Female Socket	Tin	16 µin	0.41 µm	24 AWG	28 AWG	Insulation Support	Gold	Phosphor Bronze
Amphenol ICC (FCI) 8656452067LF	Crimp	Signal	Stamped	Male Pin	Tin	15 µin	0.38 µm	20 AWG	24 AWG	Insulation Support	Gold	Phosphor Bronze
Amphenol ICC (FCI) 86564540067LF	Crimp	Signal	Stamped	Male Pin	Tin	16 µin	0.41 µm	24 AWG	28 AWG	Insulation Support	Gold	Phosphor Bronze

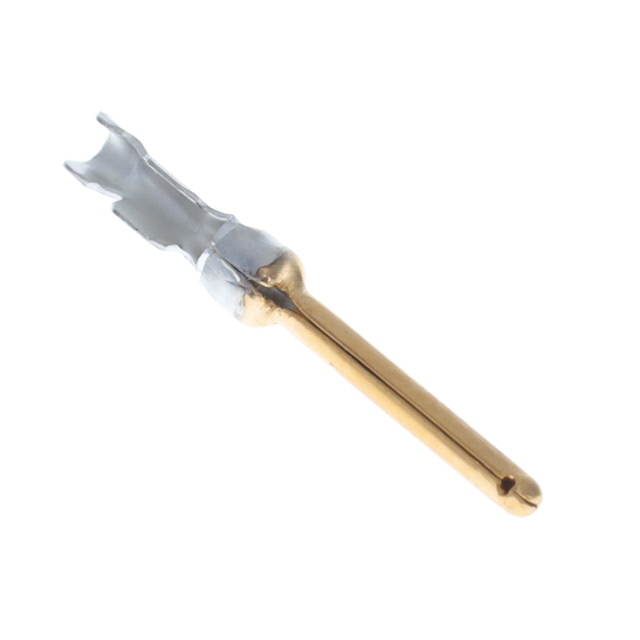

Amphenol ICC (FCI) 8656450067LF	Crimp	Signal	Stamped	Male Pin	Tin	16 µin	0.41 µm	20 AWG	28 AWG	Insulation Support	Gold	Phosphor Bronze
Amphenol ICC (FCI) 86564530064LF	Crimp	Signal	Stamped	Male Pin	Tin			20 AWG	24 AWG	Insulation Support	Gold	Phosphor Bronze	Flash
