EDZ1100 Series

Catalog

TERM BLOCK PLUG 12POS 5.08MM

Part	Housing Material	Contact Material	Wire Gauge or Range - mm˛	Torque - Screw	Torque - Screw	Wire Strip Length	Material Flammability Rating	Positions Per Level	Pitch	Pitch	Wire Gauge or Range - mm²	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Number of Levels	Mounting Type	Number of Positions	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Color	Positions Per Level [custom]
On Shore Technology Inc. EDZ1100/12	Polyamide (PA) Nylon	Copper Tin Alloy	2.5 mm˛	4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	12	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	12	300 V	22 AWG	10 AWG	Plug Female Sockets	Green
On Shore Technology Inc. EDZ1100/3	Polyamide (PA) Nylon	Copper Tin Alloy	2.5 mm˛	4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	3	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)		300 V	22 AWG	10 AWG	Plug Female Sockets	Green
On Shore Technology Inc. EDZ1100/16	Polyamide (PA) Nylon	Copper Tin Alloy	2.5 mm˛	4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	16	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	16	300 V	22 AWG	10 AWG	Plug Female Sockets	Green
On Shore Technology Inc. EDZ1100/6	Polyamide (PA) Nylon	Copper Tin Alloy		4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	6	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	6	300 V	22 AWG	10 AWG	Plug Female Sockets	Green
On Shore Technology Inc. EDZ1100/10	Polyamide (PA) Nylon	Copper Tin Alloy		4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	10	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	10	300 V	22 AWG	10 AWG	Plug Female Sockets	Green
On Shore Technology Inc. EDZ1100/11	Polyamide (PA) Nylon	Copper Tin Alloy		4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	11	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	11	300 V	22 AWG	10 AWG	Plug Female Sockets	Green
On Shore Technology Inc. EDZ1100/2	Polyamide (PA) Nylon	Copper Tin Alloy	2.5 mm˛	4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	2	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	2	300 V	22 AWG	10 AWG	Plug Female Sockets	Green
On Shore Technology Inc. EDZ1100/15	Polyamide (PA) Nylon	Copper Tin Alloy		4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	15	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	15	300 V	22 AWG	10 AWG	Plug Female Sockets	Green

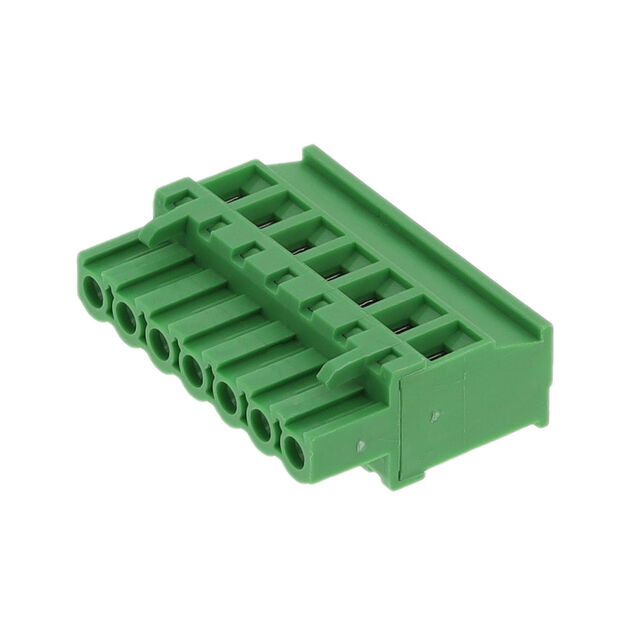

On Shore Technology Inc. EDZ1100/7	Polyamide (PA) Nylon	Copper Tin Alloy	2.5 mm˛	4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0		5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	7	300 V	22 AWG	10 AWG	Plug Female Sockets	Green	7

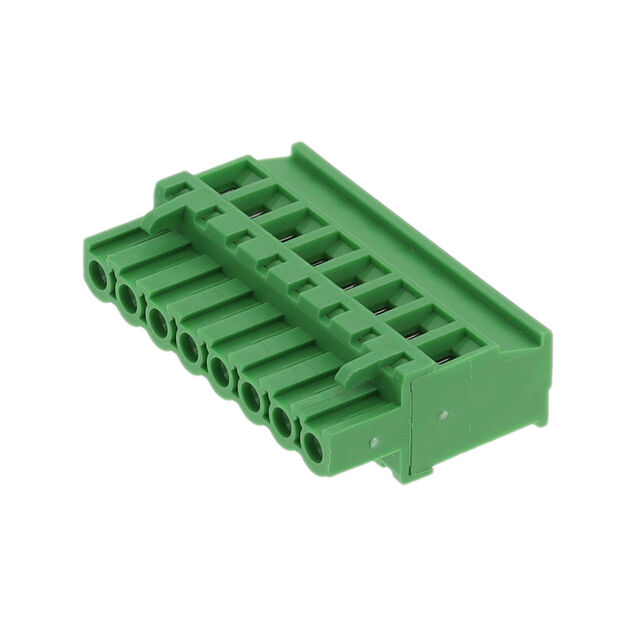

On Shore Technology Inc. EDZ1100/8	Polyamide (PA) Nylon	Copper Tin Alloy	2.5 mm˛	4.4 Lb-In	0.5 Nm	7 mm	UL94 V-0	8	5.08 mm	0.2 in	2.5 mm²	-30 ░C	105 ░C	Screw	1	Free Hanging (In-Line)	8	300 V	22 AWG	10 AWG	Plug Female Sockets	Green
