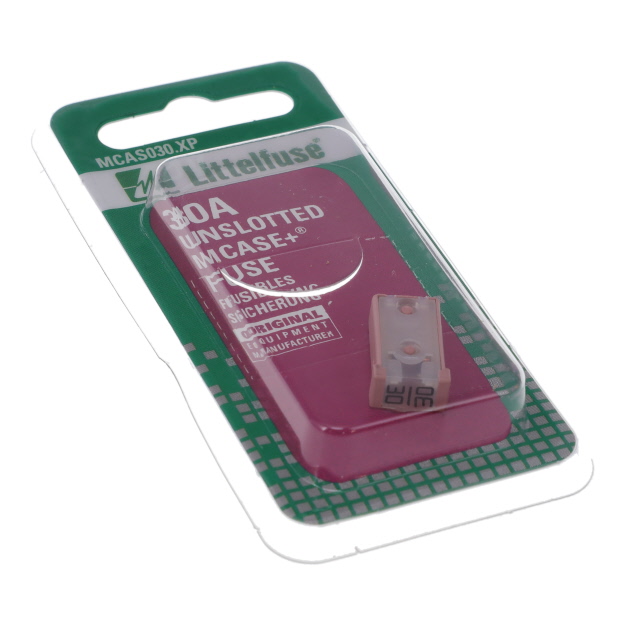

MCAS030.XP Series

Fuse - MCase 32VDC 30A 1-pc Card

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - MCase 32VDC 30A 1-pc Card

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Fuse Type	Package / Case	Response Time	Mounting Type	Color	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products MCAS030.XP	10.7 mm	17.5 mm	6.2 mm	0.244 "	0.421 "	0.689 "	125 °C	-40 °C	Automotive	Auto Link	Slow Blow	Requires Holder	Pink	30 A	1 kA	32 V

Catalog

Fuse - MCase 32VDC 30A 1-pc Card

Description

The MCASE™ is a cartridge style fuse with female terminals for 2.8 mm male terminals. It has a miniaturized footprint for optimal usage of space. It is a time delayed fuse and can handle inrush currents. MCASE™ is designed and patented by Littelfuse.
