SSL-LX3052 Series

Catalog

LED RED DIFFUSED T-1 T/H

Part	Lens Style	Current - Test	Mounting Type	Lens Transparency	Viewing Angle	Wavelength - Peak	Configuration	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Millicandela Rating	Supplier Device Package	Color	Lens Size	Lens Size	Lens Color	Package / Case

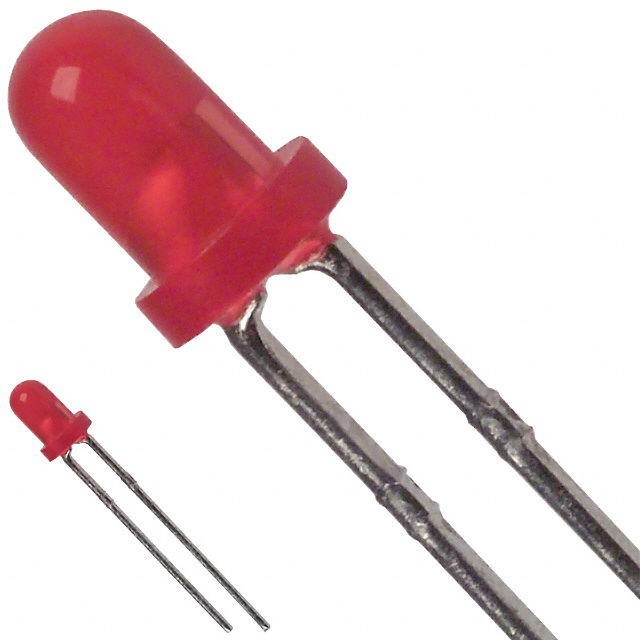

Lumex Opto/Components Inc. SSL-LX3052ID	Round with Domed Top	20 mA	Through Hole	Diffused	60 °	635 nm	Standard	2.1 V	5.25 mm	30 mcd	T-1	Red	3 mm	T-1	Red	Radial

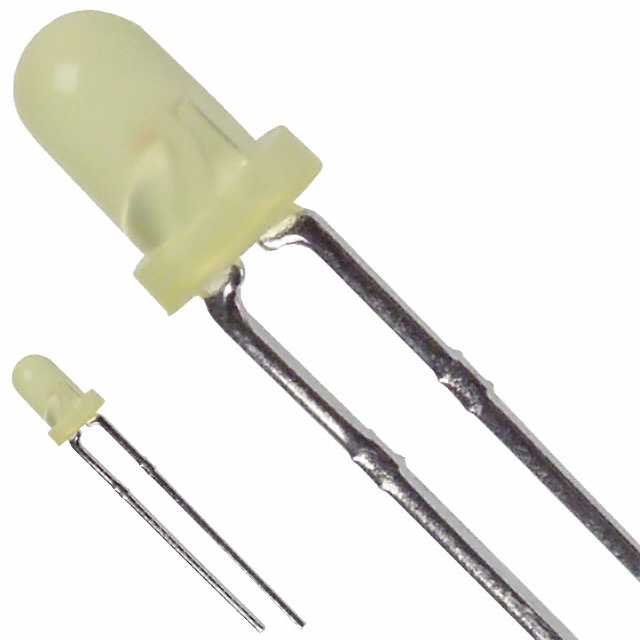

Lumex Opto/Components Inc. SSL-LX3052YD	Round with Domed Top	20 mA	Through Hole	Diffused	80 °	585 nm	Standard	2.1 V	5.25 mm	15 mcd	T-1	Yellow	3 mm	T-1	Yellow	Radial

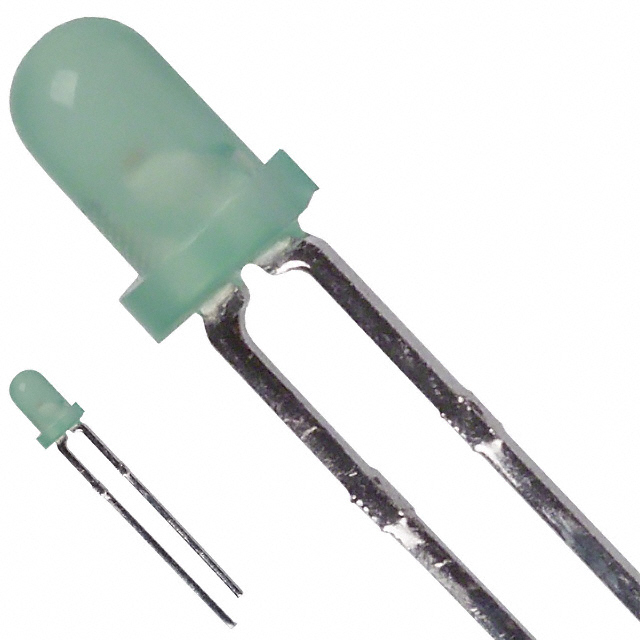

Lumex Opto/Components Inc. SSL-LX3052GD	Round with Domed Top	20 mA	Through Hole	Diffused	80 °	565 nm	Standard	2 V	5.25 mm	15 mcd	T-1	Green	3 mm	T-1	Green	Radial
