AEMD-CE3L Series
Manufacturer: Broadcom Limited
Beta
⌘K

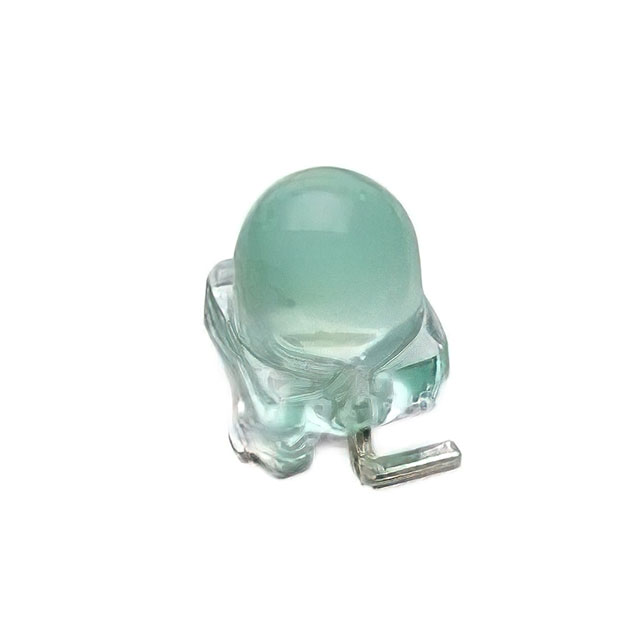

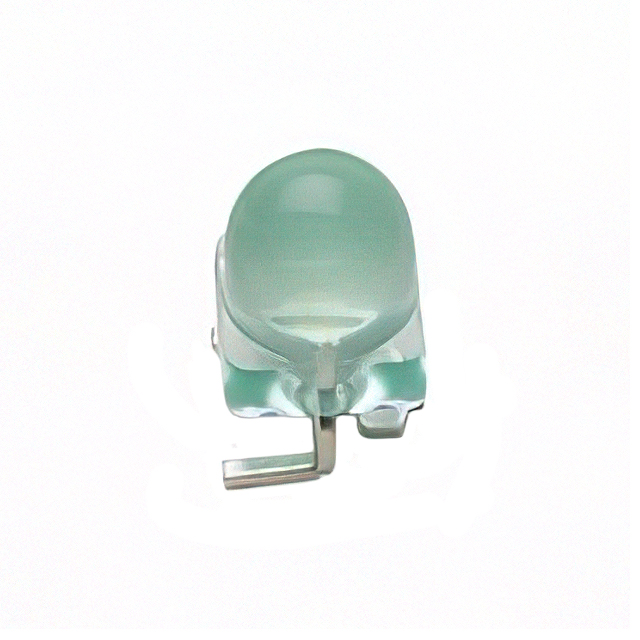

LED CYAN ROUND SMD
| Part | Color | Wavelength - Peak | Package / Case | Millicandela Rating | Lens Style | Wavelength - Dominant | Height (Max) [Max] [z] | Current - Test | Voltage - Forward (Vf) (Typ) | Viewing Angle | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Lens Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | ||||||||||||||
 Broadcom Limited | Cyan | 501 nm | 3-SMD Gull Wing | 11600 mcd | Round with Domed Top | 503 nm | 7 mm | 20 mA | 3 V | 33 ° | Surface Mount | 4.2 mm | 4.2 mm | 3.9 mm |
Broadcom Limited | Cyan | 501 nm | 3-SMD Gull Wing | 11600 mcd | Round with Domed Top | 505 nm | 7 mm | 20 mA | 3 V | 33 ° | Surface Mount | 4.2 mm | 4.2 mm | 3.9 mm |
