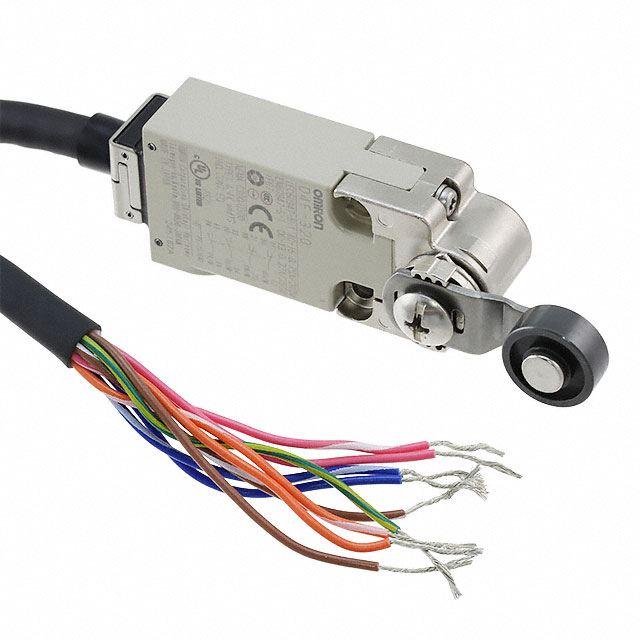

D4F-320 Series

Catalog

SWITCH SNAP ACTION 4PST 15A 120V

Part	Features	Mechanical Life	Overtravel	Circuit	Pretravel	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Electrical Life	Current Rating (Amps)	Ingress Protection	Operating Force	Mounting Type	Switch Function	Voltage Rating - DC	Voltage Rating - AC
Omron Automation and Safety D4F-320-1D	Cable Length 1m	10000000 Cycles	40 °	4PST-2NO/2NC	12 °	51 gf	-30 ░C	70 °C	Cable Leads	Roller Side Rotary	1000000 Cycles	15 A 550 mA	IP67 - Dust Tight Waterproof	510 gf	Chassis Mount	Off-Mom On-Mom	125 VDC	120 V
Omron Automation and Safety D4F-320-5D	Cable Length 5m	10000000 Cycles	40 °	4PST-2NO/2NC	12 °	51 gf	-30 ░C	70 °C	Cable Leads	Roller Side Rotary	1000000 Cycles	15 A 550 mA	IP67 - Dust Tight Waterproof	510 gf	Chassis Mount	Off-Mom On-Mom	125 VDC	120 V
Omron Automation and Safety D4F-320-3D	Cable Length 3m	10000000 Cycles	40 °	4PST-2NO/2NC	12 °	51 gf	-30 ░C	70 °C	Cable Leads	Roller Side Rotary	1000000 Cycles	15 A 550 mA	IP67 - Dust Tight Waterproof	510 gf	Chassis Mount	Off-Mom On-Mom	125 VDC	120 V
Omron Automation and Safety D4F-320-3R	Cable Length 3m	10000000 Cycles	40 °	4PST-2NO/2NC	12 °	51 gf	-30 ░C	70 °C	Cable Leads	Roller Side Rotary	1000000 Cycles	15 A 550 mA	IP67 - Dust Tight Waterproof	510 gf	Chassis Mount	Off-Mom On-Mom	125 VDC	120 V
