16_BNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

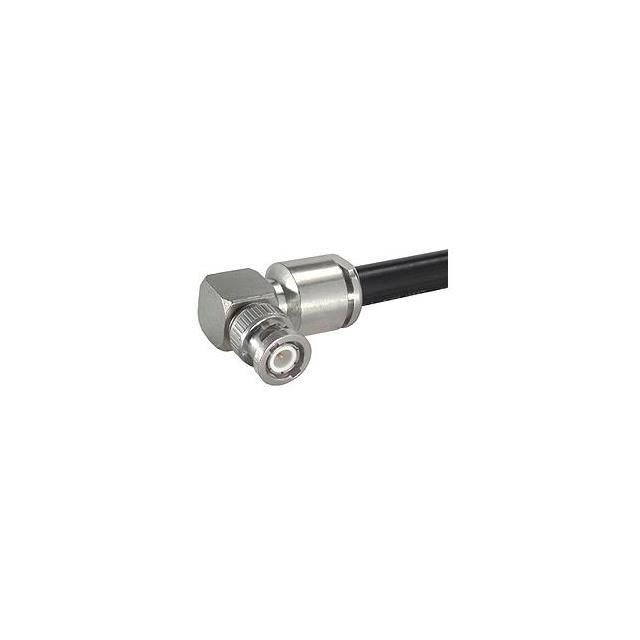

CONN BNC 0HZ TO 4GHZ 50OHM SOLDER RA CABLE MOUNT PL GOLD/GOLD OVER NICKEL PHOSPHORUS SINGLE
| Part | Mating Cycles | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Plating | Contact Termination | Center Contact Material | Fastening Type | Connector Type | Number of Ports | Connector Style | Housing Color | Impedance | Shield Termination | Frequency - Max [Max] | Mounting Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 500 | 500 V | White Bronze | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Solder | Brass | Bayonet Lock | Plug Male Pin | 1 | BNC | Silver | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) Right Angle | RD-316 |
 Huber+Suhner, Inc. | 500 | Gold | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Solder | Brass | Bayonet Lock | Plug Male Pin | 1 | BNC | Gold | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) Right Angle | ||
Huber+Suhner, Inc. | 500 | 500 V | White Bronze | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Solder | Brass | Bayonet Lock | Plug Male Pin | 1 | BNC | Silver | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) Right Angle | 188 316 RG-174 |
 Huber+Suhner, Inc. | 500 | 500 V | Nickel | -60 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | Crimp | Beryllium Copper | Bayonet Lock | Plug Male Pin | 1 | BNC | Silver | 50 Ohms | Clamp | 4 GHz | Free Hanging (In-Line) Right Angle | RG-B4C |
 Huber+Suhner, Inc. | 500 | 500 V | White Bronze | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Solder | Brass | Bayonet Lock | Plug Male Pin | 1 | BNC | Silver | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) Right Angle | RG-58 |
 Huber+Suhner, Inc. | 500 | 500 V | White Bronze | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | Solder | Brass | Bayonet Lock | Plug Male Pin | 1 | BNC | Silver | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) Right Angle | RG-400 |
 Huber+Suhner, Inc. | 500 | 500 V | White Bronze | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | Solder | Brass | Bayonet Lock | Plug Male Pin | 1 | BNC | Silver | 50 Ohms | Crimp | 4 GHz | Free Hanging (In-Line) Right Angle | 223 400 RG-142 |
