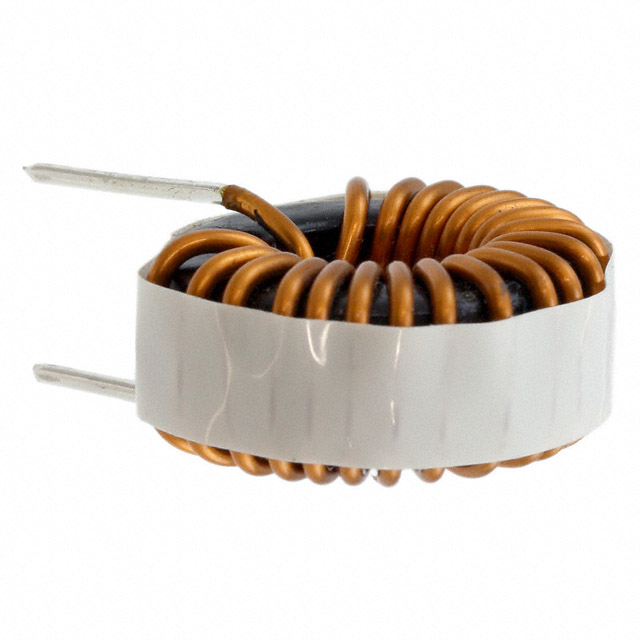

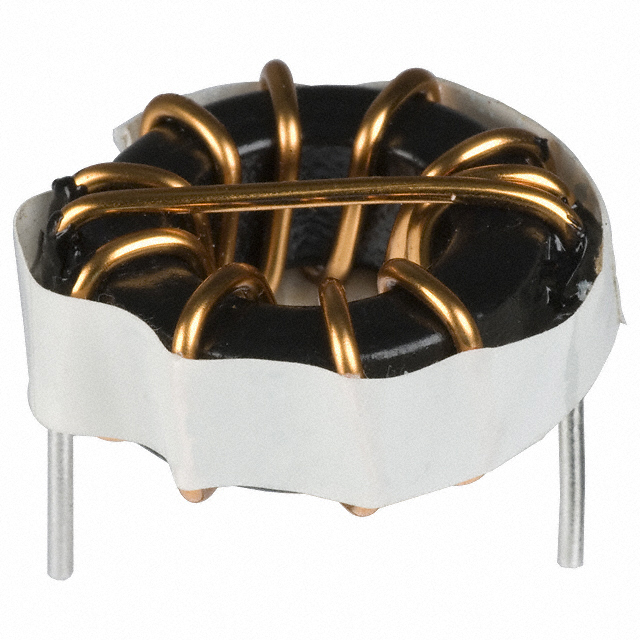

TOROIDAL INDUCTOR, 2200LL SERIES, 47 ΜH, 10.3 A, 0.012 OHM, ± 20%
| Part | Inductance Frequency - Test | Shielding | Package / Case | Material - Core | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [diameter] | Size / Dimension [diameter] | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | DC Resistance (DCR) [Max] | Current Rating (Amps) | Type | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 kHz | Unshielded | Radial Vertical (Open) | Sendust | 13.97 mm | 0.55 " | 1.1 " | 27.94 mm | 47 µH | -55 C | 125 °C | 15 % | 12 mOhm | 10.3 A | Toroidal | Through Hole | |||
 Bourns Inc. | 1 kHz | Unshielded | Radial Horizontal (Open) | Sendust | 1.1 " | 27.94 mm | 820 µH | -55 C | 125 °C | 15 % | 194 mOhm | 2.5 A | Toroidal | Through Hole | 0.55 in | 13.97 mm | |||
Bourns Inc. | 1 kHz | Unshielded | Radial Horizontal (Open) | Sendust | 1.1 " | 27.94 mm | 390 µH | -55 C | 125 °C | 15 % | 84 mOhm | 3.8 A | Toroidal | Through Hole | 0.55 in | 13.97 mm | |||
Bourns Inc. | 1 kHz | Unshielded | Radial Horizontal (Open) | Sendust | 1.1 " | 27.94 mm | 39 µH | -55 C | 125 °C | 15 % | 11 mOhm | 10.8 A | Toroidal | Through Hole | 0.55 in | 13.97 mm | |||
Bourns Inc. | 1 kHz | Unshielded | Radial Horizontal (Open) | Sendust | 1.1 " | 27.94 mm | 18 µH | -55 C | 125 °C | 15 % | 7 mOhm | 13.1 A | Toroidal | Through Hole | 0.55 in | 13.97 mm | |||
Bourns Inc. | 1 kHz | Unshielded | Radial Horizontal (Open) | Sendust | 1.1 " | 27.94 mm | 47 µH | -55 C | 125 °C | 15 % | 12 mOhm | 10.3 A | Toroidal | Through Hole | 0.55 in | 13.97 mm | |||
Bourns Inc. | 1 kHz | Unshielded | Radial Vertical (Open) | Sendust | 13.97 mm | 0.55 " | 1.1 " | 27.94 mm | 33 µH | -55 C | 125 °C | 15 % | 10 mOhm | 11.1 A | Toroidal | Through Hole | |||
Bourns Inc. | 1 kHz | Unshielded | Radial Vertical (Open) | Sendust | 13.97 mm | 0.55 " | 1.1 " | 27.94 mm | 220 µH | -55 C | 125 °C | 15 % | 4.4 A | Toroidal | Through Hole | 63 mOhm | |||
Bourns Inc. | 1 kHz | Unshielded | Radial Vertical (Open) | Sendust | 13.97 mm | 0.55 " | 1.1 " | 27.94 mm | 150 µH | -55 C | 125 °C | 15 % | 4.9 A | Toroidal | Through Hole | ||||
Bourns Inc. | 1 kHz | Unshielded | Radial Horizontal (Open) | Sendust | 1.1 " | 27.94 mm | 56 µH | -55 C | 125 °C | 15 % | 13 mOhm | 9.8 A | Toroidal | Through Hole | 0.55 in | 13.97 mm |
