146480 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

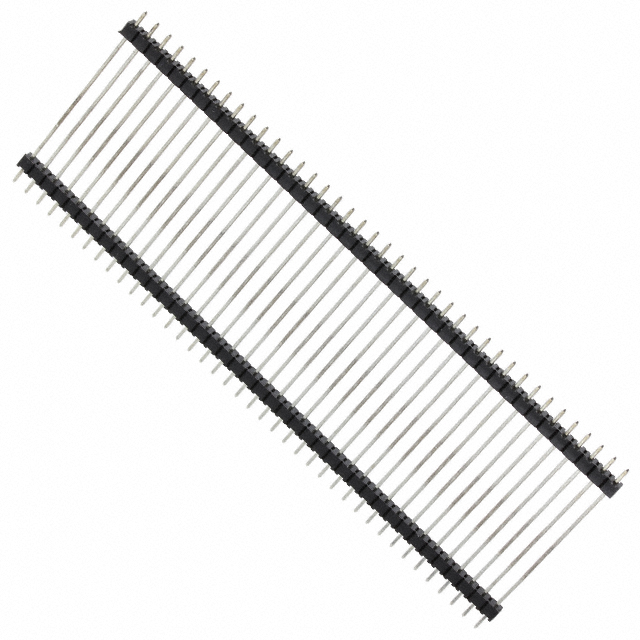

CONN HDR 40POS 0.1 STACK T/H
| Part | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Contact Finish Thickness - Post (Mating) | Contact Finish Thickness - Post (Mating) | Number of Rows | Mounting Type | Length - Tail | Length - Tail | Pitch [x] | Pitch [x] | Length - Stack Height [x] | Length - Stack Height [x] | Termination | Color | Contact Finish - Post (Mating) | Number of Positions | Length - Overall Pin [x] | Length - Overall Pin [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3.05 mm | 0.12 in | 2.54 Ám | 100 Áin | 1 | Through Hole | 2.8 mm | 0.11 in | 2.54 mm | 0.1 in | 30.48 mm | 1.2 in | Solder | Black | Tin-Lead | 40 | 1.43 in | 36.322 mm |
