2M801-007 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

2M801 85C 85#23 PIN PLUG OM

Part	Shell Finish	Termination	Fastening Type	Shell Material	Mounting Type	Cable Opening	Current Rating	Features	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Color	Orientation	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Connector Type	Primary Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shielding	Contact Material	Shell Size - Insert Length	Shell Size - Insert Width	Shell Size - Insert	Applications	Ingress Protection

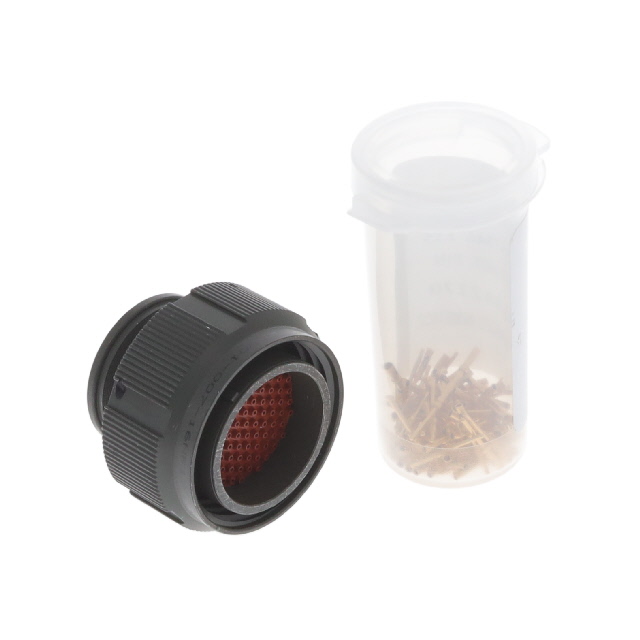

Amphenol Aerospace Operations 2M801-007-16NF17-85PA	Olive Drab Cadmium	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.85 in	5 A	Backshell Coupling Nut	85	Dust Tight Waterproof	IP67	Olive Drab	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Male Pins Plug	Metal	17	85	Shielded	Copper Alloy
Amphenol Aerospace Operations 2M801-007-16M16-235SA	Electroless Nickel	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.805 in	7.5 A	Backshell Coupling Nut	35	Dust Tight Waterproof	IP67	Silver	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Female Sockets Plug	Metal	16 S	235	Shielded	Copper Alloy
Amphenol Aerospace Operations 2M801-007-26ZNU6-4PA	Black Zinc Nickel	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.29 in	5 A	Backshell Coupling Nut Self Locking	4	Dust Tight Waterproof	IP67	Black	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Male Pins Plug	Metal			Shielded	Copper Alloy	6 mm	4 mm

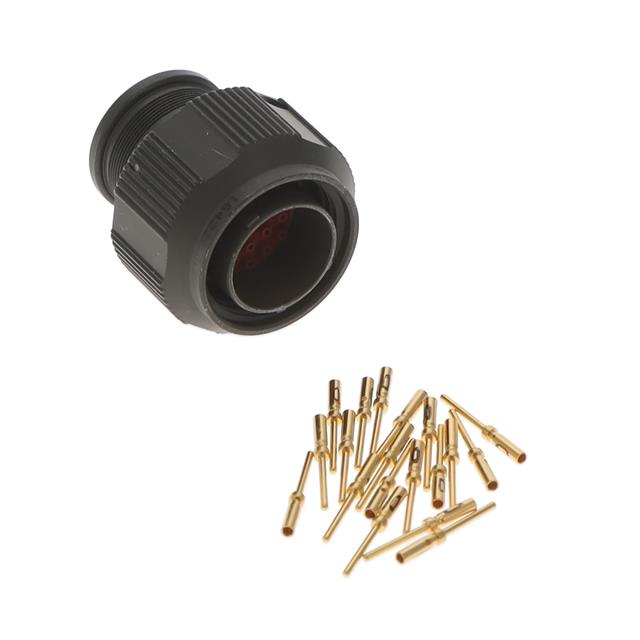

Amphenol Aerospace Operations 2M801-007-16NF9-19PA	Olive Drab Cadmium	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.5 in	5 A	Backshell Coupling Nut	16	Dust Tight Waterproof	IP67	Olive Drab	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Male Pins Plug	Metal	9	19	Shielded	Copper Alloy
Amphenol Aerospace Operations 2M801-007-16M8-2SA	Electroless Nickel	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.445 in	13 A	Backshell Coupling Nut	2	Dust Tight Waterproof	IP67	Silver	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Female Sockets Plug	Metal			Shielded	Copper Alloy	8 mm	2 mm
Amphenol Aerospace Operations 2M801-007-26NF8-28SA	Olive Drab Cadmium	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.445 in	7.5 A	Backshell Coupling Nut Self Locking	8	Dust Tight Waterproof	IP67	Olive Drab	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Female Sockets Plug	Metal	8	28	Shielded	Copper Alloy

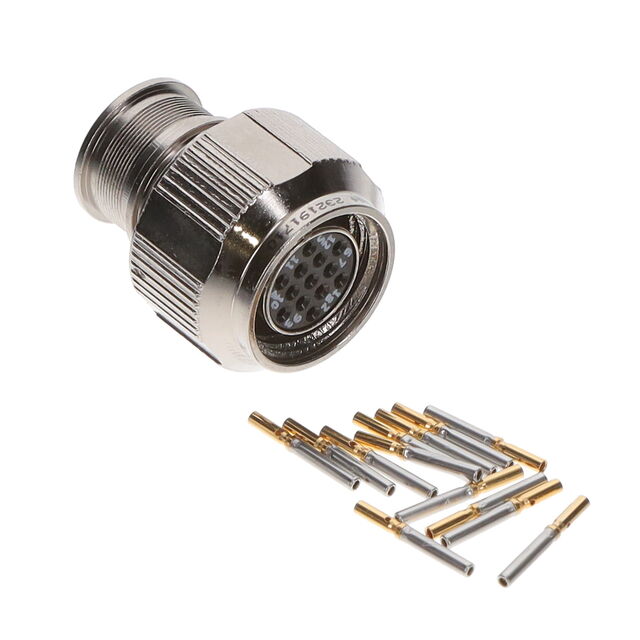

Amphenol Aerospace Operations 2M801-007-16M8-13SA	Electroless Nickel	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.445 in	5 A	Backshell Coupling Nut	13	Dust Tight Waterproof	IP67	Silver	A	50 µin	Gold	-65 °C	150 °C 175 °C	Polyphenylene Sulfide PPS	Female Sockets Plug	Metal	8	13	Shielded	Copper Alloy			13	Aerospace Industrial Military	Environment Resistant
Amphenol Aerospace Operations 2M801-007-26M7-10SA	Electroless Nickel	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.39 in	5 A	Backshell Coupling Nut Self Locking	10	Dust Tight Waterproof	IP67	Silver	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Female Sockets Plug	Metal	7	10 S	Shielded	Copper Alloy

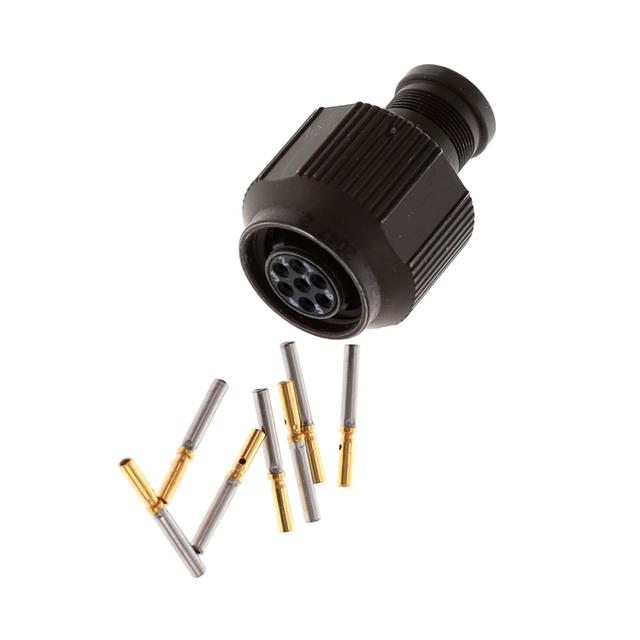

Amphenol Aerospace Operations 2M801-007-16NF6-7SA	Olive Drab Cadmium	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.29 in	5 A	Backshell Coupling Nut	7	Dust Tight Waterproof	IP67	Olive Drab	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Female Sockets Plug	Metal	6	7	Shielded	Copper Alloy
Amphenol Aerospace Operations 2M801-007-16ZN6-4SA	Olive Drab Zinc Nickel	Crimp	Threaded	Aluminum Alloy	Free Hanging (In-Line)	0.29 in	5 A	Backshell Coupling Nut	4	Dust Tight Waterproof	IP67	Olive Drab	A	50 µin	Gold	-65 °C	150 °C	Polyphenylene Sulfide PPS	Female Sockets Plug	Metal			Shielded	Copper Alloy	6 mm	4 mm
