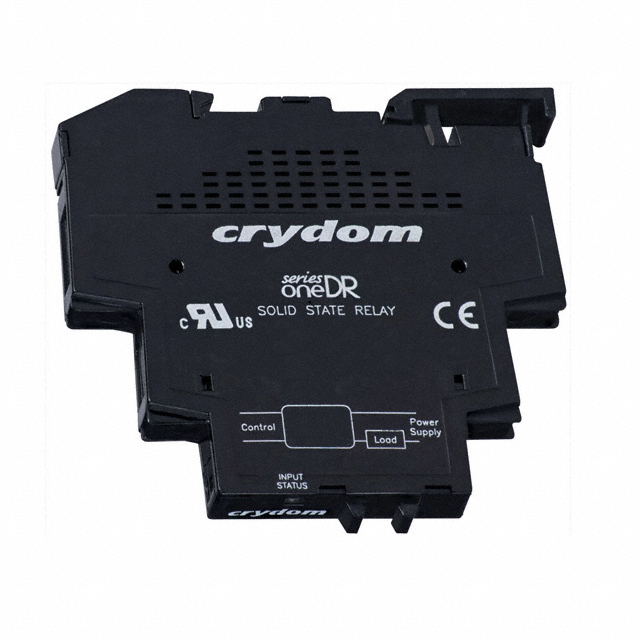

DR Series

Catalog

SOLID STATE RELAYS - SSRS SSR RELAY, DIN RAIL MOUNT 11MM, 240VAC/3A,90-140VAC IN, ZERO CROSS, ATEX

Part	Output Type	Approval Agency	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Load Current	On-State Resistance (Max) [Max]	Turn Off Time	Features	Current - Output	Current - Input	Style	Turn On Time	Color	Voltage - Output [Min]	Voltage - Output [Max]	Type	Voltage - Input
Sensata-Crydom DR24B03X	AC Zero Cross	CE cULus	Screw Terminal	140 VAC	90 VAC	DIN Rail	24 V	280 V	-20 ░C	40 °C	Module	3 A
Sensata-Crydom DR24B12X	AC Zero Cross	CE cULus	Screw Terminal	140 VAC	90 VAC	DIN Rail	24 V	280 V	-20 ░C	40 °C	Module	12 A
Sensata-Crydom DR24D12X	AC Zero Cross	CE cULus	Screw Terminal	32 VDC	4 V	DIN Rail	24 V	280 V	-20 ░C	40 °C	Module	12 A
Sensata-Crydom DR24A06XR	AC	CE cULus	Screw Terminal	265 VAC	208 VAC	DIN Rail	24 V	280 V	-20 ░C	40 °C	Module	6 A
Sensata-Crydom DR06D03X	DC	CE cULus	Screw Terminal	32 VDC	4 V	DIN Rail	1 V	60 V	-20 ░C	40 °C	Module	3 A
Sensata-Crydom DR06D06X	DC	CE cULus	Screw Terminal	32 VDC	4 V	DIN Rail	1 V	60 V	-20 ░C	40 °C	Module	6 A	100 mOhm
Sensata-Crydom DR-ODC5														0.75 ms	Status LED(s)	3 A	18 mA	DIN Rail Mount	0.1 ms	Red	3 V	60 V	DC Output Module	5 V
Sensata-Crydom DR24E06X	AC Zero Cross	CE cULus	Screw Terminal	36 VAC	18 VAC/DC	DIN Rail	24 V	280 V	-20 ░C	40 °C	Module	6 A
