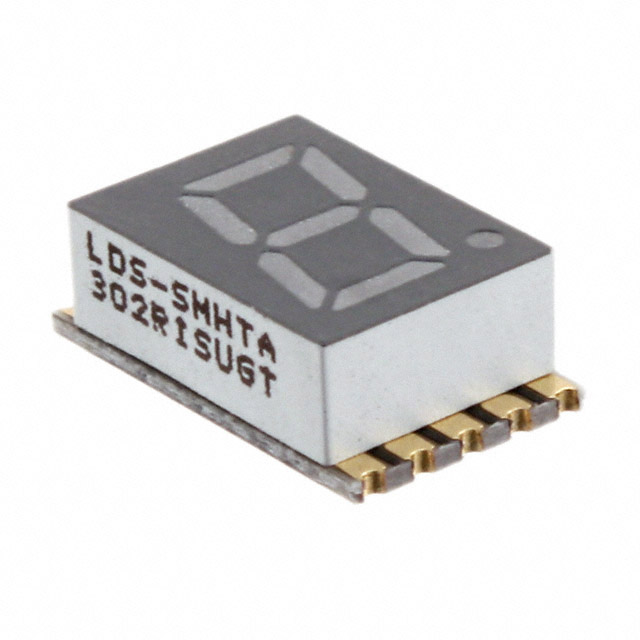

LDS-SMHTA302 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISPLAY 7SEG 0.3" SGL GRN 10SMD
| Part | Power Dissipation (Max) [Max] | Current - Test | Color | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Wavelength - Peak | Display Type | Common Pin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 65 mW | 20 mA | Green | 10-SMD No Lead | 3.9 mm | 0.394 in | 0.287 in | 0.154 in | 10 mm | 7.3 mm | 2.5 mcd | 2.25 V | 7.62 mm | 0.3 in | 1 | 568 nm | 7-Segment | Common Anode |
