ZV2-N21 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Pretravel	Pretravel	Mounting Type	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Operating Position	Operating Position	Mechanical Life	Termination Style	Switch Function	Operating Force	Differential Travel	Differential Travel	Circuit	Ingress Protection	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC

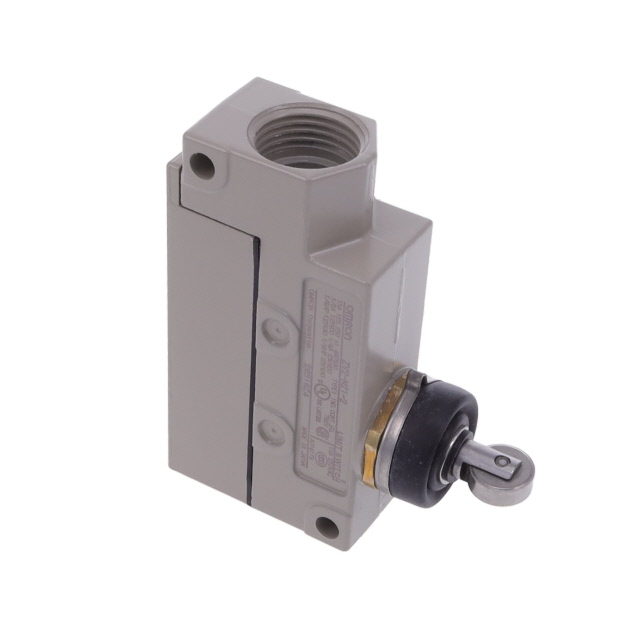

Omron Automation and Safety ZV2-N21-2	-10 °C	80 °C	Cross Roller Plunger	0.04 in	1 mm	Chassis Mount	500000 Cycles	125 VDC	15 A 500 mA	35.7 mm	1.405 in	10000000 Cycles	Screw Terminal	On-Mom	0.5 kgf	0.005 in	0.13 mm	SPDT	IP65 - Dust Tight Water Resistant	0.138 "	3.5 mm	125 V

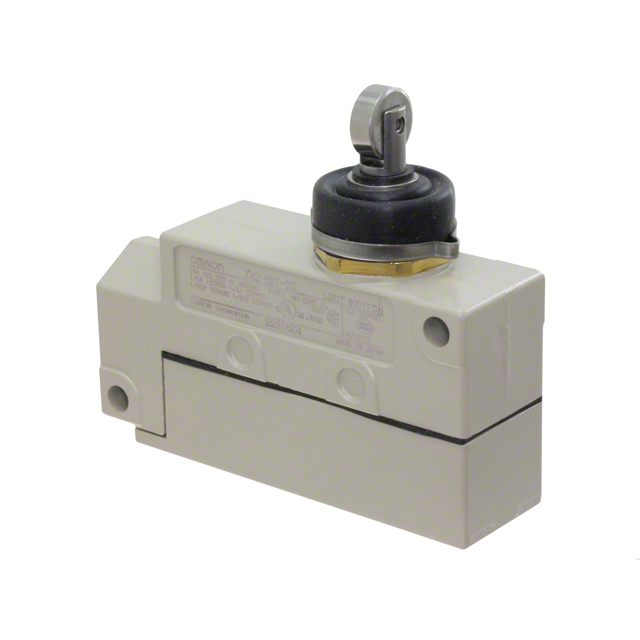

Omron Automation and Safety ZV2-N21-2S	-10 °C	80 °C	Cross Roller Plunger	0.04 in	1 mm	Chassis Mount	500000 Cycles	125 VDC	15 A 500 mA	35.7 mm	1.405 in	10000000 Cycles	Screw Terminal	On-Mom	0.5 kgf	0.005 in	0.13 mm	SPDT	IP65 - Dust Tight Water Resistant	0.138 "	3.5 mm	125 V
