NHD-0108 Series

Catalog

LCD MOD 8 DIG 8 X 1 REFLECTIVE

Part	Interface	Background Color	Text Color	Display Format [y]	Display Format [x]	Viewing Area [y]	Viewing Area [x]	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Dot Size [y]	Dot Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Controller Type	Display Type	Character Format [x]	Character Format [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters	Character Size [y]	Character Size [z]	Display Mode	Backlight	Voltage - Supply	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]	Dot Size [custom]

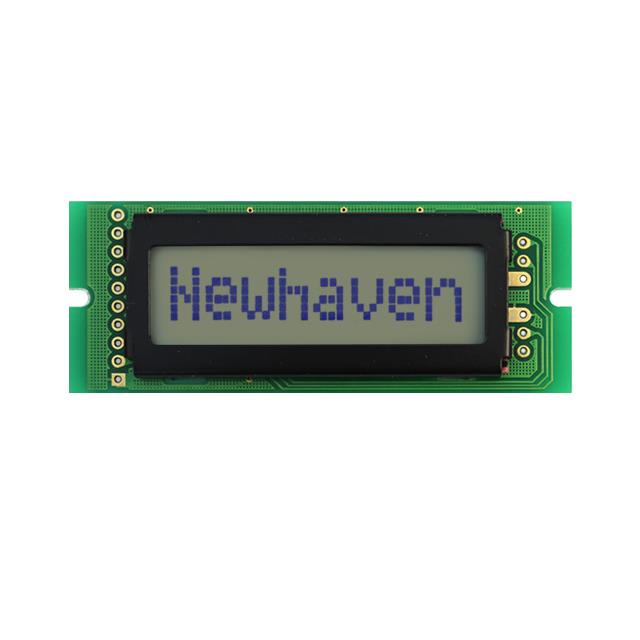

Newhaven Display Intl NHD-0108CZ-RN-GBW	Parallel	Gray	Blue	1	8	13.8 mm	45.2 mm	69 mm	8.5 mm	27 mm	0.92 mm	0.8 mm	-20 ░C	70 °C	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots	5.5 V	4.7 V	8	4.2 mm	7.71 mm	Reflective

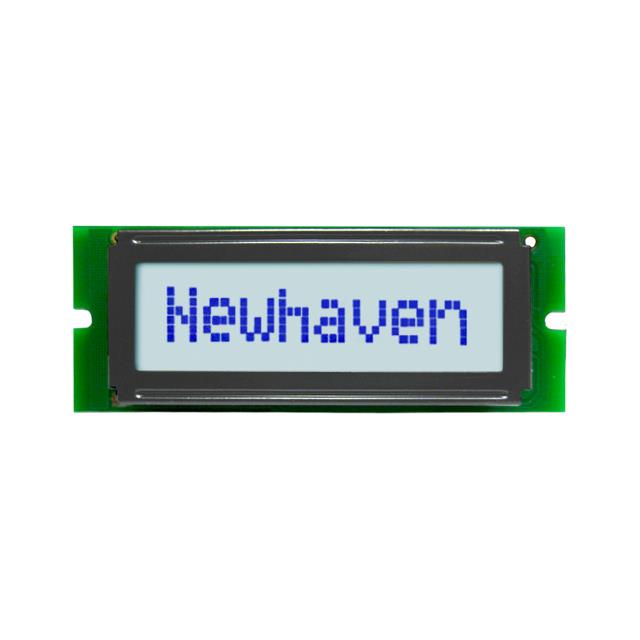

Newhaven Display Intl NHD-0108CZ-FSW-GBW-33V3	Parallel	Gray	Blue	1	8	13.5 mm	45 mm	69 mm	13 mm	27 mm	0.92 mm	0.8 mm	-20 ░C	70 °C	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots			8	4.2 mm	7.71 mm	Transflective	LED - White	3.3 V

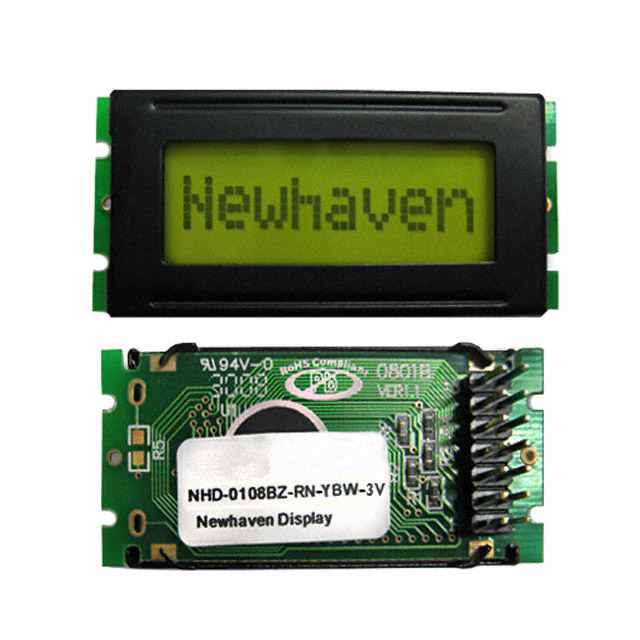

Newhaven Display Intl NHD-0108BZ-RN-YBW-3V	Parallel	Green	Gray	1	8	12.6 mm	35 mm	53 mm	11 mm	24.2 mm			-20 ░C	70 °C		STN - Super-Twisted Nematic	5 Dots	8 Dots	3.3 V	2.7 V	8	3.4 mm	7.1 mm	Reflective			0.8 mm	0.6 mm

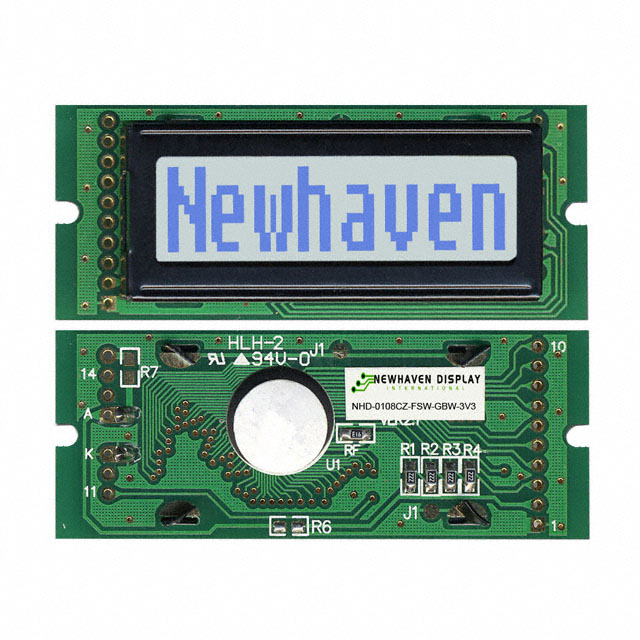

Newhaven Display Intl NHD-0108CZ-FSW-GBW-3V3	Parallel	Gray	Blue	1	8	13.8 mm	45.2 mm	69 mm	13 mm	27 mm	0.92 mm	0.8 mm	-20 ░C	70 °C		STN - Super-Twisted Nematic	5 Dots	8 Dots			8	4.2 mm	7.71 mm	Transflective	LED - White	3.3 V

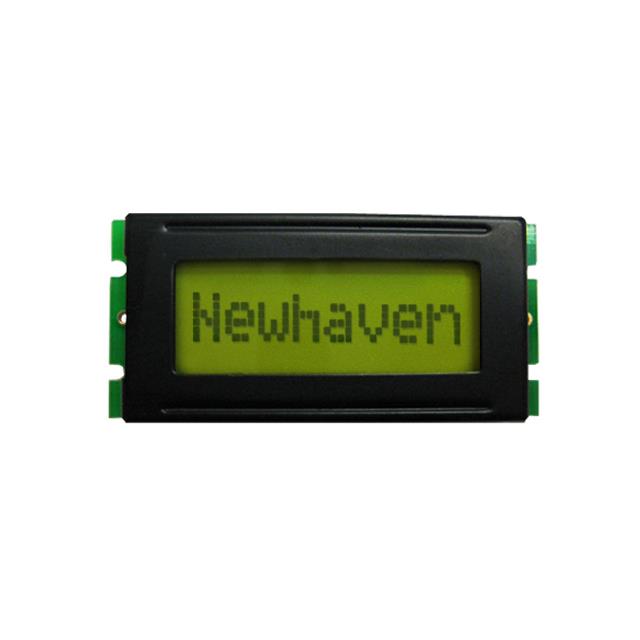

Newhaven Display Intl NHD-0108BZ-RN-YBW	Parallel	Green	Gray	1	8	12.6 mm	35 mm	53 mm	11 mm	24.2 mm			-20 ░C	70 °C	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots	5.5 V	4.7 V	8	3.4 mm	7.1 mm	Reflective			0.8 mm	0.6 mm

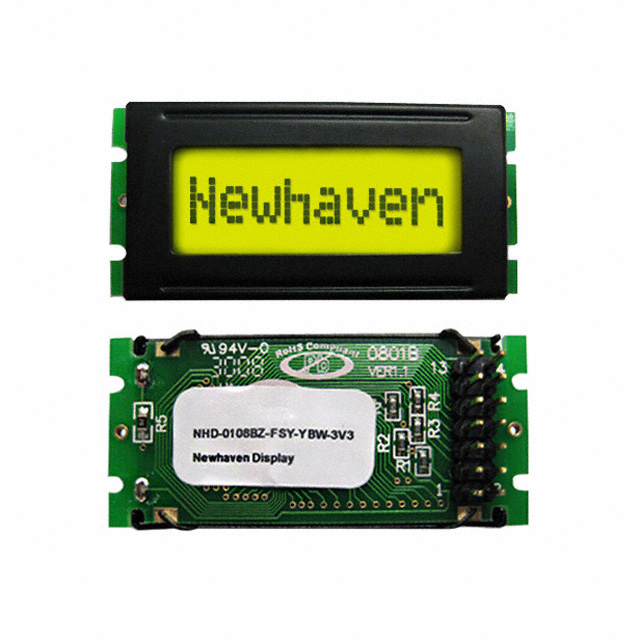

Newhaven Display Intl NHD-0108BZ-FSY-YBW-3V3	Parallel	Green	Gray	1	8	12.6 mm	35 mm	53 mm	11 mm	24.2 mm			-20 ░C	70 °C		STN - Super-Twisted Nematic	5 Dots	8 Dots	3.3 V	2.7 V	8	3.4 mm	7.1 mm	Transflective			0.8 mm	0.6 mm

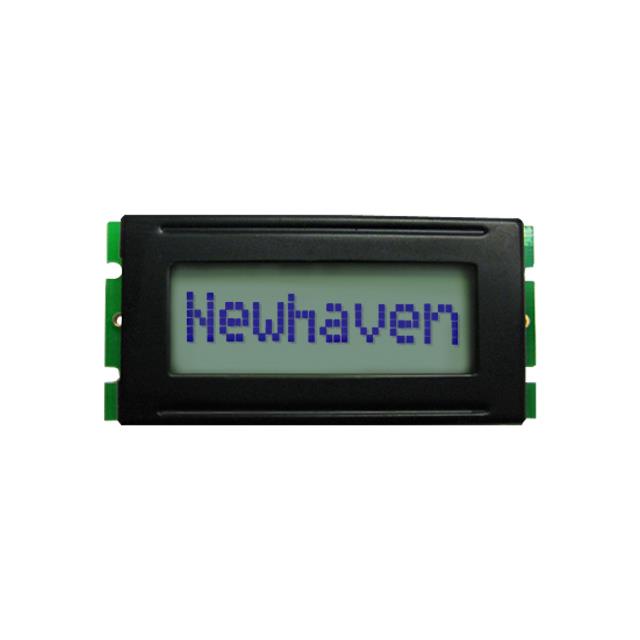

Newhaven Display Intl NHD-0108BZ-RN-GBW	Parallel	Gray	Blue	1	8	12.6 mm	35 mm	53 mm	11 mm	24.2 mm			-20 ░C	70 °C	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots	5.5 V	4.7 V	8	3.4 mm	7.1 mm	Reflective			0.8 mm	0.6 mm

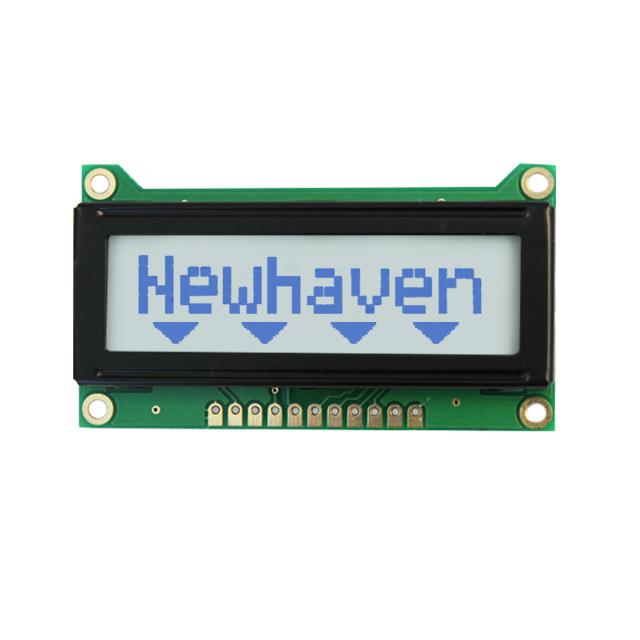

Newhaven Display Intl NHD-0108HZ-FSW-GBW	Parallel	Gray	Blue	1	8	14.7 mm	51.2 mm	60.7 mm	6.25 mm	33.85 mm			-20 ░C	70 °C	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots	3.5 V	3.1 V	8	5.02 mm	7.28 mm	Transflective	LED - White				0.94 mm	0.84 mm
Newhaven Display Intl NHD-0108BZ-FSY-YBW-33V3	Parallel	Green	Blue	1	8	12.6 mm	35 mm	53 mm	11 mm	24.2 mm			-20 ░C	70 °C	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots			8	3.4 mm	7.1 mm	Transflective		3.3 V	0.8 mm	0.6 mm

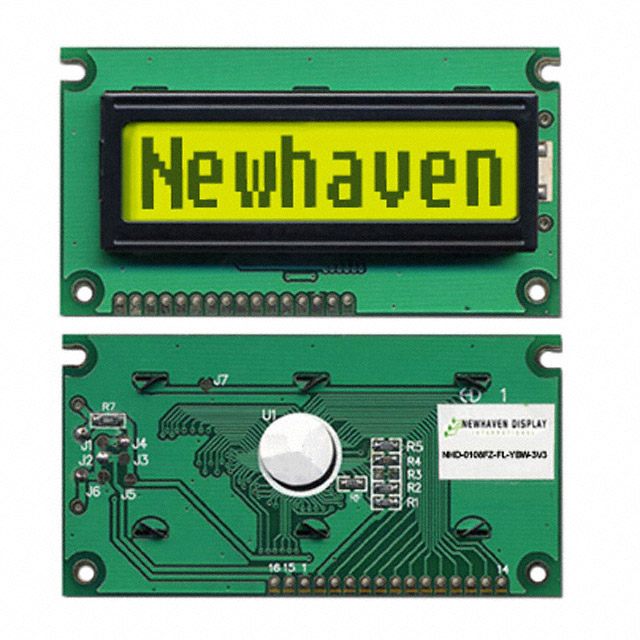

Newhaven Display Intl NHD-0108FZ-FL-YBW-3V3	Parallel	Green	Gray	1	8	16.4 mm	64.5 mm	84 mm	13.5 mm	44 mm	1.3 mm	1.25 mm	-20 ░C	70 °C		STN - Super-Twisted Nematic	5 Dots	8 Dots	3.3 V	2.7 V	8	6.45 mm	10.75 mm	Transflective
