HFW12R Series

Catalog

CONN FFC FPC TOP 12POS 1MM R/A

Part	Mating Cycles	Housing Color	Termination	Contact Material	Connector/Contact Type	Voltage Rating	Housing Material	Number of Positions	Pitch	Pitch	Contact Finish	Mounting Type	FFC, FCB Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Cable End Type	Current Rating (Amps)	Features

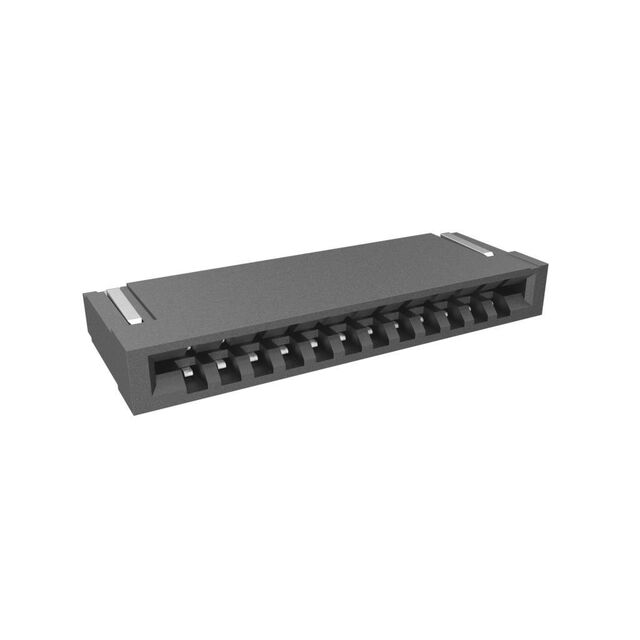

Amphenol ICC (FCI) HFW12R-2STE1H1LF	30	Black	Solder	Phosphor Bronze	Contacts Top	100 V	Liquid Crystal Polymer (LCP) Halogen Free	12	1 mm	0.039 in	Tin	Right Angle Surface Mount	0.3 mm	-55 C	105 ░C	FFC FPC	1.9 mm	0.075 in	UL94 V-0	Straight or Tapered

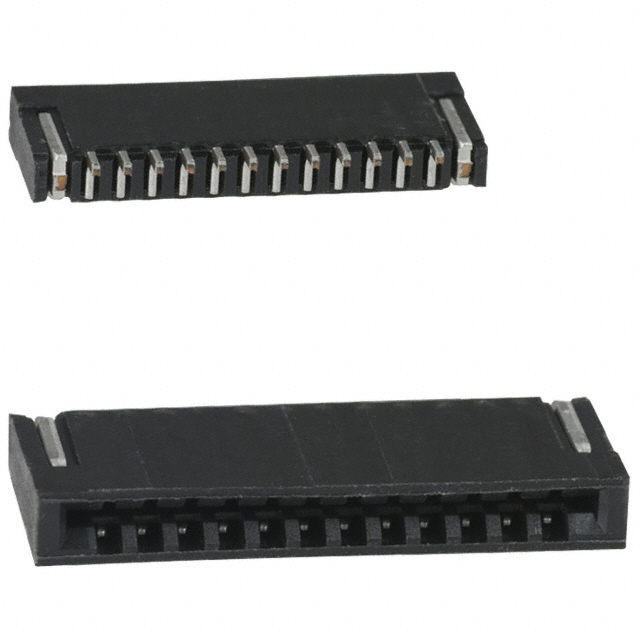

Amphenol ICC (FCI) HFW12R-2STE1LF	30	Black	Solder	Phosphor Bronze	Contacts Top	100 V	Glass Filled Nylon 6T Polyamide (PA6T)	12	1 mm	0.039 in	Tin	Right Angle Surface Mount	0.3 mm	-55 C	105 ░C	FFC FPC	1.9 mm	0.075 in	UL94 V-0	Straight or Tapered
Amphenol ICC (FCI) HFW12R-2STE1MTLF	30	Black	Solder	Phosphor Bronze	Contacts Top	50 V	Glass Filled Thermoplastic	12	1 mm	0.039 in	Tin	Right Angle Surface Mount	0.3 mm	-55 C	105 ░C	FFC FPC	3.1 mm	0.122 in	UL94 V-0	Straight or Tapered	0.5 A	Solder Retention
