LSA61 Series

Manufacturer: ConductRF

Catalog

CBL ASSY 1.85MM PLUG TO PLUG 6"

Part	Color	Style [Min]	Style [Max]	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	2nd Contact Gender	1st Contact Gender	Cable Type [diameter]	Cable Type	Frequency - Max [Max]	Features	1st Connector	2nd Connector	1st Connector Mounting Type	Connector Impedance	Overall Impedance	Length	Length

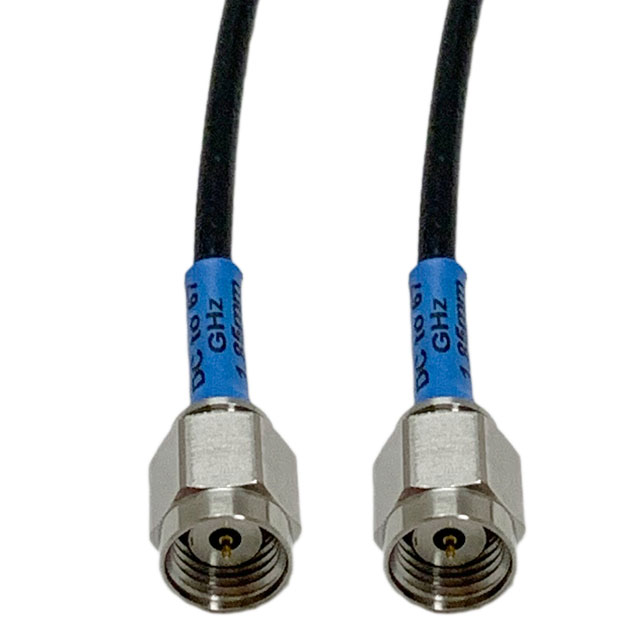

ConductRF LSA61-B1B1-S06	Black	1.85 mm	1.85 mm	Free Hanging (In-Line)	105 ░C	-65 ░C	152.4 mm	6 "	Male	Male	2.18 mm	Coaxial Cable	67 GHz	Shielded	1.85 mm	1.85 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms
ConductRF LSA61-C1C1-S18	Black	2.4 mm	2.4 mm	Free Hanging (In-Line)	105 ░C	-65 ░C			Male	Male	2.18 mm	Coaxial Cable	50 GHz	Shielded	2.4 mm	2.4 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms	457.2 mm	18 in

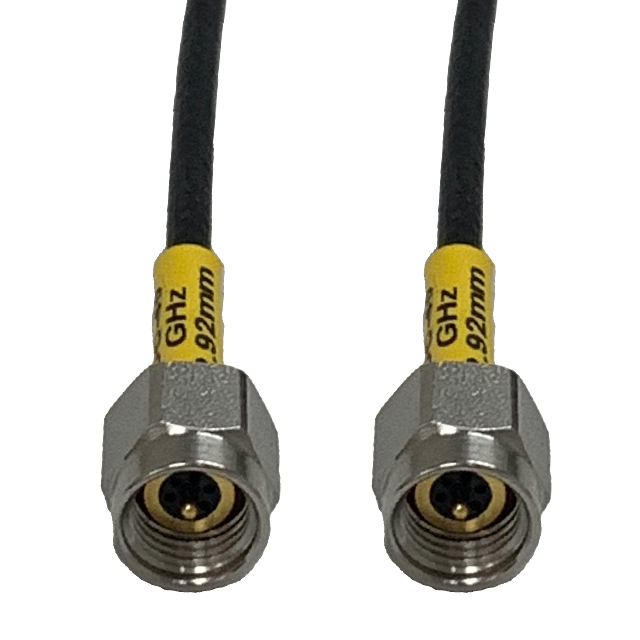

ConductRF LSA61-D1D1-S06	Black	2.92 mm	2.92 mm	Free Hanging (In-Line)	105 ░C	-65 ░C	152.4 mm	6 "	Male	Male	2.18 mm	Coaxial Cable	40 GHz	Shielded	2.92 mm	2.92 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms
ConductRF LSA61-C1C1-S12	Black	2.4 mm	2.4 mm	Free Hanging (In-Line)	105 ░C	-65 ░C	304.8 mm	12 in	Male	Male	2.18 mm	Coaxial Cable	50 GHz	Shielded	2.4 mm	2.4 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms
ConductRF LSA61-B1B1-S18	Black	1.85 mm	1.85 mm	Free Hanging (In-Line)	105 ░C	-65 ░C			Male	Male	2.18 mm	Coaxial Cable	67 GHz	Shielded	1.85 mm	1.85 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms	457.2 mm	18 in
ConductRF LSA61-B1B1-S12	Black	1.85 mm	1.85 mm	Free Hanging (In-Line)	105 ░C	-65 ░C	304.8 mm	12 in	Male	Male	2.18 mm	Coaxial Cable	67 GHz	Shielded	1.85 mm	1.85 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms

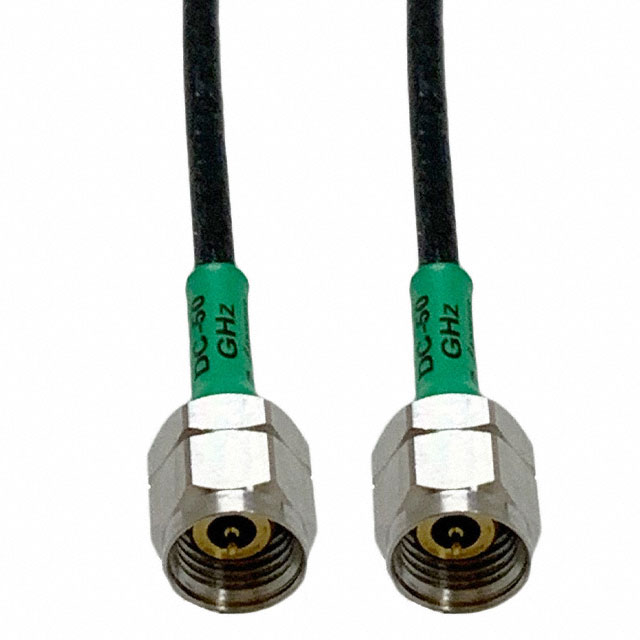

ConductRF LSA61-C1C1-S06	Black	2.4 mm	2.4 mm	Free Hanging (In-Line)	105 ░C	-65 ░C	152.4 mm	6 "	Male	Male	2.18 mm	Coaxial Cable	50 GHz	Shielded	2.4 mm	2.4 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms
ConductRF LSA61-D1D1-S18	Black	2.92 mm	2.92 mm	Free Hanging (In-Line)	105 ░C	-65 ░C			Male	Male	2.18 mm	Coaxial Cable	40 GHz	Shielded	2.92 mm	2.92 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms	457.2 mm	18 in
ConductRF LSA61-D1D1-S12	Black	2.92 mm	2.92 mm	Free Hanging (In-Line)	105 ░C	-65 ░C	304.8 mm	12 in	Male	Male	2.18 mm	Coaxial Cable	40 GHz	Shielded	2.92 mm	2.92 mm	Free Hanging (In-Line)	50 Ohms	50 Ohms
