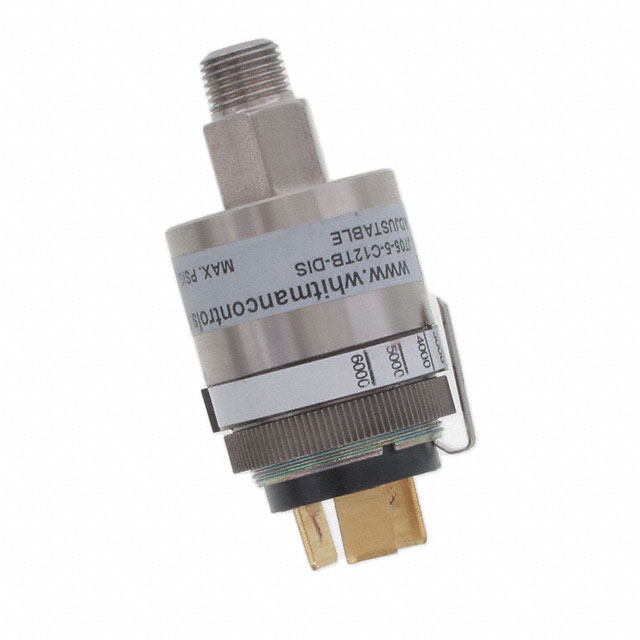

J705-5 Series
Manufacturer: Whitman Controls, LLC
Beta
⌘K
PRESSURE SWITCH 600-5000 PSIG
| Part | Port Style | Operating Pressure [Min] | Operating Pressure [Max] | Pressure Type | Port Size | Port Size | Port Size | Package / Case | Output Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Maximum Pressure | Maximum Pressure | Accuracy | Accuracy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Whitman Controls, LLC | Threaded | 700 PSI 4826.33 kPa | 6000 PSI 41368.54 kPa | Switch | 0.125 in | Male NPT | 3.18 mm | Cylinder Threaded | SPDT | Quick Connect - 0.250" (6.3mm) | 107 °C | -54 °C | 6000 PSI | 41368.54 kPa | 2068.43 kPa | 300 PSI |
