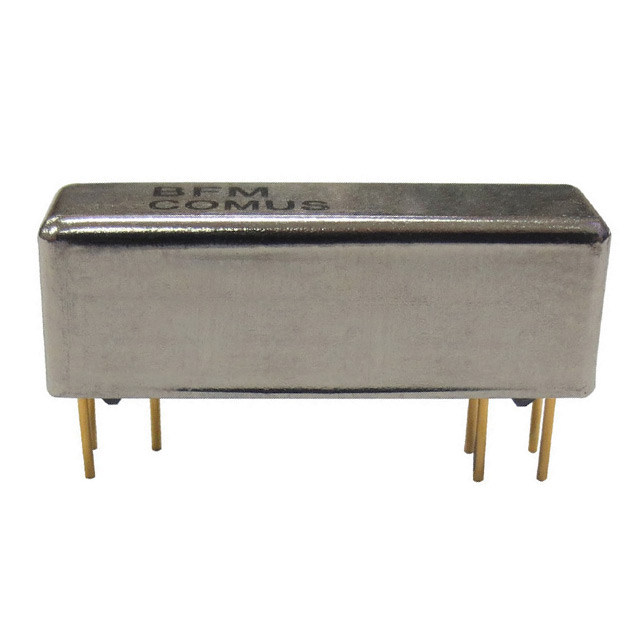

BFM-1 Series
Manufacturer: Comus International
Beta
⌘K
RELAY REED SPST .5A 12V
| Part | Coil Resistance | Release Time | Operating Temperature (Max) | Operating Temperature (Min) | Switching Voltage DC (Max) | Must Operate Voltage | Coil Current | Features | Must Release Voltage | Contact Rating (Current) | Mounting Type | Form A Count | Contact Form | Coil Voltage | Coil Type | Contact Material | Termination Style | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 1.5 kOhms | 0.1 ms | 85 °C | -25 °C | 200 VDC | 9 VDC | 8 mA | Electrostatic Shield | 1 VDC | 500 mA | Through Hole | 1 | SPST-NO | 12 VAC | Non Latching | Ruthenium (Ru) | PC Pin | 0.5 ms |
Comus International | 240 Ohms | 0.1 ms | 85 °C | -25 °C | 200 VDC | 2.5 VDC | 20.8 mA | 0.4 VDC | 500 mA | Through Hole | 1 | SPST-NO | 5 V | Non Latching | Ruthenium (Ru) | PC Pin | 0.5 ms |
