LPPB071 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 7POS 0.05 GOLD PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insulation Material | Contact Material | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Fastening Type | Mounting Type | Contact Type | Material Flammability Rating | Number of Positions | Contact Finish - Mating | Number of Rows | Contact Finish Thickness - Mating | Termination | Contact Finish - Post | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

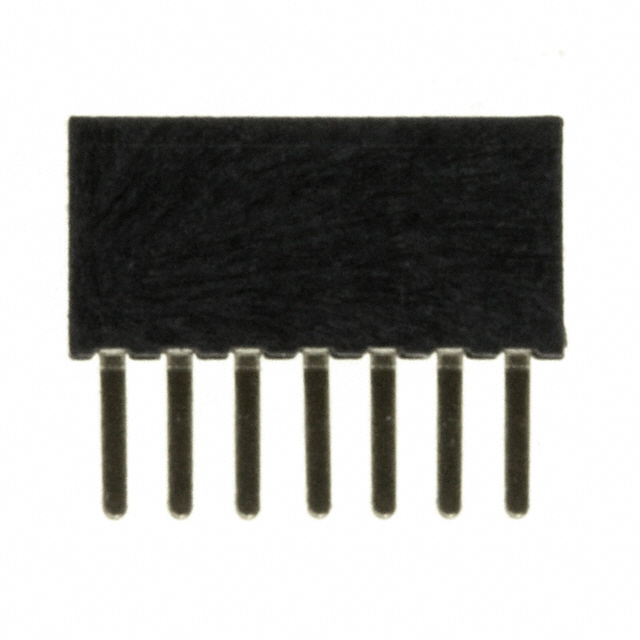

 Sullins Connector Solutions | -40 C | 105 ░C 125 °C | Square | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Flash | 1.27 mm | 0.05 in | Header | All | 0.177 in | 4.5 mm | 0.118 in | 3 mm | Push-Pull | Through Hole | Female Socket | UL94 V-0 | 7 | Gold | 1 | Flash | Solder | Gold | |

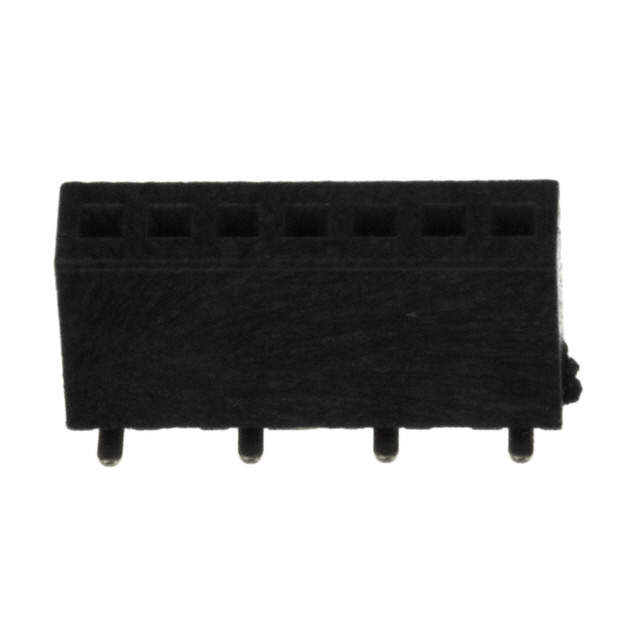

 Sullins Connector Solutions | -40 C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Flash | 1.27 mm | 0.05 in | Header Top or Bottom Entry | All | 0.183 in | 4.65 mm | Push-Pull | Surface Mount | Female Socket | UL94 V-0 | 7 | Gold | 1 | Flash | Solder | Gold | Black |
