PPTC272 Series

Catalog

CONN HDR 54POS 0.1 TIN PCB R/A

Part	Insulation Material	Contact Material	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Number of Positions	Fastening Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Connector Type	Contact Type	Current Rating (Amps)	Contact Finish - Post	Number of Positions Loaded	Termination	Mounting Type	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height

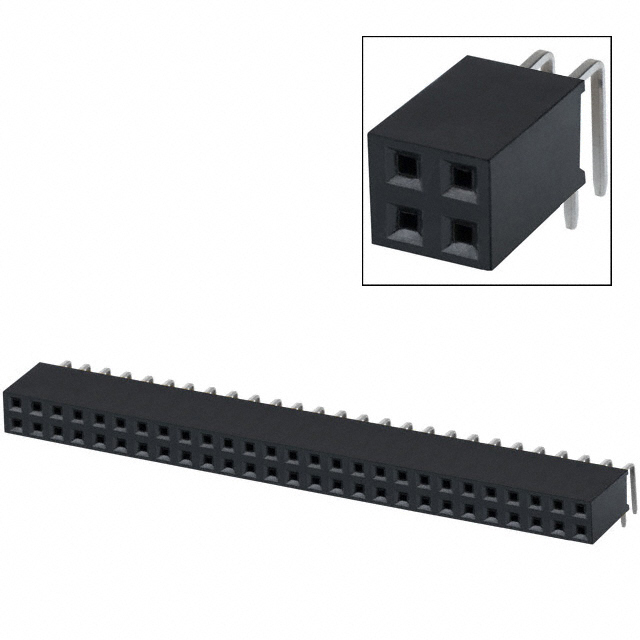

Sullins Connector Solutions PPTC272LJBN	Polyester	Phosphor Bronze	Square	0.1 in	2.54 mm	250 V	2	0.2 in	5.08 mm	Black	-40 C	105 ░C	0.124 in	3.15 mm	54	Push-Pull	UL94 V-0	0.1 "	2.54 mm	Header	Female Socket	3 A	Tin	All	Solder	Right Angle Through Hole

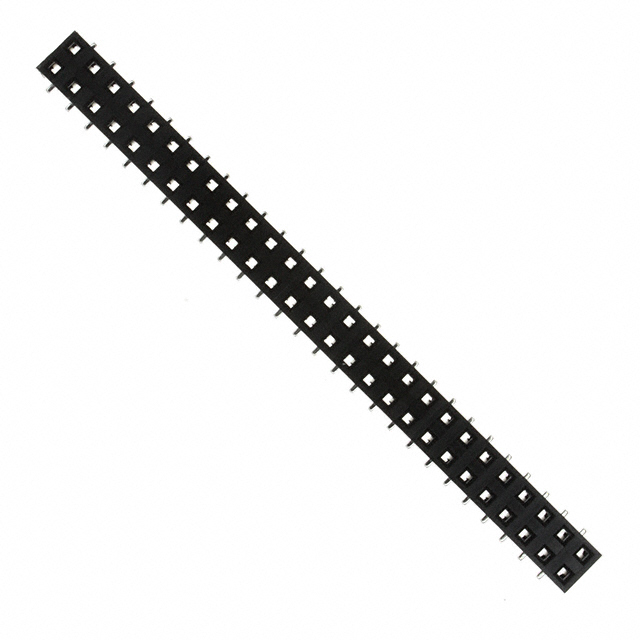

Sullins Connector Solutions PPTC272KFMS	Polyester	Phosphor Bronze	Square	0.1 in	2.54 mm	250 V	2	0.299 "		Black	-40 C	125 °C			54	Push-Pull	UL94 V-0	0.1 "	2.54 mm	Header	Female Socket	3 A	Tin	All	Solder	Surface Mount	7.6 mm

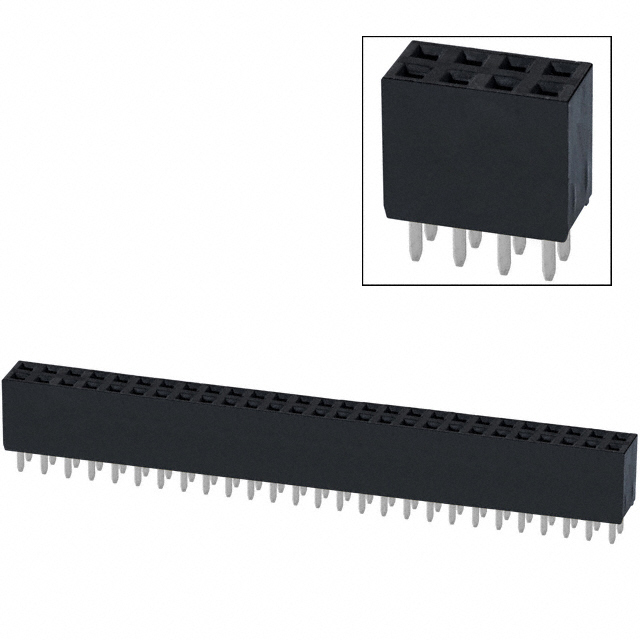

Sullins Connector Solutions PPTC272LFBN	Polyester	Phosphor Bronze	Square	0.1 in	2.54 mm	250 V	2			Black	-40 C	105 ░C			54	Push-Pull	UL94 V-0	0.1 "	2.54 mm	Header	Female Socket	3 A	Tin	All	Solder	Through Hole	8.51 mm	0.126 "	3.2 mm	0.335 "
