M80-5S1 Series

Catalog

17+17 POS. MALE DIL VERTICAL SMT CONN. 101LOK ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Contact Shape	Contact Type	Voltage Rating	Number of Positions [custom]	Shrouding	Contact Finish - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Style	Current Rating (Amps)	Contact Finish - Post	Features	Insulation Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Termination	Fastening Type	Mounting Type	Number of Positions	Insulation Height [z]	Insulation Height [z]

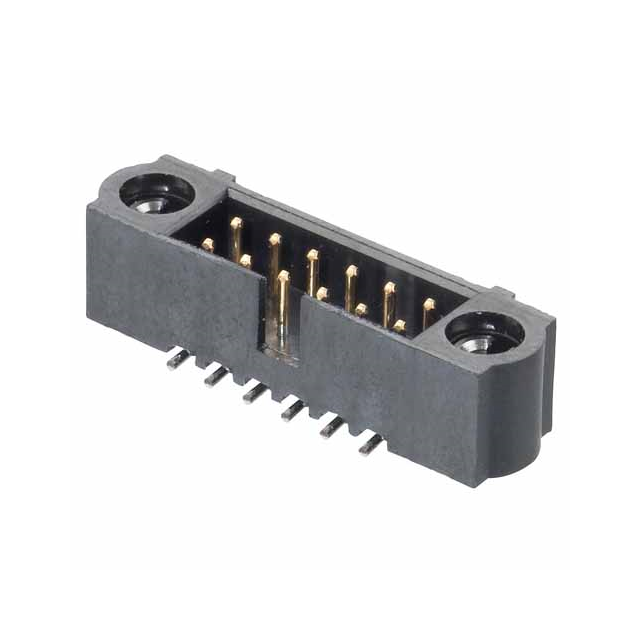

Harwin Inc. M80-5S13442MC	7.55 mm 8.05 mm	12 µin	0.3 µm	Black	All	5.6 mm	0.22 in	UL94 V-0	Circular	Male Pin	800 VAC	34	Shrouded - 4 Wall	Gold	Header	-55 C	125 °C	Phosphor Bronze	Board to Board Cable	2.2 A	Tin	Keying Slot Mating Flange	Polyphenylene Sulfide (PPS) Glass Filled	29.5 µin	0.75 µm	2 mm	0.079 in	0.079 "	2 mm	2	Solder	Threaded	Surface Mount

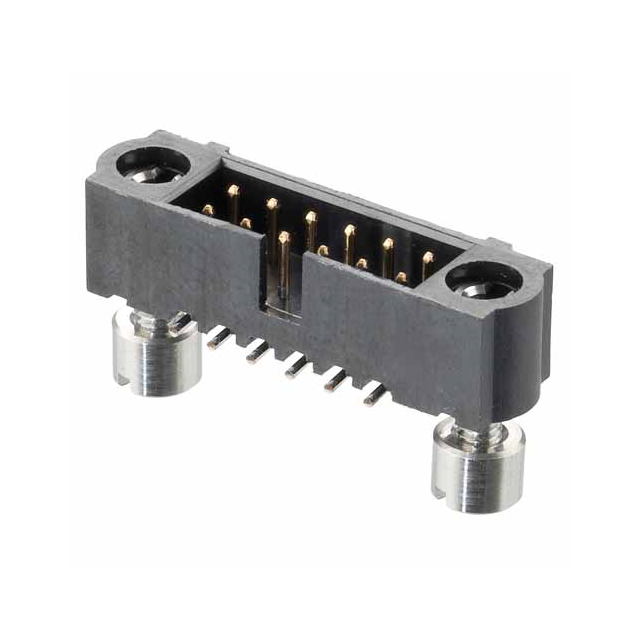

Harwin Inc. M80-5S10442ME	7.55 mm 8.05 mm	12 µin	0.3 µm	Black	All			UL94 V-0	Circular	Male Pin	800 VAC		Shrouded - 4 Wall	Gold	Header	-55 C	121 C	Phosphor Bronze	Board to Board Cable	2.2 A	Tin	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Polyphenylene Sulfide (PPS) Glass Filled	29.5 µin	0.75 µm	2 mm	0.079 in	0.079 "	2 mm	2	Solder	Threaded	Surface Mount	4	5.95 mm	0.234 in
