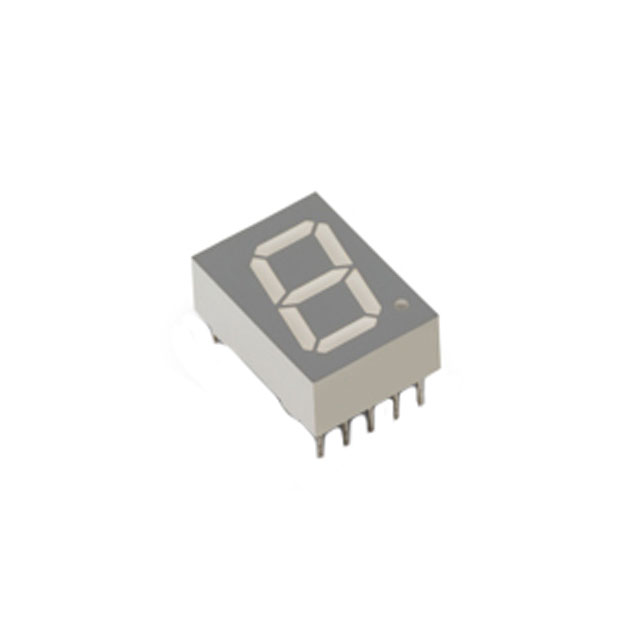

HDSP-H5 Series

Catalog

DISPLAY 7SEG 0.52" SGL RED 10DIP

Part	Color	Current - Test	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Display Type	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Common Pin	Wavelength - Peak	Package / Case	Package / Case	Power Dissipation (Max) [Max]	Millicandela Rating	Package / Case [x]	Package / Case [x]
Broadcom Limited HDSP-H5A3	Red	20 mA	6.9 mm	0.272 in	0.693 in	17.6 mm	0.488 "	12.4 mm	7-Segment	2 V	0.52 in	13.21 mm	1	Common Cathode	644 nm	0.6 in 15.24 mm	10-DIP	52 mW	35 mcd
Broadcom Limited HDSP-H5E3	Red	20 mA	6.9 mm	0.272 in	0.693 in	17.6 mm	0.488 "	12.4 mm	7-Segment	2 V	0.52 in	13.21 mm	1	Common Cathode	634 nm	0.6 in 15.24 mm	10-DIP	52 mW	40 mcd
Broadcom Limited HDSP-H511	Green	10 mA	17.02 mm	0.67 in	0.315 in	8 mm	0.495 "	12.57 mm	7-Segment	2.1 V	0.56 in	14.22 mm	1	Common Anode	566 nm		18-DIP	105 mW	2.5 mcd	15.24 mm	0.6 in
Broadcom Limited HDSP-H5A1	Red	20 mA	6.9 mm	0.272 in	0.693 in	17.6 mm	0.488 "	12.4 mm	7-Segment	2 V	0.52 in	13.21 mm	1	Common Anode	644 nm	0.6 in 15.24 mm	10-DIP	52 mW	35 mcd
Broadcom Limited HDSP-H5E1	Red	20 mA	6.9 mm	0.272 in	0.693 in	17.6 mm	0.488 "	12.4 mm	7-Segment	2 V	0.52 in	13.21 mm	1	Common Anode	634 nm	0.6 in 15.24 mm	10-DIP	52 mW	40 mcd
