202405 Series
Manufacturer: Molex
Beta
⌘K

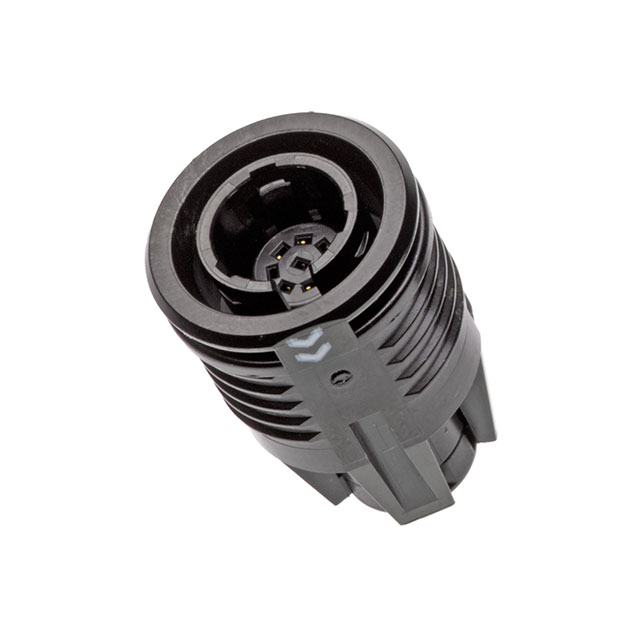

CONN RCPT FMALE 8POS SOLDER CUP
| Part | Applications | Connector Type | Color | Voltage Rating | Fastening Type | Current Rating (Amps) | Ingress Protection | Number of Positions | Shell Material | Insert Material | Orientation | Contact Material | Primary Material | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Medical | Receptacle Female Sockets | Black | 300 VAC | Latch Lock Push-Pull | 1.6 A | IP50 - Dust Protected | 8 | Polyphenylsulfone (PPSU) | Polyphenylsulfone (PPSU) | Keyed | Copper Alloy | Plastic | Gold | -40 C | 105 ░C | Free Hanging (In-Line) | 0.76 Ám | 30 Áin |
