PEC12 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Style	Number of Positions	Termination	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Type	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Fastening Type	Number of Rows	Contact Material	Current Rating (Amps)	Shrouding	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Contact Length - Post [custom]	Contact Length - Post [custom]

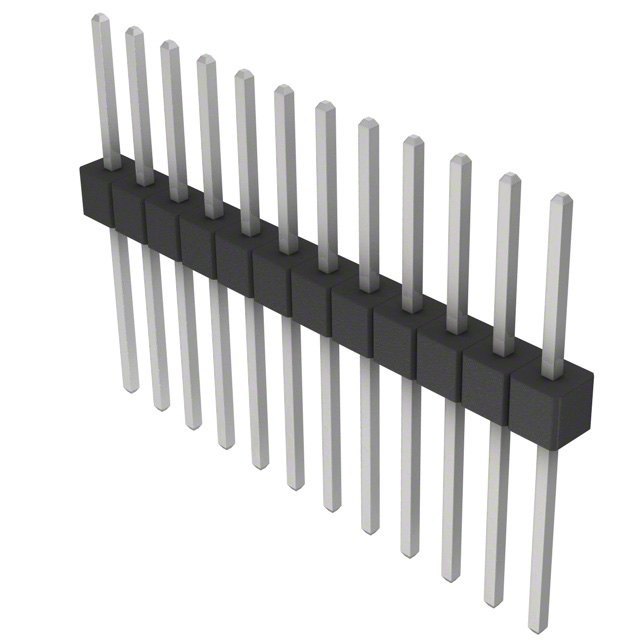

Sullins Connector Solutions PEC12SFDN	2.54 µm	100 µin	Black	10.67 mm	0.42 in	Board to Board Cable	12	Solder	Header Breakaway	Tin	0.1 in	2.54 mm	Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin	21.29 mm	0.838 in	UL94 V-0	Polybutylene Terephthalate (PBT)	8.08 mm	0.318 in	100 çin	2.54 çm	All	Push-Pull	1	Phosphor Bronze	3 A	Unshrouded	Through Hole
Sullins Connector Solutions PEC12DBCN	2.54 µm	100 µin	Black	7.62 mm	0.3 in	Board to Board Cable	24	Solder	Header Breakaway	Tin			Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin			UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull		Phosphor Bronze	3 A	Unshrouded	Right Angle Through Hole	0.1 in	2.54 mm	6.1 mm	0.24 in	2
Sullins Connector Solutions PEC12DAHN	2.54 µm	100 µin	Black	20.83 mm	0.82 in	Board to Board Cable	24	Solder	Header Breakaway	Tin	0.1 in	2.54 mm	Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin	29.21 mm	1.15 in	UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull		Phosphor Bronze	3 A	Unshrouded	Through Hole	0.1 in	2.54 mm			2

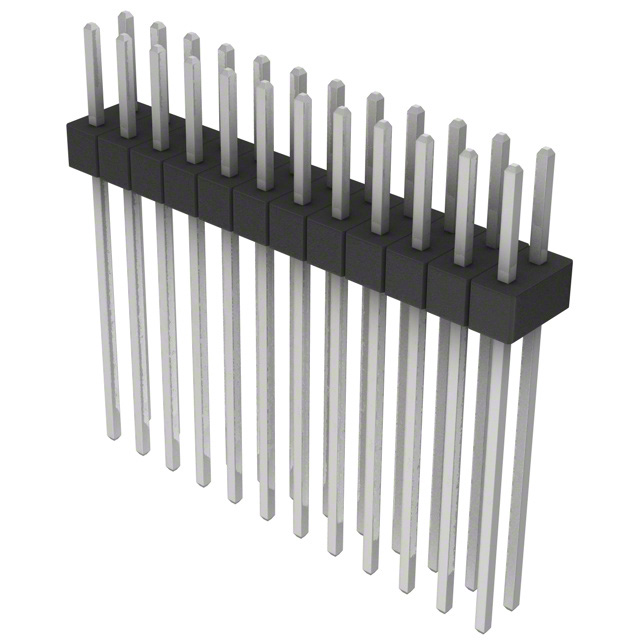

Sullins Connector Solutions PEC12DAGN	2.54 µm	100 µin	Black	18.29 mm	0.72 "	Board to Board Cable	24	Solder	Header Breakaway	Tin	0.1 in	2.54 mm	Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin	26.67 mm	1.05 in	UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull		Phosphor Bronze	3 A	Unshrouded	Through Hole	0.1 in	2.54 mm			2

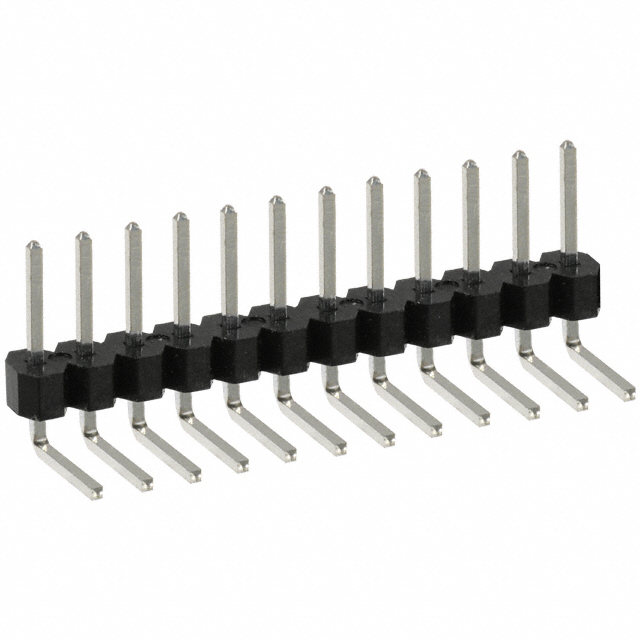

Sullins Connector Solutions PEC12SBBN	2.54 µm	100 µin	Black			Board to Board Cable	12	Solder	Header Breakaway	Tin	0.14 in	3.56 mm	Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin			UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull	1	Phosphor Bronze	3 A	Unshrouded	Right Angle Through Hole						5.08 mm	0.2 "
Sullins Connector Solutions PEC12DBBN	2.54 µm	100 µin	Black			Board to Board Cable	24	Solder	Header Breakaway	Tin			Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin			UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull		Phosphor Bronze	3 A	Unshrouded	Right Angle Through Hole	0.1 in	2.54 mm	6.1 mm	0.24 in	2	5.08 mm	0.2 "

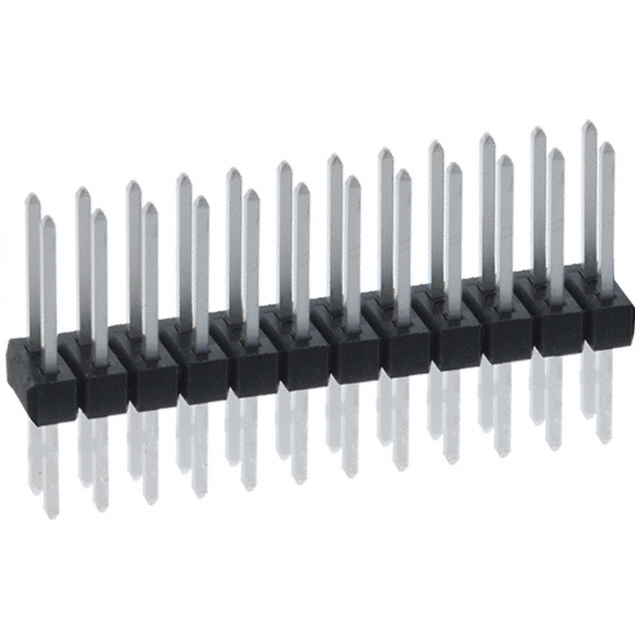

Sullins Connector Solutions PEC12DFBN	2.54 µm	100 µin	Black	5.58 mm	0.22 in	Board to Board Cable	24	Solder	Header Breakaway	Tin	0.1 in	2.54 mm	Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin	16.21 mm	0.638 in	UL94 V-0	Polybutylene Terephthalate (PBT)	8.08 mm	0.318 in	100 çin	2.54 çm	All	Push-Pull		Phosphor Bronze	3 A	Unshrouded	Through Hole	0.1 in	2.54 mm			2

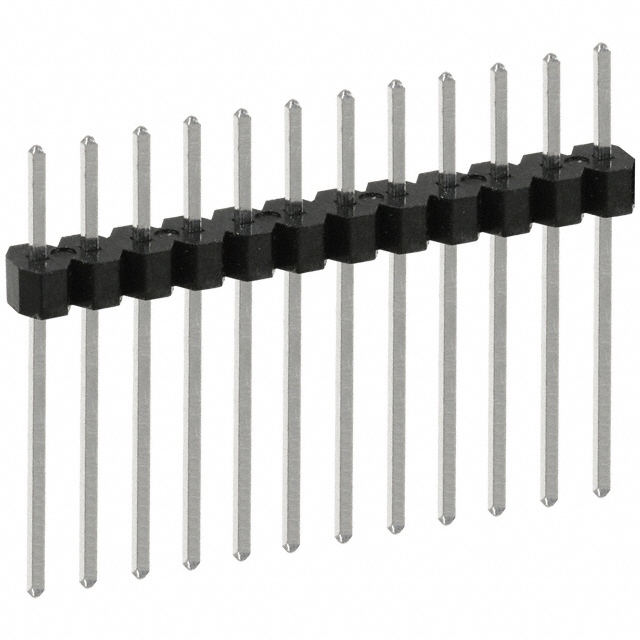

Sullins Connector Solutions PEC12SAFN	2.54 µm	100 µin	Black			Board to Board Cable	12	Solder	Header Breakaway	Tin	0.1 in	2.54 mm	Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin	24.13 mm	0.95 in	UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull	1	Phosphor Bronze	3 A	Unshrouded	Through Hole						15.75 mm	0.62 "
Sullins Connector Solutions PEC12SAGN	2.54 µm	100 µin	Black	18.29 mm	0.72 "	Board to Board Cable	12	Solder	Header Breakaway	Tin	0.1 in	2.54 mm	Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin	26.67 mm	1.05 in	UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull	1	Phosphor Bronze	3 A	Unshrouded	Through Hole
Sullins Connector Solutions PEC12DBAN	2.54 µm	100 µin	Black	2.54 mm	0.1 in	Board to Board Cable	24	Solder	Header Breakaway	Tin			Square	-65 ░C	125 °C	0.1 "	2.54 mm	Male Pin			UL94 V-0	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 in	100 çin	2.54 çm	All	Push-Pull		Phosphor Bronze	3 A	Unshrouded	Right Angle Through Hole	0.1 in	2.54 mm	6.1 mm	0.24 in	2
