333-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 9POS 0.156
| Part | Material - Insulation | Termination Rows | Read Out | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Number of Positions | Contact Finish | Gender | Number of Positions/Bay/Row | Flange Feature | Contact Material | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

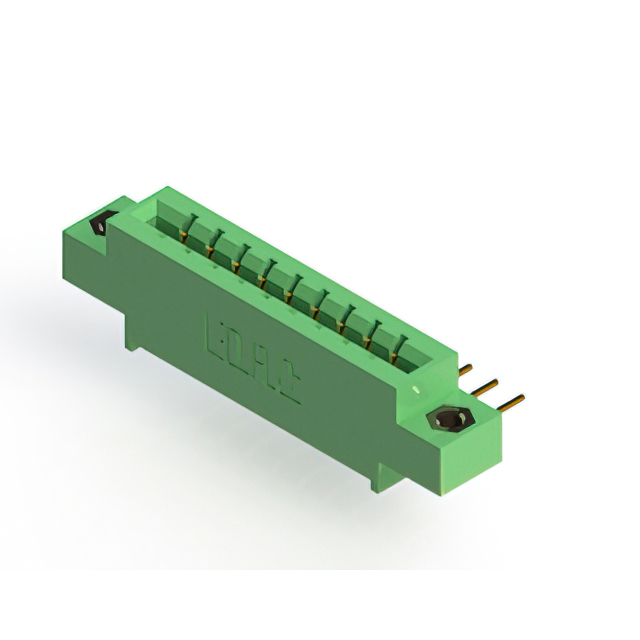

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Right Angle Through Hole | 1 | 9 | Gold | Female | 9 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Solder | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||

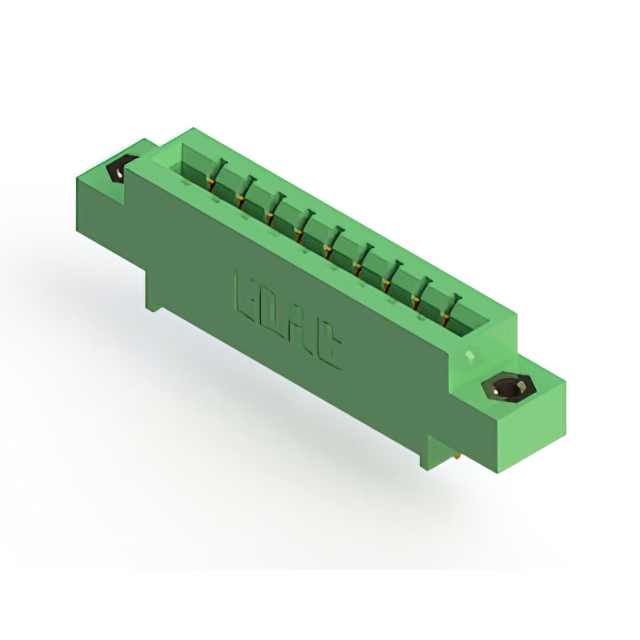

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | M3 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Solder | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||

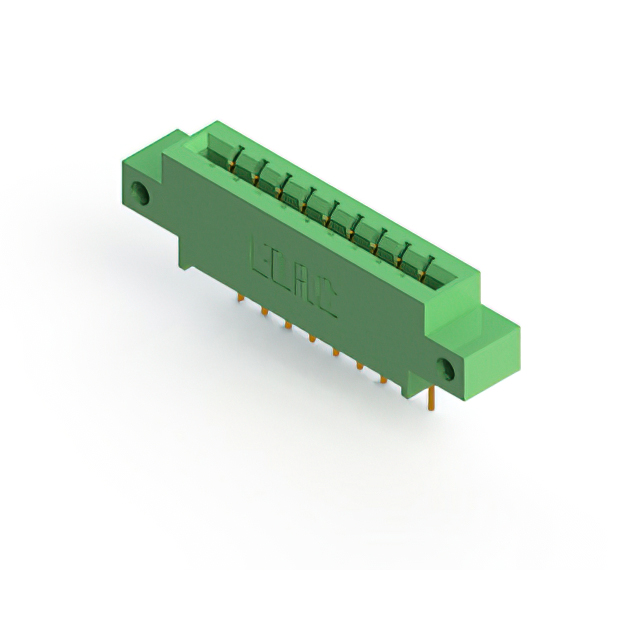

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | Flush Mount Top Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Solder | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 0.156 " | 3.96 mm |

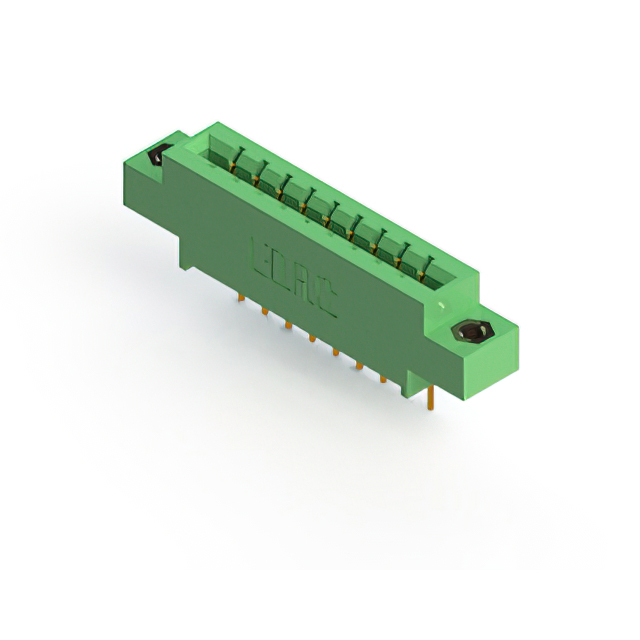

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Right Angle Through Hole | 1 | 9 | Gold | Female | 9 | M3 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Wire Wrap | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||

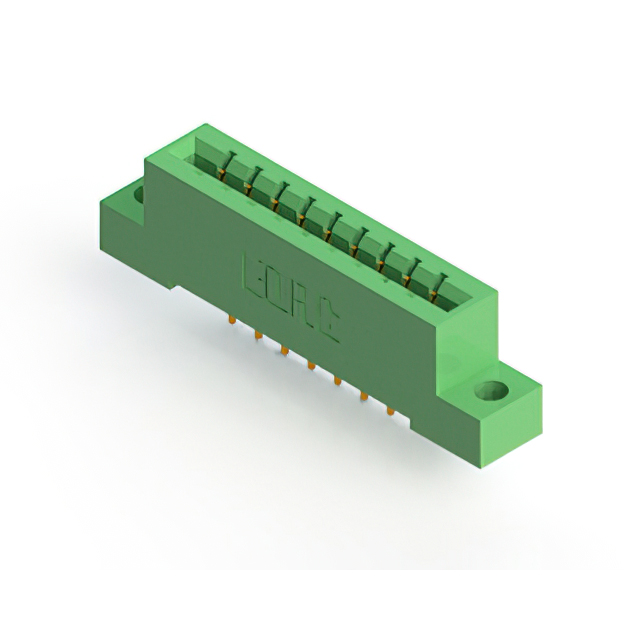

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | Side Mount Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Wire Wrap | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 0.128 " | 3.25 mm |

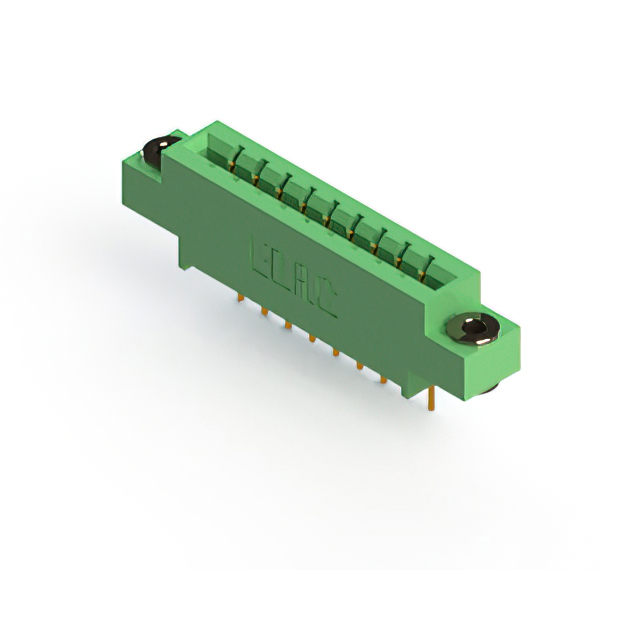

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Wire Wrap | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||

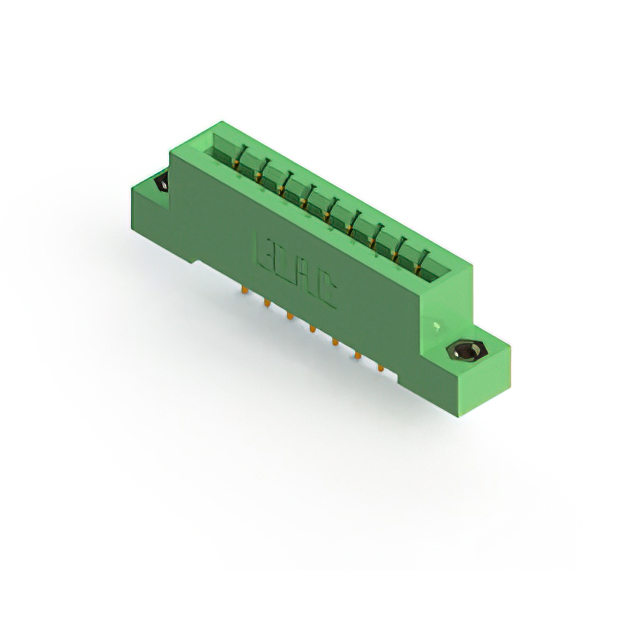

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Wire Wrap | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||

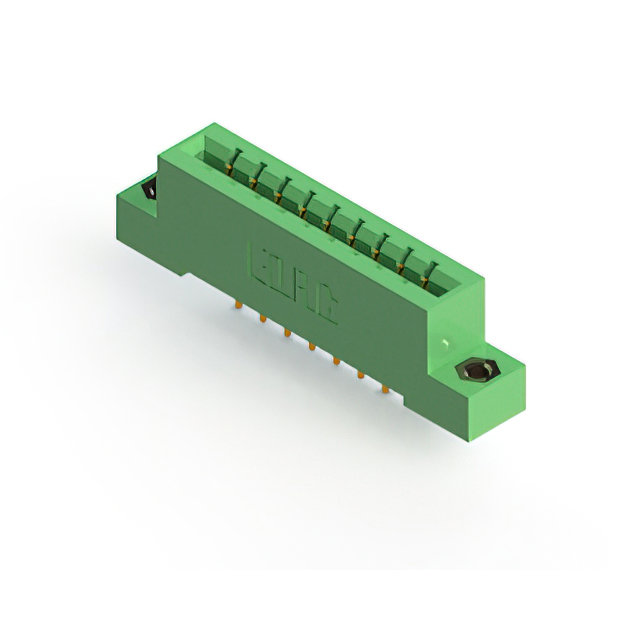

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | M3 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Wire Wrap | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Solder | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | 0.25 Ám | 10 Áin | Through Hole | 1 | 9 | Gold | Female | 9 | Side Mount Opening Unthreaded | Copper Alloy | Non Specified - Single Edge | -40 C | 105 ░C | Green | Solder | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 0.128 " | 3.25 mm |
