2842112 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

3P,2MM,BRK HDR,SRRT,2.8,0.76AU,T

Part	Contact Length - Post [x]	Contact Length - Post	Number of Rows	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Finish - Mating	Mounting Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Shrouding	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Voltage Rating	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Number of Positions Loaded	Number of Positions

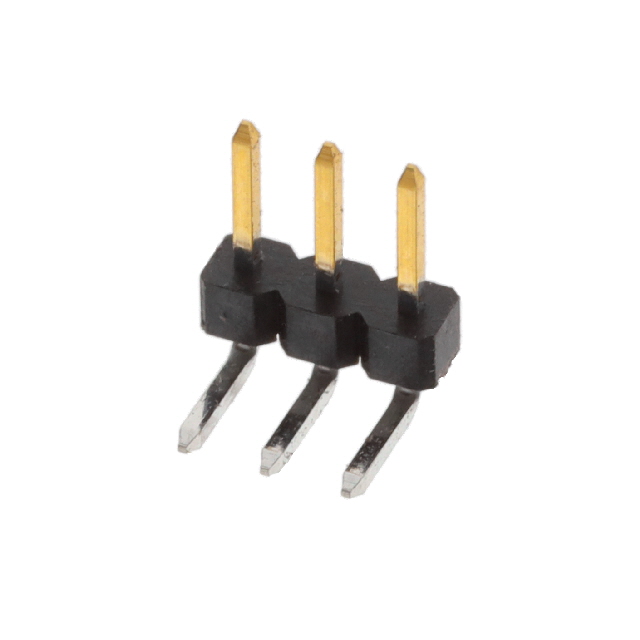

TE Connectivity Raychem Cable Protection 2842112-3	0.11 in	2.79 mm	1	2 A	0.079 in	2 mm	Solder	Gold	Through Hole Right Angle	Black	4 mm	0.157 in	UL94 V-0	Unshrouded	Square	Breakaway Header	30 Áin	0.76 Ám	Push-Pull	Tin	125 °C	-40 °C	Thermoplastic	125 VAC	Copper Alloy	1.5 mm	0.059 "	2 çm	78.7 çin	Male Pin	All

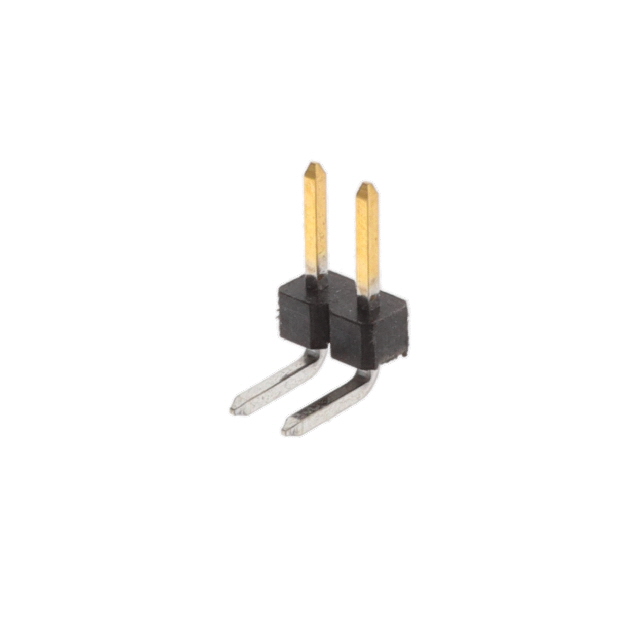

TE Connectivity Raychem Cable Protection 2842112-2	0.11 in	2.79 mm	1	2 A	0.079 in	2 mm	Solder	Gold	Through Hole Right Angle	Black	4 mm	0.157 in	UL94 V-0	Unshrouded	Square	Breakaway Header	30 Áin	0.76 Ám	Push-Pull	Tin	125 °C	-40 °C	Thermoplastic	125 VAC	Copper Alloy	1.5 mm	0.059 "	2 çm	78.7 çin	Male Pin	All	2

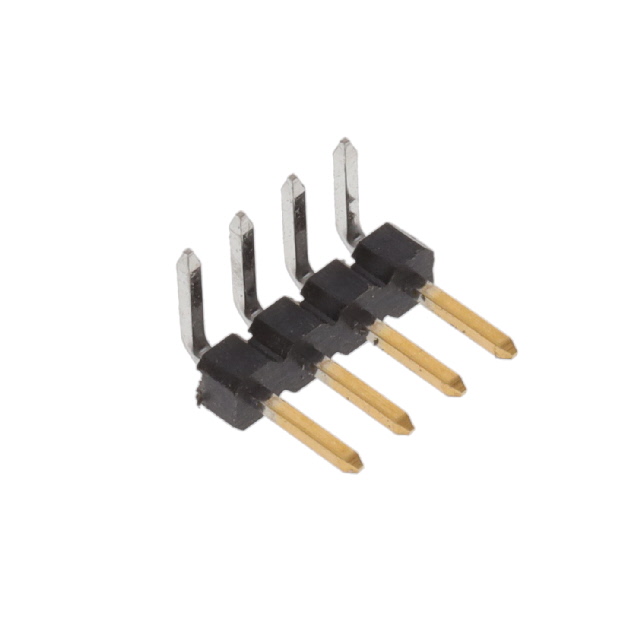

TE Connectivity Raychem Cable Protection 2842112-4	0.11 in	2.79 mm	1	2 A	0.079 in	2 mm	Solder	Gold	Through Hole Right Angle	Black	4 mm	0.157 in	UL94 V-0	Unshrouded	Square	Breakaway Header	30 Áin	0.76 Ám	Push-Pull	Tin	125 °C	-40 °C	Thermoplastic	125 VAC	Copper Alloy	1.5 mm	0.059 "	2 çm	78.7 çin	Male Pin	All	4

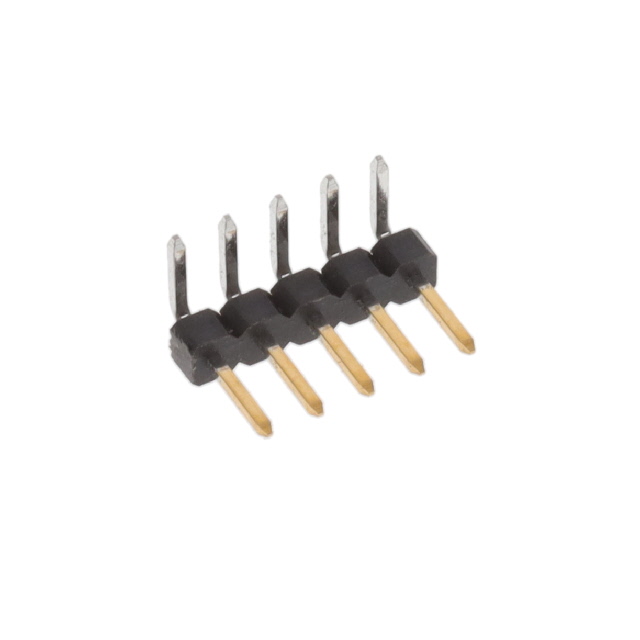

TE Connectivity Raychem Cable Protection 2842112-5	0.11 in	2.79 mm	1	2 A	0.079 in	2 mm	Solder	Gold	Through Hole Right Angle	Black	4 mm	0.157 in	UL94 V-0	Unshrouded	Square	Breakaway Header	30 Áin	0.76 Ám	Push-Pull	Tin	125 °C	-40 °C	Thermoplastic	125 VAC	Copper Alloy	1.5 mm	0.059 "	2 çm	78.7 çin	Male Pin	All

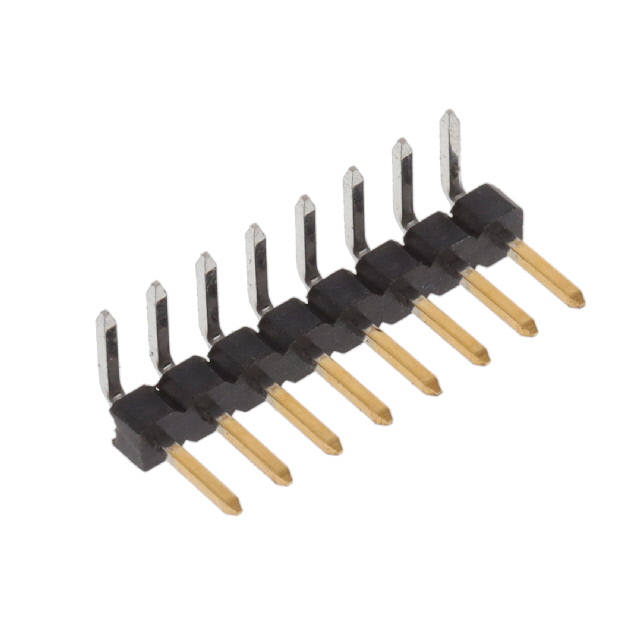

TE Connectivity Raychem Cable Protection 2842112-8	0.11 in	2.79 mm	1	2 A	0.079 in	2 mm	Solder	Gold	Through Hole Right Angle	Black	4 mm	0.157 in	UL94 V-0	Unshrouded	Square	Breakaway Header	30 Áin	0.76 Ám	Push-Pull	Tin	125 °C	-40 °C	Thermoplastic	125 VAC	Copper Alloy	1.5 mm	0.059 "	2 çm	78.7 çin	Male Pin	All	8

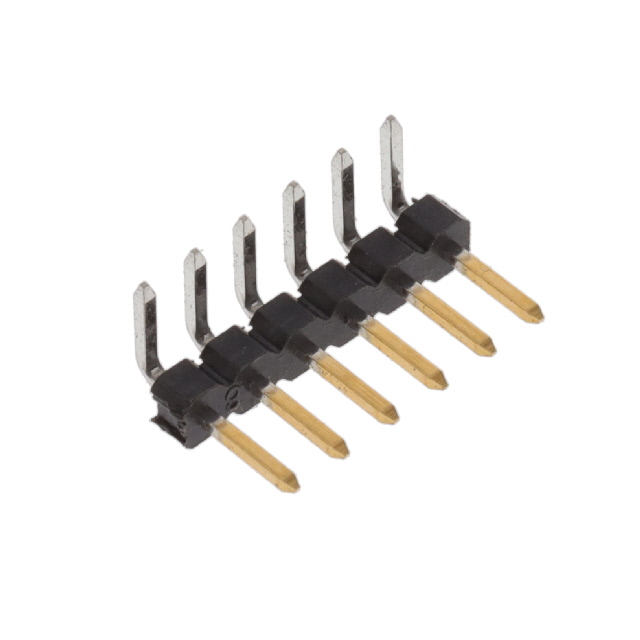

TE Connectivity Raychem Cable Protection 2842112-6	0.11 in	2.79 mm	1	2 A	0.079 in	2 mm	Solder	Gold	Through Hole Right Angle	Black	4 mm	0.157 in	UL94 V-0	Unshrouded	Square	Breakaway Header	30 Áin	0.76 Ám	Push-Pull	Tin	125 °C	-40 °C	Thermoplastic	125 VAC	Copper Alloy	1.5 mm	0.059 "	2 çm	78.7 çin	Male Pin	All	6
